CONNECTING ROD 87-06 BANSHEE, BRONCO AT-07306 YAMAHA ATV

YAMAHA
1987-2006 YFZ350 Banshee,

Connecting Conrod Rod Rebiuld kit BRONCO AT-97306

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

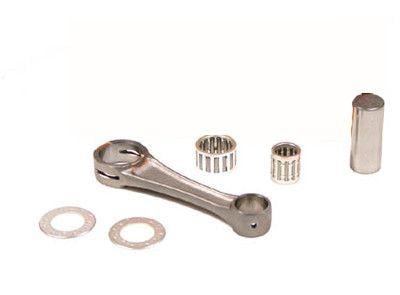

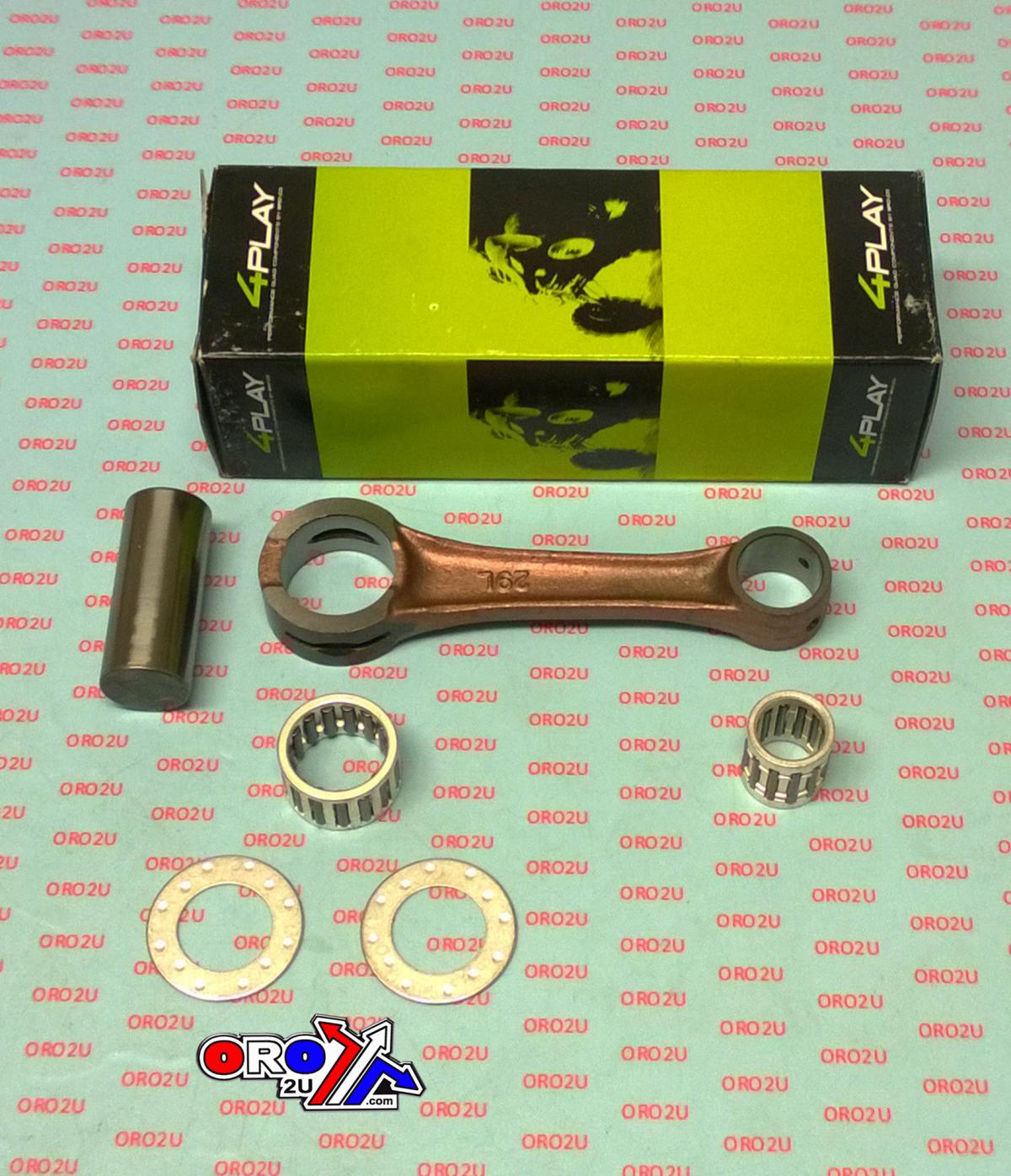

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

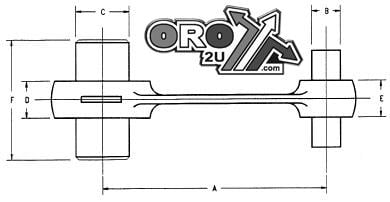

Center To Center (mm): 110
Small End Bearing (mm): 16x21x22.5
Small End Bore (mm): 21
Small End Width (mm): 18
Big End Bearing (mm): 22x29x17
Big End Bore (mm): 29
Big End Width (mm): 17
Big End Pin Diameter (mm): 22
Big End Pin Length (mm): 53
Washer Thickness (mm): 1.00

Cross reference numbers ONLY.
VESRAH VA-2008, 29L-11651-00-00, HOTROD 8121,
