Connecting Rod 83-04 KX500, Hotrod 8148 Kawasaki

A premium Hot Rods connecting rod kit designed specifically for Kawasaki KX500 models from 1983 to 2004. This kit provides exceptional durability and precision engineering to meet the demands of high-performance riding under heavy loads.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for maximum durability.
• Advanced design with strategically placed side scalloping and vent slots to minimize bearing race distortion at high RPMs.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior strength and longevity.
• Small ends feature double drilling for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for reduced friction and added lubricity.

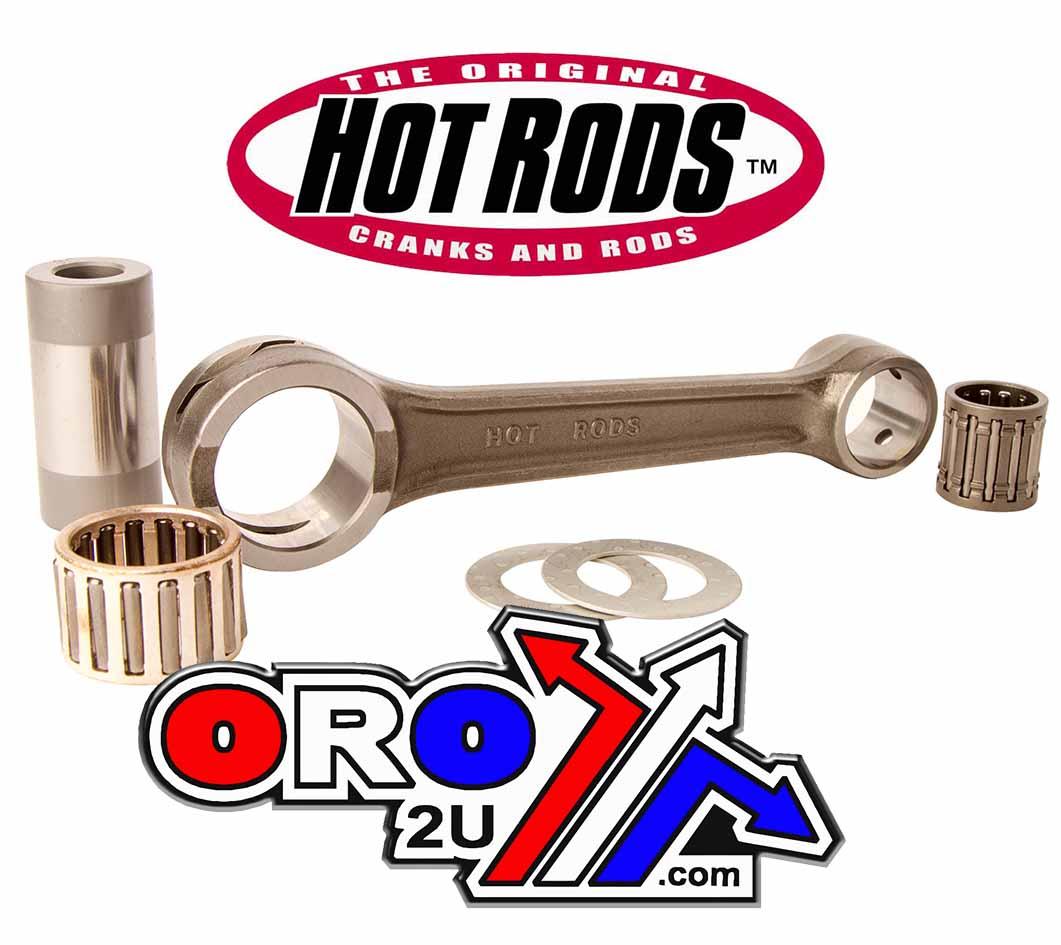

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

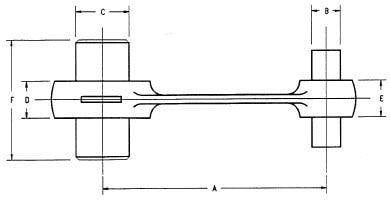

Technical Specifications:

• A (Center to Center): 145 mm
• B (Small End Bore): 19 mm
• C (Big End Bore): 26 mm
• D (Big End Width): 22 mm
• E (Small End Width): 22 mm
• F (Crank Pin Length): 54.5 mm

Cross-Reference OEM Part Numbers:

• Kawasaki: 13032-1184, 13044-4077, 13044-5048, 13044-5072, 13044-5076, 13044-5077
• Hot Rods: 8148

Compatibility:
Fits the following models:

Kawasaki:

• 1983-2004 KX500

Part Number: 56-115.HR
