CONNECTING ROD 54.2 PIN DT125 DT175, YAMAHA 3 WHEELER TRI-MOTO
£39.22 GBP
Taxes included.
YAMAHA
DT125 1978-1981,
DT125LC 1976,
RD125LC,
YT175, Tri Moto 1982 - 1983,
DT175 1976-1981,
DT175MX 1979-1981,
DT125-LC water cooled,
RT180A 1990-1998,
Connecting CONROD rod rebuild kit. PSYCHIC MX-09109
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
SIZE
| MM | |
| Centre 2 Centre | 105 |
| Small End Bearing | 16x20x20 |
| Small End Bore Ø | 20 |
| Small End Width | 18 |
| Big End Bearing | 22x28x16 |
| Big End Bore Ø | 28 |
| Big End Width | 16 |
| Big End Pin Ø | 22 |
| Big End Pin Length | 54.20 |
| Washer Thickness |
22x37x1 |

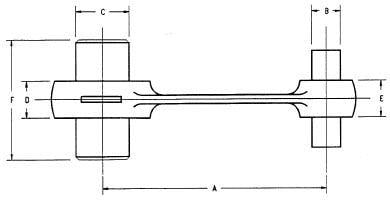

Please see the image Key. A=105, B=16, C=22, E=16, D=16, F=54.30 all size mm.
Specification:
TOP/BOTTOM BEARING
KV 16X20X19.6 W/NATURAL COATING,
KT 22X28X15.6MM COPPER COATING Material: SCM415
Part No. 56-247.DR (oro2u.com)
Cross reference numbers ONLY.
VESRAH VA-2003, MX-09109, [25V-11651-00-00 + 3M5-11681-00-00 + 93310-422C8-00 + 90209-22248-00 + 93310-216E1-00] L23-41030, MX-09109 1V0-11651-00 4Y2-11651-00
Application: YAMAHA 1976 DT125C, YAMAHA 1978-1981 DT125, YAMAHA 1976 DT175C,
