YAMAMA
YFZ350 Banshee (Long Rod) 1987-2006,,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

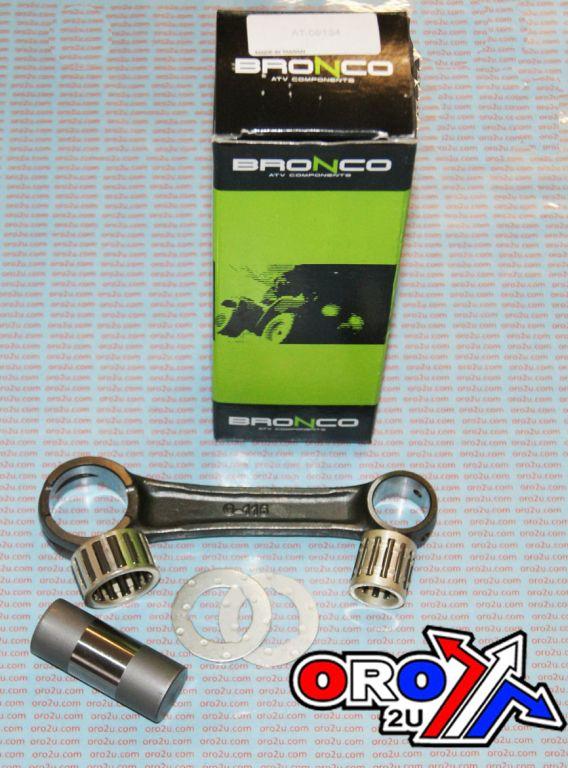

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 115 |
| Small End Bearing | 16x21x22.3 |
| Small End Bore Ø | 21 |
| Small End Width | 17.90 |
| Big End Bearing | 22x29x17 |
| Big End Bore Ø | 22 |
| Big End Width | 17 |
| Big End Pin Ø | 29 |
| Big End Pin Length | 52.70 |
| Washer Thickness | 22.20x36.90x1.00 |
Part No. 56-267.DR (oro2u.com)
Cross reference numbers ONLY.
+5mm long rod for use on 4011 & 4111 crankshafts YAMAHA: 29L-11651-00-00, HOTRODS 8158,
