CONNECTING ROD 1986-2000 SUZUKI DR200 12161-42A01
£46.90 GBP
Taxes included.

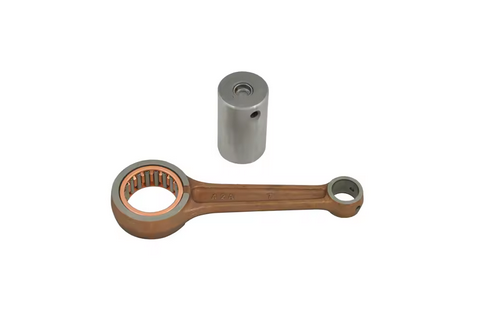

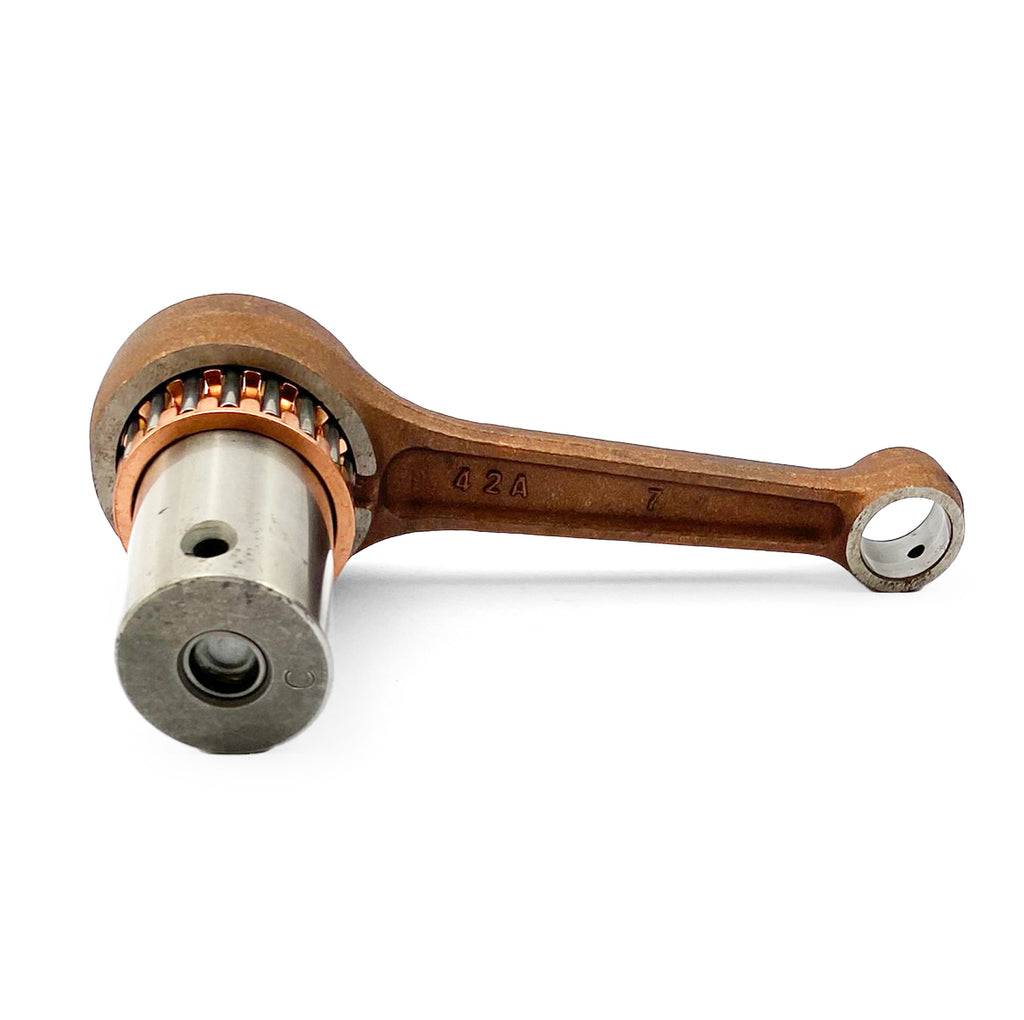

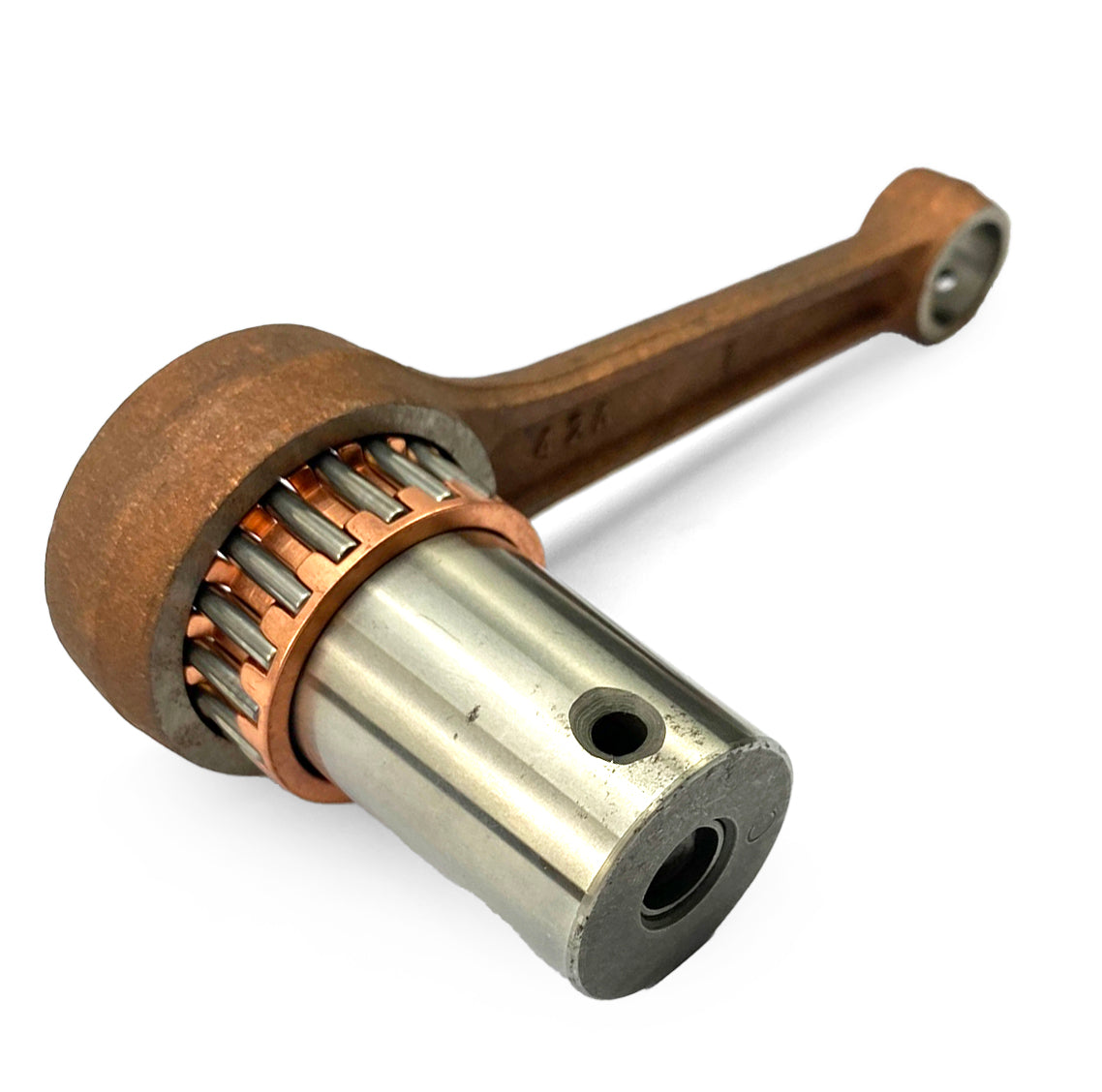

This connecting rod rebuild kit is designed for Suzuki DR200 series motorcycles, offering a durable and high-quality solution for engine maintenance and repair. Manufactured from certified chrome alloy steel, it meets or exceeds OE standards for strength and reliability.
Features:
- Heavy-duty OE replacement connecting rod for enhanced durability
- Constructed from SNCM220 certified chrome alloy steel for superior strength
- Crankpins made from hot-rolled ASTM steel and case-hardened for longevity
- Caged needle roller bearing design supports high RPM performance
- Bronze phosphor thrust washers with silver coating for added durability
- Complete rod assembly includes rod, crankpin, crankpin bearing, and top-end bearing (if required)
- Fully compatible with aftermarket and OE crankshafts
Specifications:
- Rod Length (Centre-to-Centre): 116 mm
- Crank Pin Length: 52.00 mm
- Crank Pin Diameter: 31 mm
- Small End Diameter: 16 mm
- Small End Thickness: 14 mm
- Big End Diameter: 31 mm
- Big End Thickness: 18 mm
- Washers: None
- Small End Bearing: None
Cross-Reference OEM Part Numbers:
- 12161-42A01 – Connecting Rod
- 09263-31008-0B0 – Roller Bearing
- 12210-42A01 – Crank Pin
Vehicle Fitments:
- Suzuki DR200 (1986–2000)
- Suzuki DR200SE (1986–2020)
- Suzuki Van Van 200 (2017)
- Suzuki DF200 (1996–2000)
