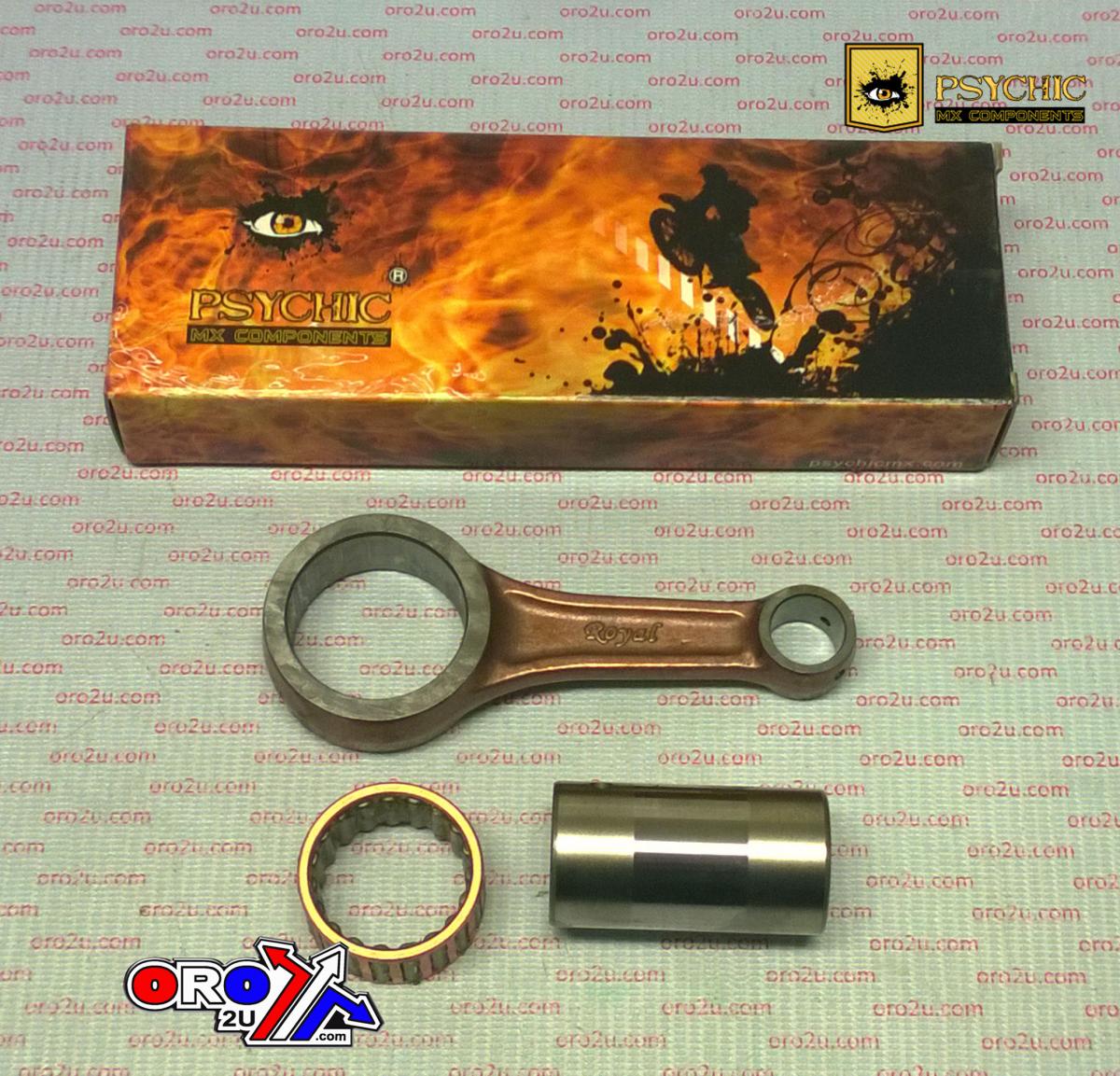

Connecting Rod 12-16 KX250F, Psychic MX-09017 Kawasaki Kit

Heavy-duty connecting rod rebuild kit designed for Kawasaki KXF250/KX250F (2012-2016) models. This high-quality OE replacement kit is built for durability and performance, including all necessary components for a complete rebuild.

Features:

• Manufactured from certified chrome alloy steel for exceptional strength.
• Crankpins made from hot-rolled ASTM steel and case-hardened for longevity.
• Advanced caged needle roller bearing design ensures high-RPM durability.
• Thrust washers are silver-coated and made from bronze phosphor for added lubricity.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220.

Specifications:

• Centre to Centre: 92.5 mm
• Small End Bearing: None
• Small End Bore Ø: 16 mm
• Small End Width: 15.00 mm
• Big End Bearing: 30x38x18.8 mm
• Big End Bore Ø: 38 mm
• Big End Width: 19 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 55.90 mm
• Washer Thickness: None

Cross-Reference OEM Part Numbers:
WOSSNER P4039, 13032-0721, 13035-0022, 13034-0019, 13032-0076, HOTROD 8690, ATHENA P40321037, RK-5212.

Vehicle Fitment:

• Kawasaki KX250F: 2012, 2013, 2014, 2015, 2016.

Part Number: 56-942.PS.B
