CONNECTING ROD 09-16 CRF450R, HOTRODS 8682 HONDA MX
£174.53 GBP
Taxes included.

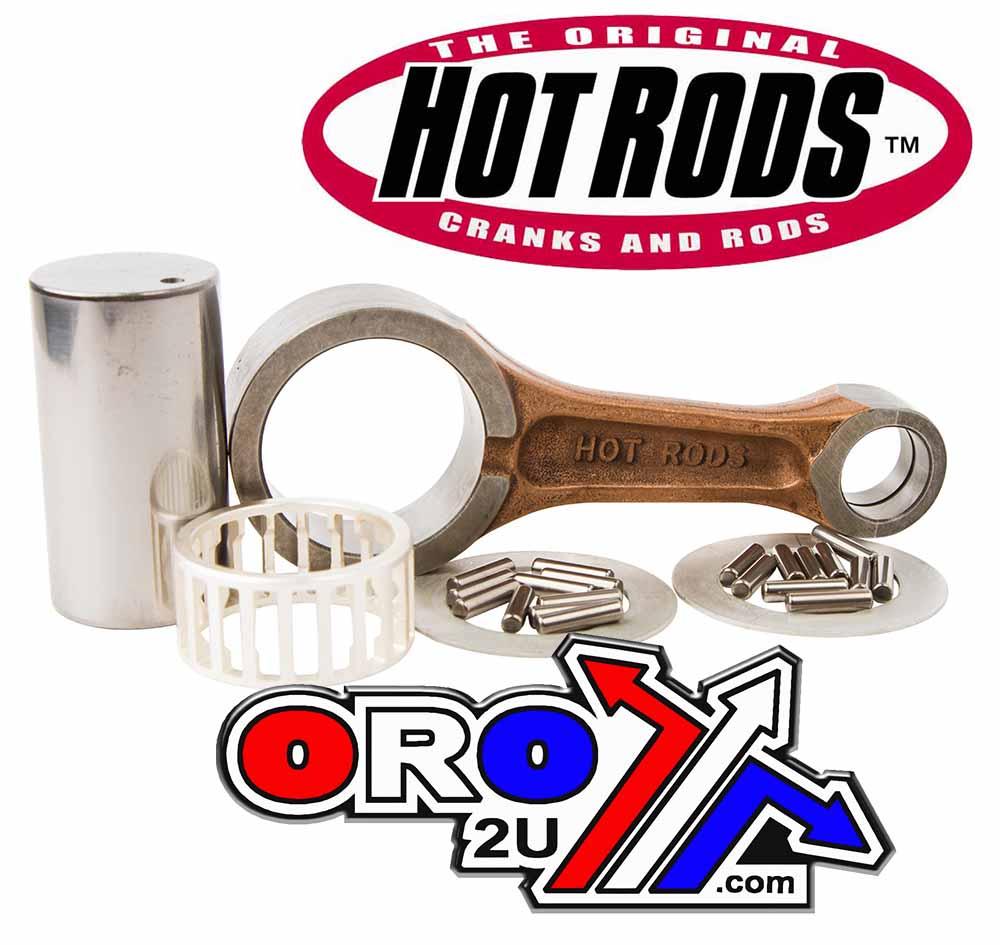

The Hot Rods Heavy-Duty Connecting Rod Kit (8682) is a premium replacement designed for Honda CRF450R models. Engineered with high-performance applications in mind, this kit offers exceptional strength, reliability, and longevity. It includes all necessary components for installation, ensuring efficient and thorough repairs or rebuilds.
Features:
- Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for maximum durability.
- Advanced big-end design with side scalloping and vent slots reduces high-rpm bearing race distortion.
- Double-forged rods ensure improved grain flow and consistent dimensions.
- Shot-peened and double-honed for superior performance under heavy loads.
- Double-drilled small ends enhance lubrication and cooling for wrist pin bearings.
- Silver-coated thrust washers and crank pin bearings improve lubricity.
- Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.
Cross-Reference OEM Part Numbers:
- Athena: P40321014
- Honda: 13000-MEN-A50 / 13000-MEN-A70
- Psychic: MX-09088
- Hot Rods: 8682
- ProX: 03.1409
- Wossner: P4027
Vehicle Fitments:
- 2016 Honda CRF450R
- 2015 Honda CRF450R
- 2014 Honda CRF450R
- 2013 Honda CRF450R
- 2012 Honda CRF450R
- 2011 Honda CRF450R
- 2010 Honda CRF450R
- 2009 Honda CRF450R
Part Number: 8682
