CONNECTING ROD 08-09 TRX700XX, HOT ROD 8679 HONDA
£85.75 GBP
Taxes included.

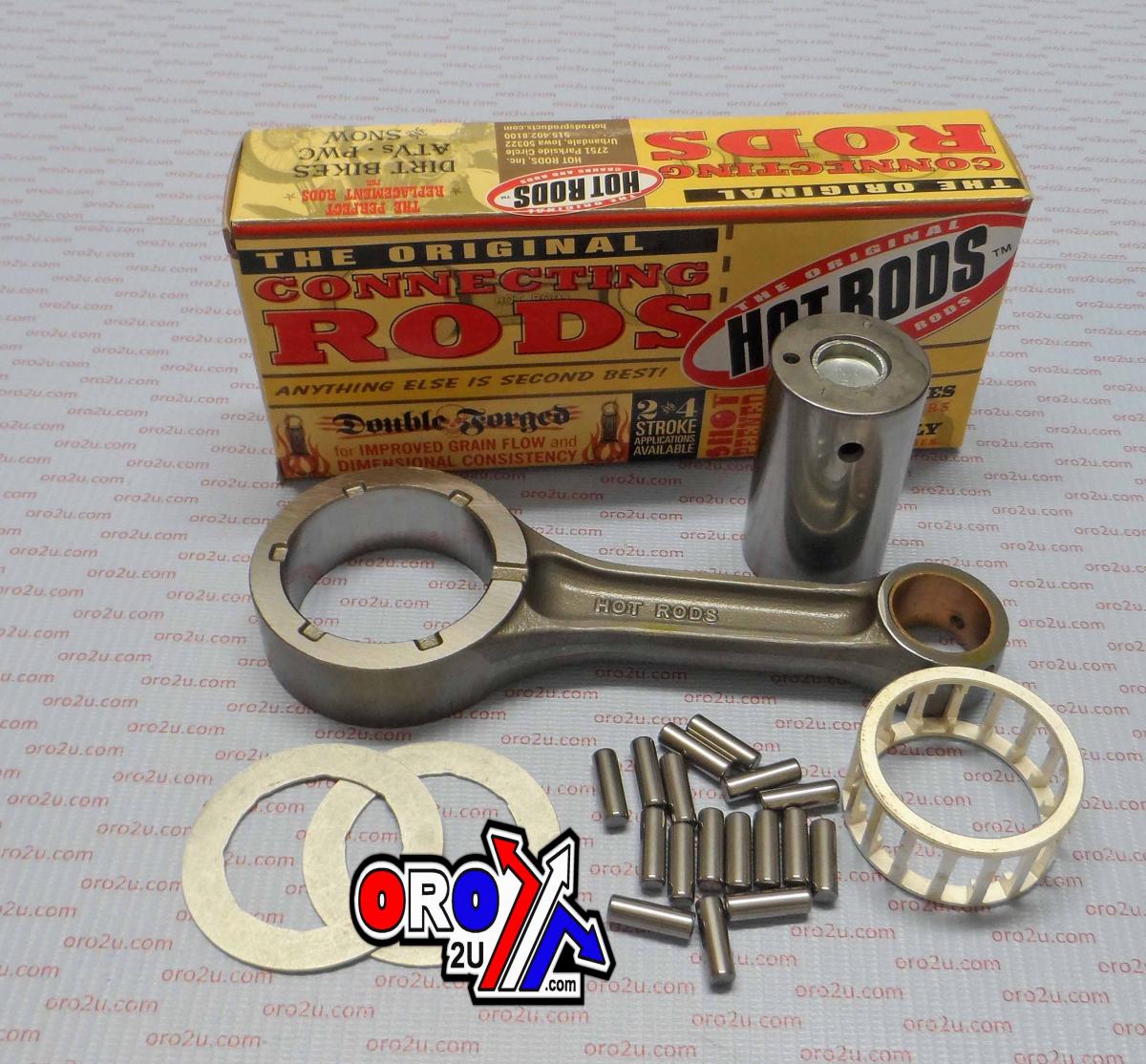

High-quality Hot Rods Connecting Rod Kit designed for Honda TRX700XX models (2008–2009). This complete kit provides reliable performance and durability for demanding applications.
Features:
- Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
- Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength.
- Advanced design minimizes high RPM bearing race distortion with strategically located side scalloping and vent slots.
- Double-forged rods improve grain flow and dimensional consistency.
- Shot-peened and double-honed rods for superior strength under heavy loads.
- Small ends are double-drilled for improved lubrication and cooling to the wrist pin bearing.
- Thrust washers and crank pin bearings are silver-coated for added lubricity and durability.
Technical Specifications:
- Big End Bore (mm): 50.00
- Big End Width (mm): N/A
- Center to Center (mm): 133.00
- Pin Diameter (mm): 38.00
- Pin Length (mm): 65.10
- Small End Bore (mm): 24.00
- Small End Width (mm): N/A
- Washer Thickness (mm): 1.00
Cross-Reference OEM Part Numbers:
- Hot Rods HR008679
- Honda 13000-HP6-A00
Part Number: 56-856.HR
