CONNECTING ROD 06-14 YFM700, HOTROD 8651 YAMAHA ATV
£204.59 GBP
Taxes included.
The Hot Rods Connecting Rod Kit (8651) is a heavy-duty OE-quality replacement for Yamaha Grizzly 700, Raptor 700, and Rhino 700 models. Manufactured in the USA with precision engineering, this kit is built to deliver superior performance and reliability, even under high-stress conditions. It includes all components needed for installation and is compatible with both Hot Rods and OE crankshafts.
Features:
- Made from certified 8620 AISI steel for exceptional strength and durability.
- Big end features side scalloping and vent slots to reduce high-rpm bearing race distortion.
- Crankpins are crafted from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
- Utilizes advanced caged needle roller bearing designs for longevity at high rpm.
- Thrust washers are bronze phosphor and silver-coated for enhanced lubricity.

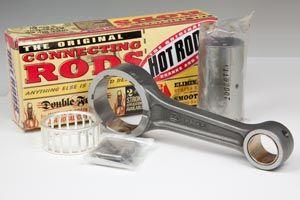

- Complete kit includes connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers.
- Compatible with both Hot Rods and OE crankshafts.
Technical Specifications:
- Big End Bearing (mm): 40x50x21.73
- Big End Bore (mm): 50.00
- Big End Width (mm): 21.95
- Center to Center (mm): 135.00
- Pin Diameter (mm): 34.00
- Pin Length (mm): 63.60
Cross-Reference OEM Part Numbers:
- Yamaha: 1S3-11651-00-00
- ProX: 03.2706
Vehicle Fitments:
- Yamaha Grizzly 700: 2007–2014
- Yamaha Raptor 700: 2006–2014
- Yamaha Rhino 700: 2008–2013
Part Number: 8651
