CONNECTING ROD 04-17 CRF250R, WOSSNER P4001 04-09 CRF250X

Connecting rod rebuild kit designed for Honda CRF250R (2004-2017) and CRF250X (2004-2009) models. This high-quality replacement kit is manufactured in Germany and engineered for strength, precision, and durability. It includes all necessary components for a complete rebuild and is built to perform under demanding conditions.

Features:

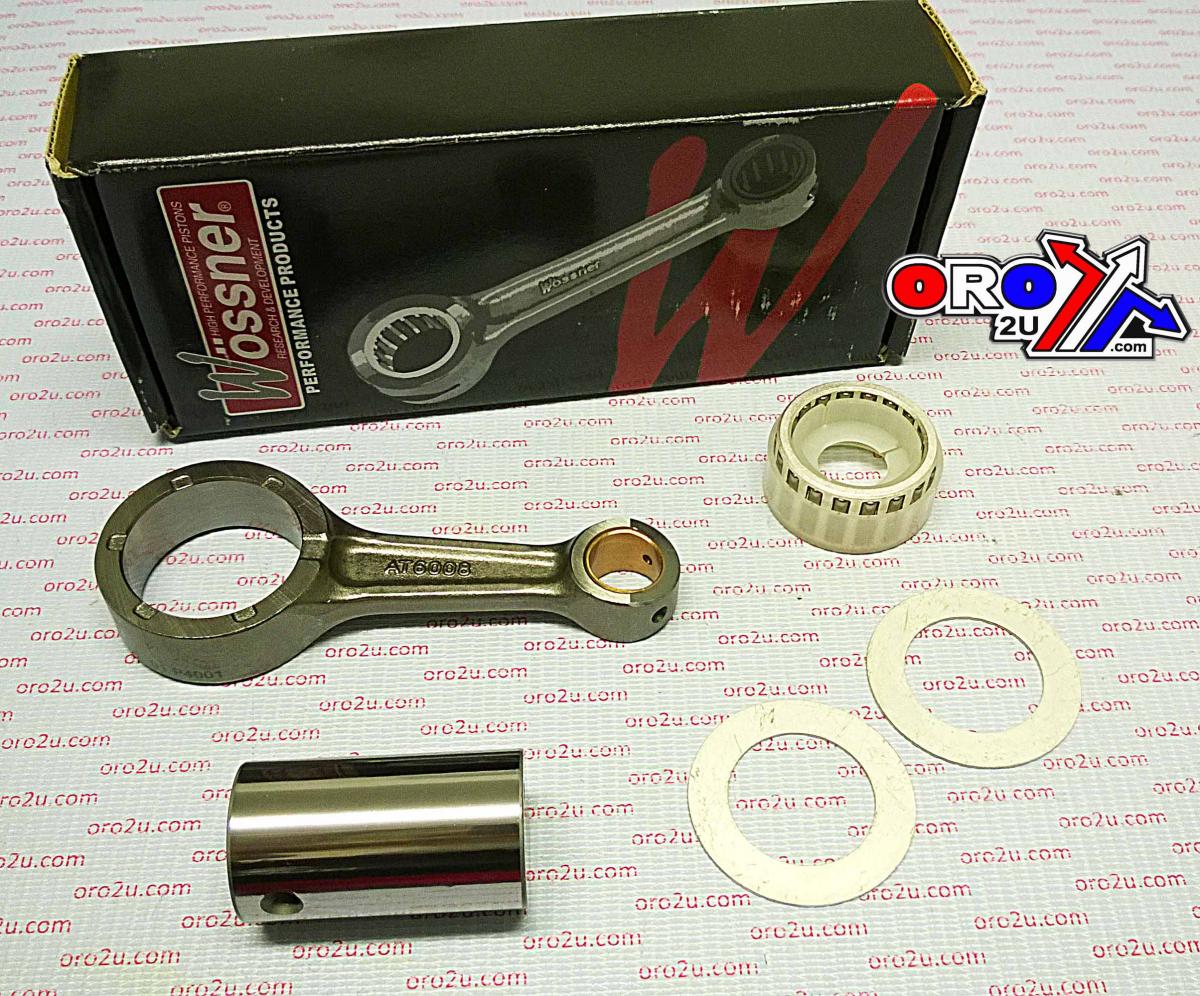

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Made from hot-rolled alloy steel and case-hardened to 58-62 Rc for enhanced durability.
• Advanced design with side scalloping and vent slots minimizes high-RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends feature double drilling for improved lubrication and cooling of the wrist pin bearing.
• Engineered to perform under high-stress conditions.

Specifications:

• Centre to Centre: 90.00 mm
• Small End Bearing: 16x18x15 mm
• Small End Bore Ø: 18 mm
• Small End Width: 15.00 mm
• Big End Bearing: 30x38x17.8 mm
• Big End Bore Ø: 38 mm
• Big End Width: 18.00 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 53.00 mm
• Washer Thickness: 1.00 mm

Connecting Rod Size (Dimensions in mm):

• A = 90
• B = 16
• C = 30
• D = 17.80
• E = 15
• F = 53

Cross-Reference OEM Part Numbers:
P4001, 13000-KRN-A60, 13000-KSC-A11, PROX 03-1334, HOTRODS 8616.

Vehicle Fitment:

• Honda CRF250R: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017.
• Honda CRF250X: 2004, 2005, 2006, 2007, 2008, 2009.

Part Number: 56-935.WO
