CONNECTING ROD 02-09 LT-A400, BRONCO AT-09197 SUZUKI ATV
£101.51 GBP
Taxes included.
SUZUKI
LT-A400 EIGER 2002-04 / 06-07
LT-A400 KING QUAD 2008-09
LT-A400F EIGER 4WD 2002-07
LT-A400F KING QUAD 2008-17
LT-A400FZ KING QUAD 2011-17
LT-A400 L3,L4 QUAD SPORT 2013-14
LT-A400F L3 4DW KING QUAD AUTO 2013
LT-A400F L4,L5 KING QUAD 2014-2017

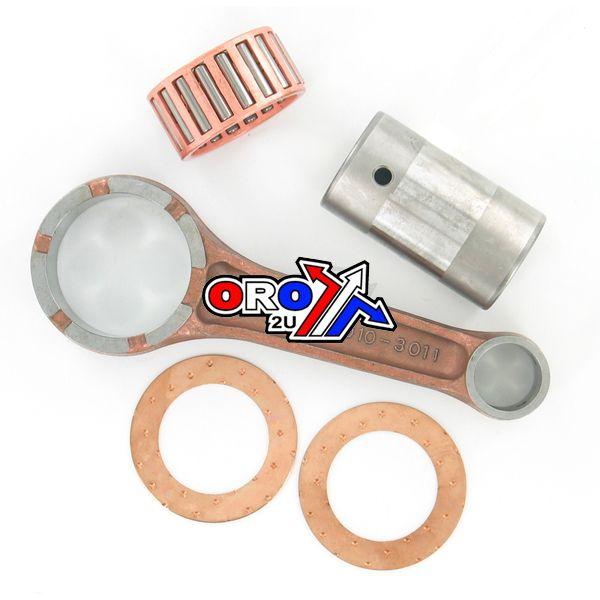

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09197
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 105.50 |
| Small End Bearing | None |
| Small End Bore Ø | 20 |
| Small End Width | 22 |
| Big End Bearing | 34x43x21.70 |
| Big End Bore Ø | 43 |
| Big End Width | 22 |
| Big End Pin Ø | 34 |
| Big End Pin Length | 59.75 |
| Washer Thickness | 34x52x1.00 |
Part No. 56-259.BR (oro2u.com)
Cross reference numbers ONLY.
VESRAH VA-3010 VA3010, 0403010,
ROD, CONNECTING 12161-14D00,
PIN, CRANK 12210-38F00,
BEARING (34X43X22) 09263-34005,
WASHER 09160-34003,
2004 Suzuki LT-A400 Eiger Automatic 2x4
2003 Suzuki LT-A400 Eiger Automatic 2x4
