CONNECTING ROD 00-06 TRX350, BRONCO AT-09172 CONROD KIT
£58.78 GBP
Taxes included.
HONDA
TRX350FE 2000-2006,
TRX350FW 2000-2006,
TRX350TE 2000-2006,
CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09172
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

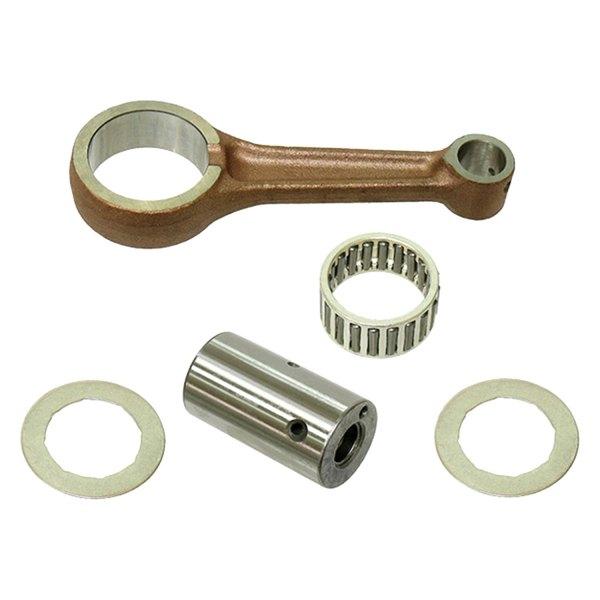

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- BRONCO Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please see image before ordering to avoid mistakes.
| SIZE | MM |
| Centre 2 Centre | 116 |
| Small End Bearing | None |
| Small End Bore Ø | 17 |
| Small End Width | 20 |
| Big End Bearing | 33x41x20 |
| Big End Bore Ø | 41 |
| Big End Width | 20 |
| Big End Pin Ø | 33 |
| Big End Pin Length | 60 |
| Washer Thickness | 33x51x1.00 |
Part No. 56-255.DR (oro2u.com)
Cross reference numbers.
VA-1018, AT-09172, HOTRODS 8698, [Rod for 13000-HN5-670 / 13000-HN5-M00]
