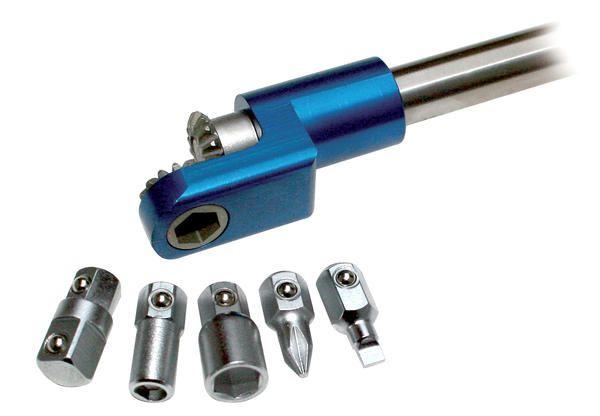

CARBURETTOR TOOL 90 DEGREE & BITS MOTION PRO 08-0229

The Motion Pro 90-Degree Carb Tool is engineered for precise adjustments in hard-to-reach areas, particularly for air/fuel mixture screws on multi-cylinder motorcycles.

Features:

• Precision-crafted from aircraft-grade aluminium and stainless steel
• Gear-driven 1/4" hex drive
• Detent action in the handle with laser-etched index marks for accurate adjustments (detent feature can be disabled if desired)
• Compatible with any 1/4" or 6 mm hex bits
• Maximum torque: 5.65 Nm
• Length: 445 mm
• Replaceable drive gears

Includes five 1/4" hex drive bits (each 12.7 mm long):

• Straight-slot
• Phillips
• D-shaped air/fuel mixture screw bit
• 6 mm hex jet bit
• 1/4" hex-to-1/4" drive bit

Specifications:

• Material: Aircraft-grade aluminium and stainless steel
• Drive: 1/4" hex
• Length: 445 mm
• Maximum Torque: 5.65 Nm

Cross-Reference Number:

• 08-0229

This tool is ideal for both professional mechanics and DIY enthusiasts, offering precision and ease of use for carburettor adjustments.
