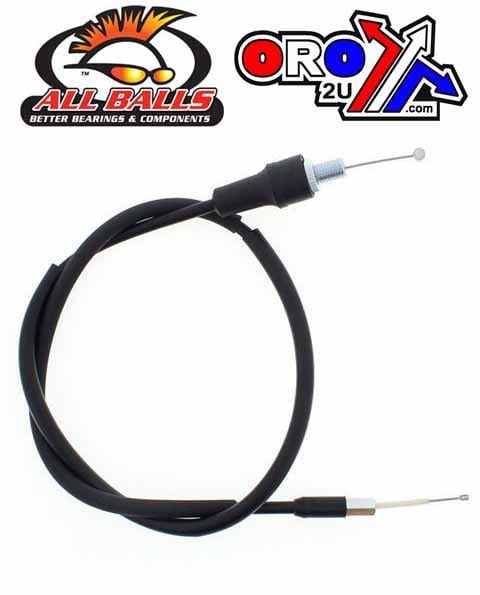

CABLE THROTTLE. 07-16 YFM700, ALLBALLS 45-1075 3B4-26311-20

Product: Cable, Black Vinyl, Throttle ALLBALLS 45-1075, Made in Japan

Features:

• Throttle cable assembly
• Black PVC outer jacket for maximum flexibility and durability
• Steel inner casing is tightly coiled for low compression ratios
• Pre-lubricated nylon inner sleeve guarantees smooth operation and long life
• All wire ends are bird-caged to terminal casting for superior pull-out resistance
• EPDM molded rubber components for high UV resistance and long life
• Injected-molded components are manufactured from high-strength POM material

Included Items:

• (1) Black throttle cable

Housing Length: 31 5/8 in.
Travel: 3 1/2 in.

Specifications:

• Housing: 6.0mm
• Inner wire: 1.5mm
• Nipple: 6x6mm / 4x3mm
• Overall: 904mm
• Free length: 88mm
• Housing length: 806mm

Cross Reference Numbers:

• 3B4-26311-20-00
• MOTION PRO 05-0352
• BRONCO 105-352

Compatibility:

Yamaha:

• Kodiak 700 4WD (2016)
• YFM550 Grizzly (2009-2013)
• YFM550 Grizzly EPS (2009-2013)
• YFM700 Grizzly (2007-2016)
• YFM700 Grizzly EPS (2008-2016)
