BOLT DISC YAMAHA FRONT & REAR, TITANIUM / / M6, 90149-06327-00 / 90151-06080-00, 90109-065G4-00 / 90105-06109-00
£25.08 GBP
Taxes included.
Factory Image Racing: Giving your machine the Factory look!

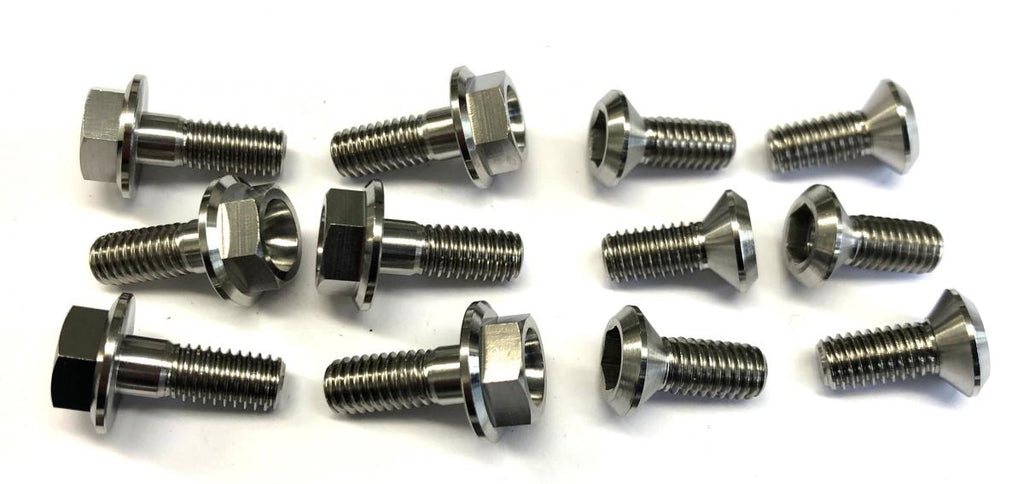

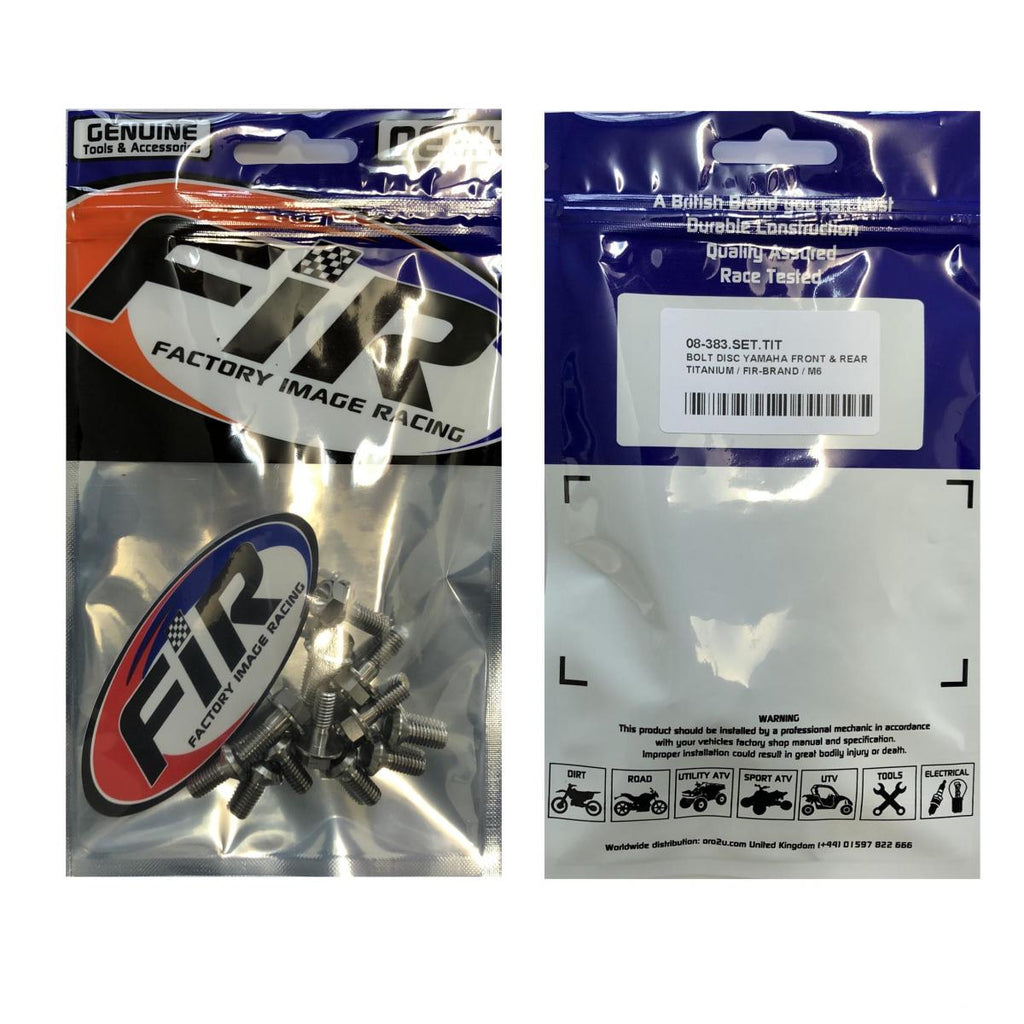

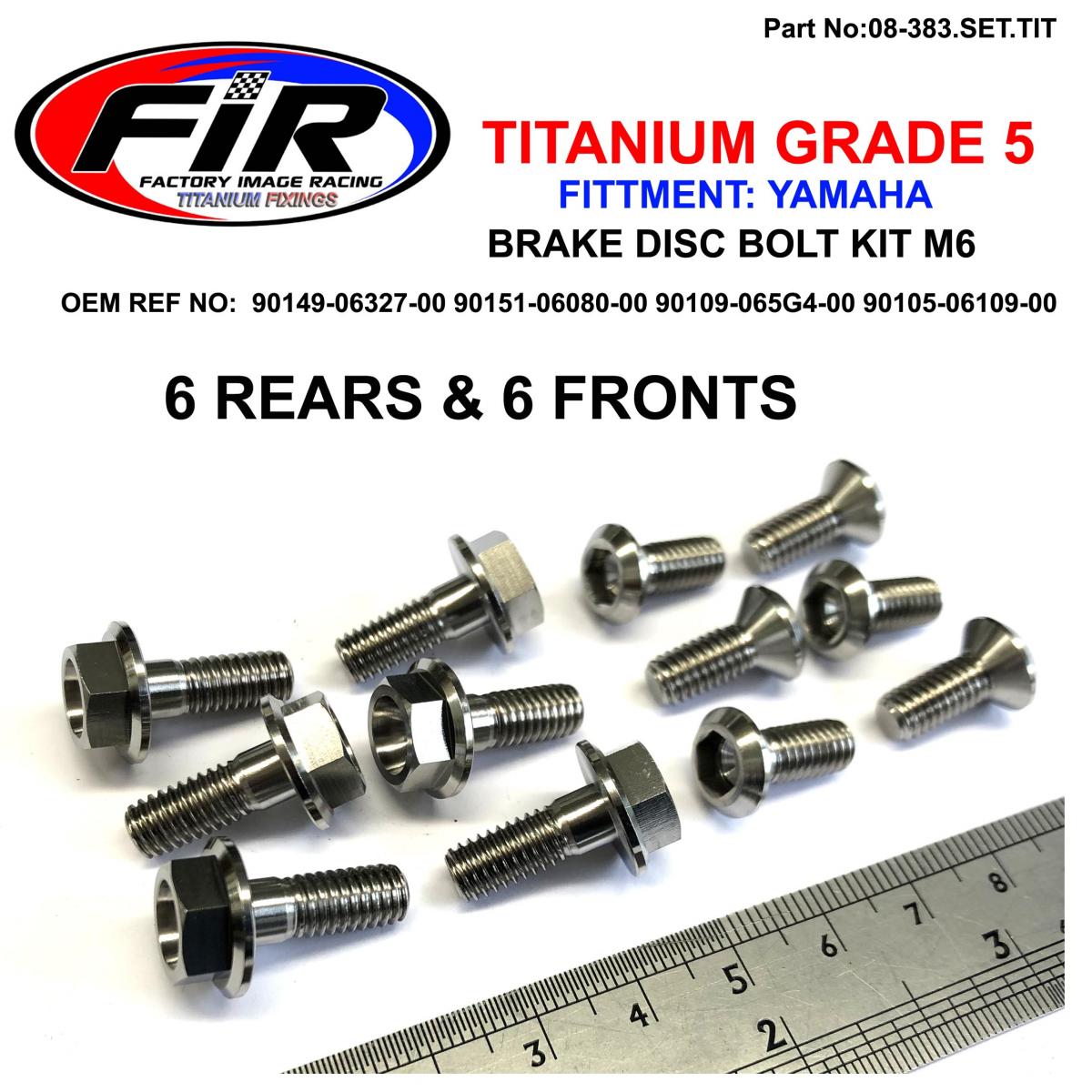

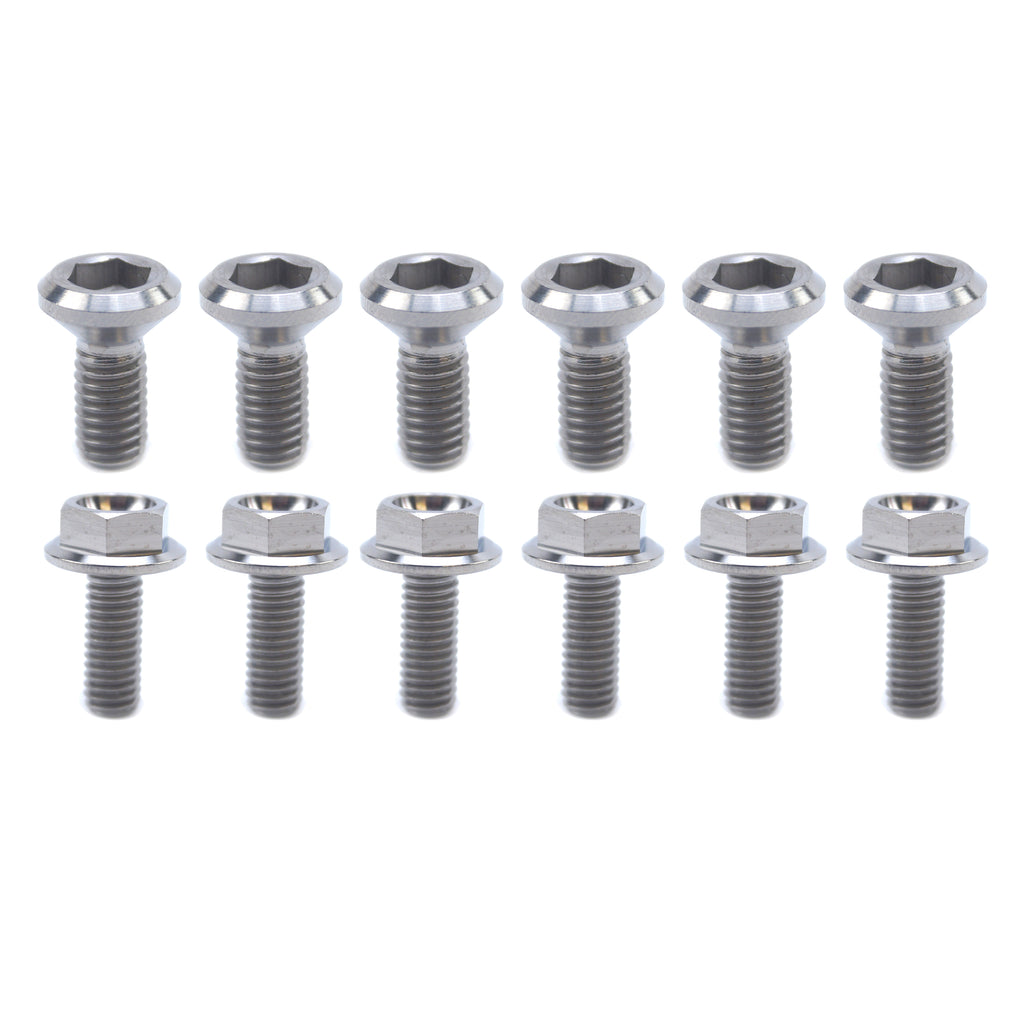

TITANIUM GRADE 5 BOLT DISC SET OF 12 [CSK & BOLTS]
Compatible with: Yamaha, GasGas, and others FRONT & REAR
CSK BOLT INFO (FRONT)
- Material: Grade 5 (6Al/4V) Titanium
- Pitch P: M6x1.00mm
- Overall Length L: 16.00mm
- Thread Length: 10.50mm
- Head Allen: #6
- Pack QTY: 6
- OEM Ref: 90149-06327-00 / 90151-06080-00
BOLT INFO (REAR)
- Material: Grade 5 (6Al/4V) Titanium
- Pitch P: M6x1.00mm
- Overall Length L: 16.00mm
- Thread Length: 11.00mm
- Head hex: 10mm Spanner
- Pack QTY: 6
- OEM Ref: 90109-065G4-00 / 90105-06109-00
Additional Information:
The Titanium bolts are Grade 5, which is the best grade to use. It's the alpha grade of Titanium and more expensive than other grades used in the motorcycle market. All FIR fixings are made from Grade 5.
