BAR WITH/PAD SILVER CR/KX +GRIPS, SILVER

Motorcycle 7/8" (22mm) Handlebar Silver Handle Bar + Foam Pad + Gray Grips for CRF YZF KXF KLX RMZ DRZ KTM Pit Dirt Bike Motocross

Specifications:

• Width (A): 28.75 inches (730mm)
• Height (B): 7.48 inches (190mm)
• Rise (C): 3.54 inches (90mm)
• Clamp Area (D): D1: 5.3 inches (135mm) D2: 3.94 inches (100mm) D3: 2.3 inches (59mm)
• Sweep (E): 2.16 inches (55mm)
• Control Area (F): 7.67 inches (195mm)
• Stiffener Length (G): 10 inches (255mm)
• Handle Bar Outer Diameter (H): 7/8 inches (22mm)
• Right Switch Mounting Hole Diameter (I): 5mm
• Distance of Hole to Bar End (J): 4.2 inches (120mm)
• Tubing Thickness (K): 3mm

Colors:

• Handle Bar: Silver
• Foam Pad: Black
• Grips: Gray

Materials:

• Handle Bar: Aluminum (high strength, pre-tensioned alloy, heat treated for maximum strength 6061-T6)
• Grip: Soft rubber (super soft, no smell, superior slip resistance)

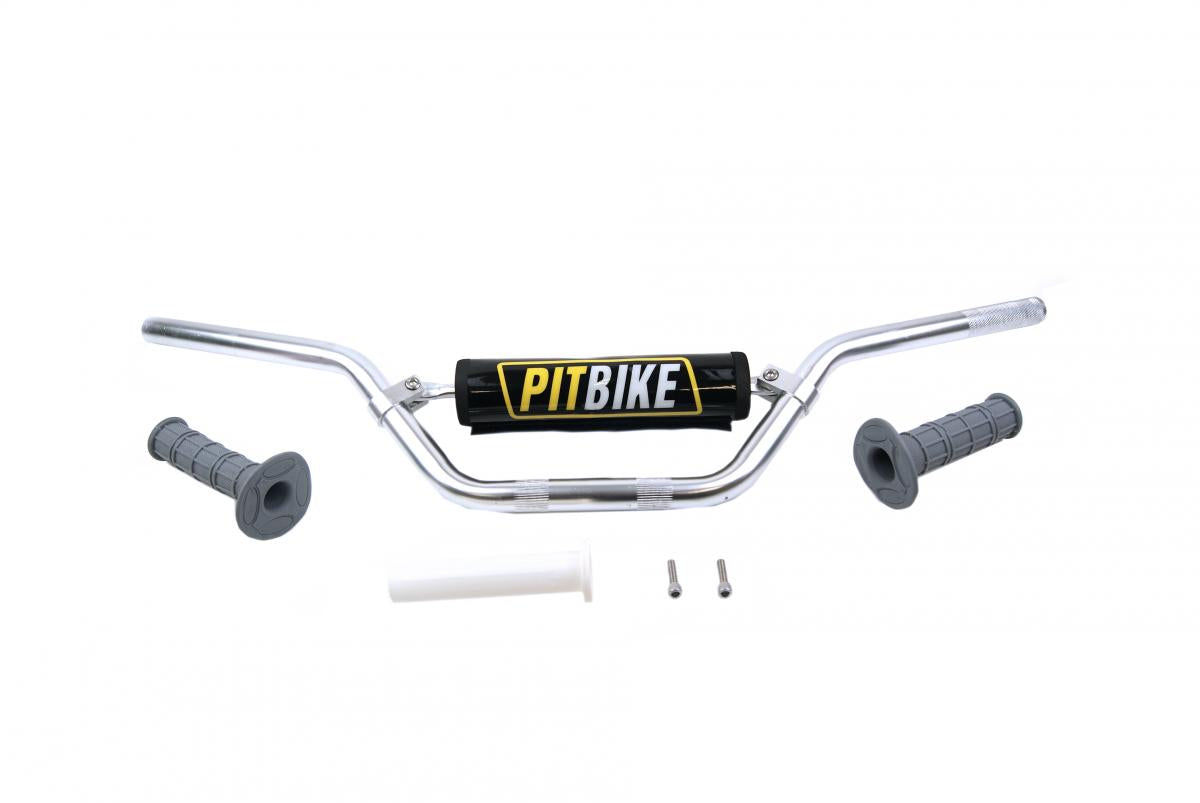

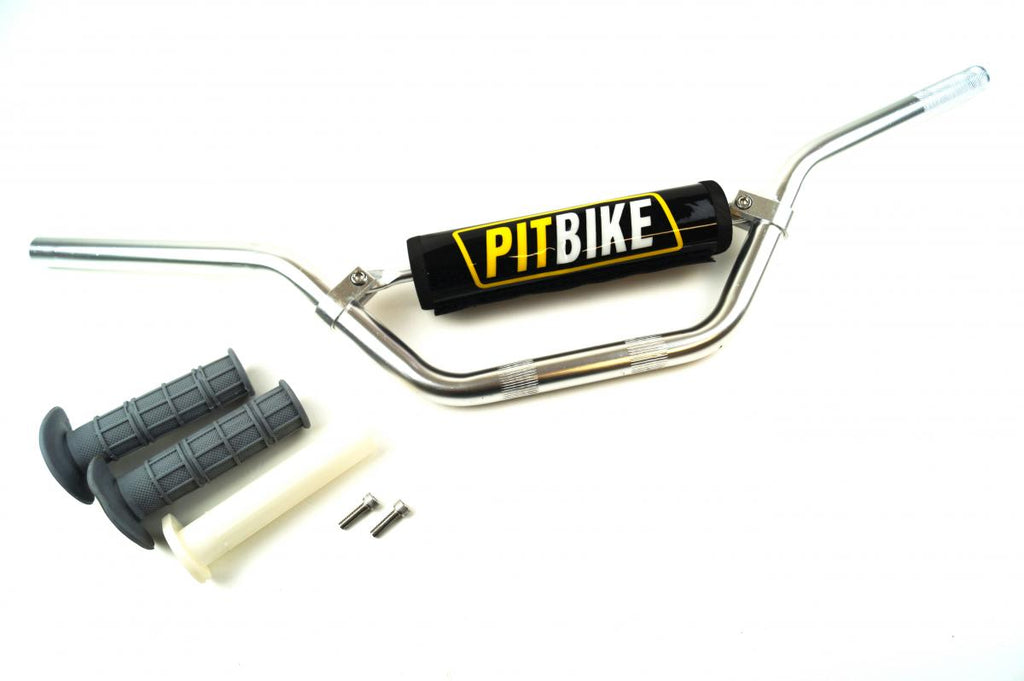

Package Includes:

• 1 x Handle Bar with Stainless Steel Bolts
• 1 x Foam Pad
• 1 x Pair Soft Grips
• 1 x Throttle Sleeve
• 2 x Stainless Steel Bolts as Spare Parts

Features:

• Made from high strength pre-tensioned alloy and heat-treated for maximum strength 6061-T6
• Top quality at the best price
• Hard anodized matte shot blast finish
• Universal Classic MX Medium bend based on KTM/CR/KX type, feels right on almost any dirt bike
• Factory Image bars come with bar pad and are available in 6 different colors: Silver, Red, Blue, Titanium, Black, and Gold
