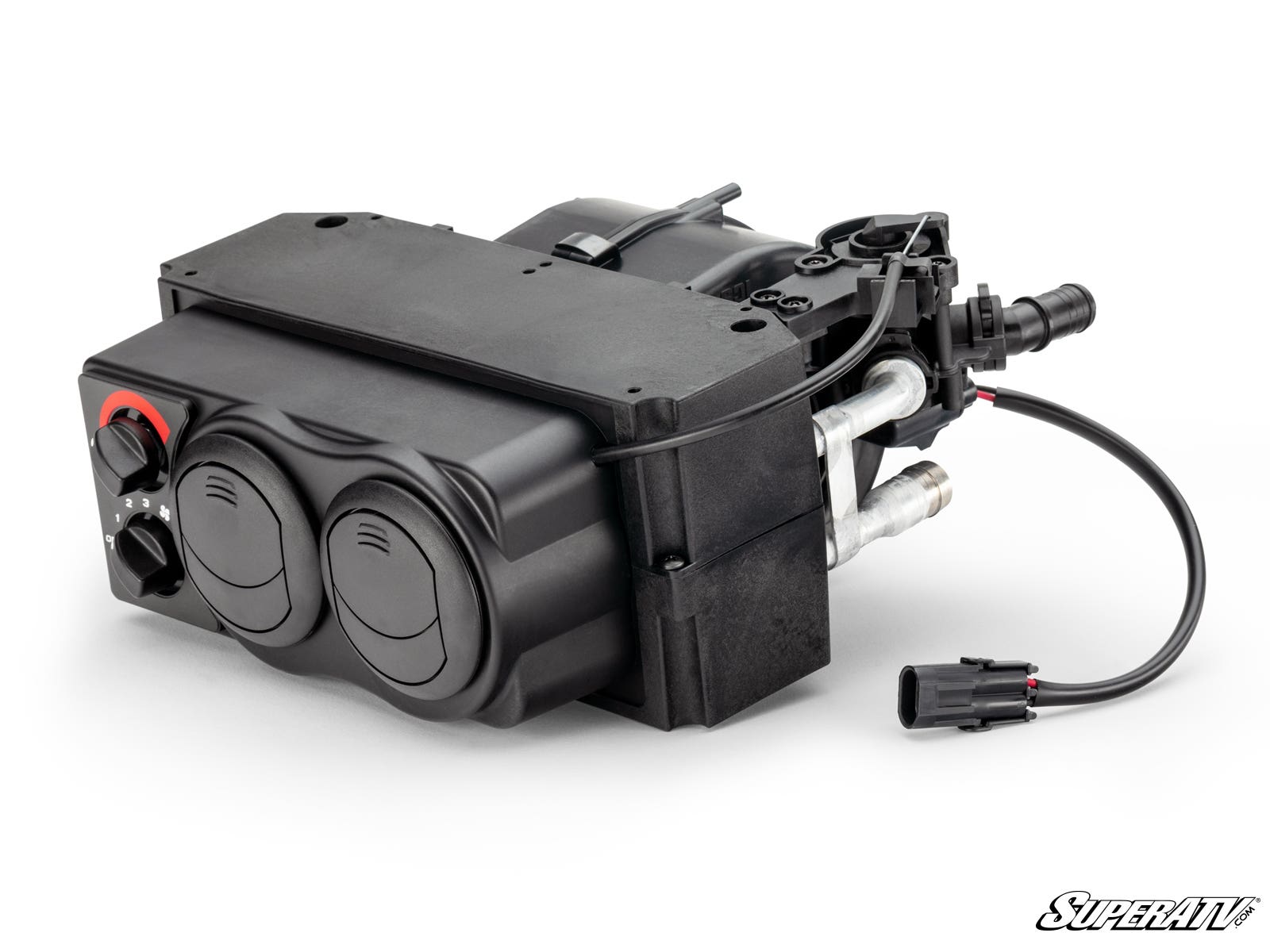

YAMAHA VIKING UNDER DASH CAB HEATER MATRIX BLOWER, SUPER ATV HTR-Y-VIK

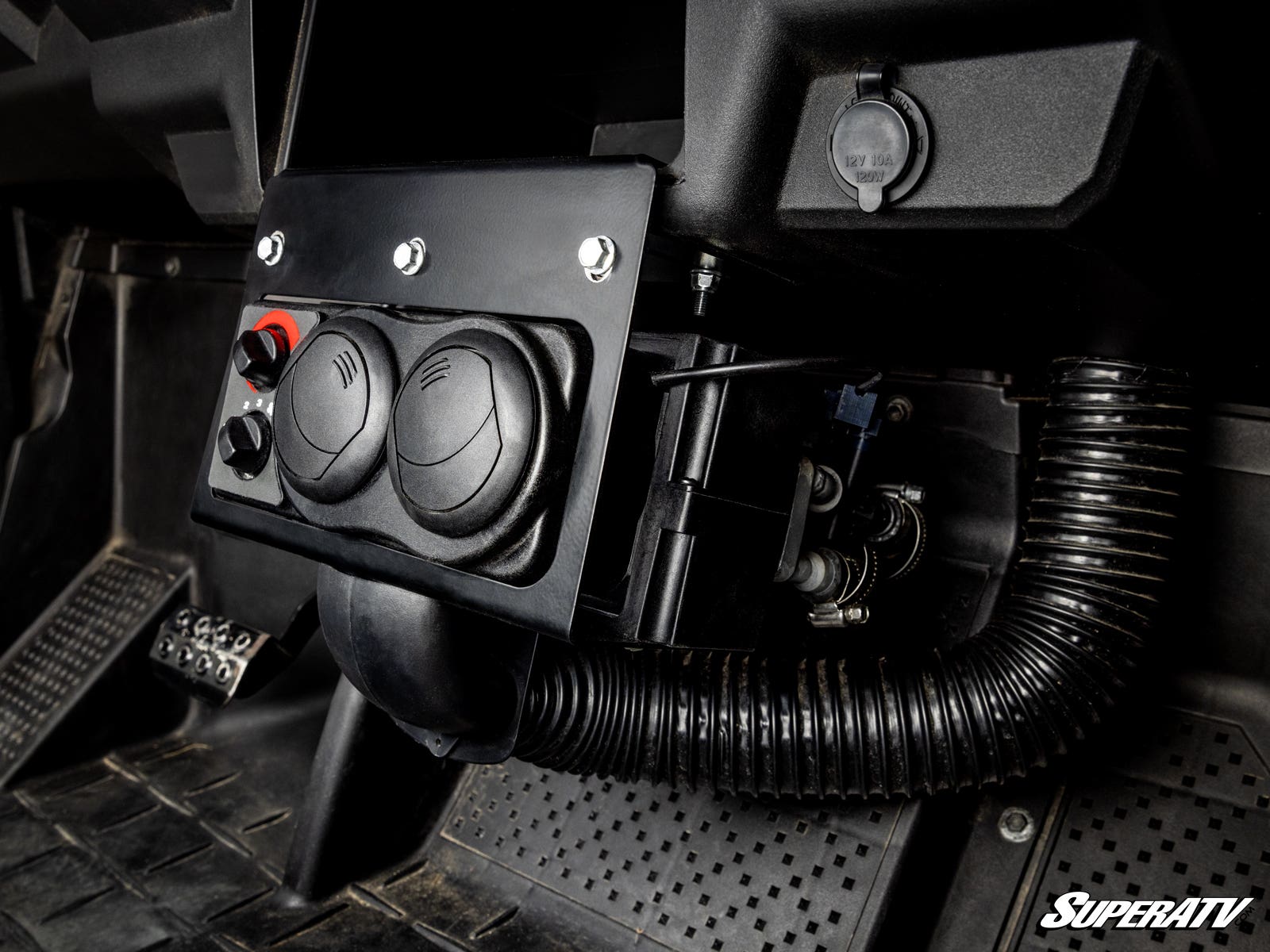

The under-dash cab heater matrix blower for Yamaha Viking (HTR-Y-VIK) delivers controlled cabin heating with adjustable temperature and fan speeds, 360° adjustable vents, and integrated defrost provision. It mounts under the dash, incorporates a built-in shutoff valve, and includes all necessary hardware for an easy install. High-grade hoses support reliable performance in harsh conditions, and optional accessories can speed up warm air delivery.

Features

• Adjustable temperature and fan speeds

• 360° adjustable vents

• Includes defrost hoses and vents

• Built-in shutoff valve

• Comes with all necessary hardware for an easy install

• Compatible with quick-start flow valve and idle flow pump to get heated air faster

Specifications

• Electrical draw: 3.4 amps at 13.7 volts

• Heating performance: up to 14,600 BTU at 135 CFM

• Hose rating: high-grade radiator hoses rated -40°F to 285°F

• Heater control box dimensions: 10" x 4.5" x 11.75"

Vehicle Fitments

• Yamaha Viking: 2014+

• Yamaha Viking EPS: 2014+

• Yamaha Viking EPS Ranch Edition: 2018+

• Yamaha Viking EPS SE: 2015+

• Yamaha Viking VI: 2015+

• Yamaha Viking VI EPS: 2015+

• Yamaha Viking VI EPS Ranch Edition: 2016+

• Yamaha Viking VI EPS SE: 2015–2016
