Works Cylinder Kit 09-12 CRF450 96, STD 10006-K01

Standard Bore Cylinder Kit (10006-K01) for Honda CRF450R (2009-2016) is a direct bolt-on replacement designed to match OEM specifications. With a bore size of 96mm and a compression ratio of 12.0:1, this kit is ready to install without the need for replating or additional machining. Engineered for durability and performance, it includes all components needed for a complete installation.

Features:

• Standard bore cylinder with 96mm diameter.
• Compression ratio: 12.0:1.
• Nickel Silicon Carbide plating for extended cylinder life.
• Honed to precise dimensions for easy piston installation.
• Direct bolt-on design, requiring no machining or replating.

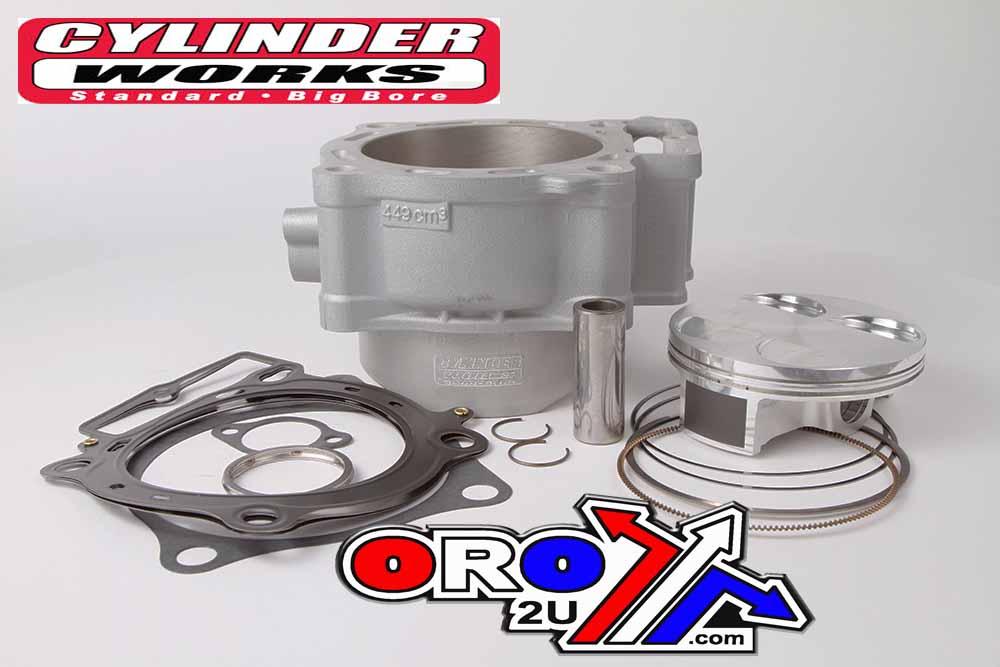

• Complete kit includes gaskets, cylinder, piston, rings, pin, and clips.

Specifications:

• Bore size: 96mm
• Compression ratio: 12.0:1
• Piston assembly: Vertex #23455

Included Items:

• Cylinder
• Piston
• Rings
• Top-end gaskets
• Pin and clips

Cross-Reference OEM Part Numbers:

• Honda: 06111-MEN-A30
• Honda: 12100-MEN-A30
• Honda: 12100-MEN-A50
• Honda: 12191-MEN-A31
• Honda: 12251-MEN-A31
• Honda: 13011-MEN-A30
• Honda: 13101-MEN-A30
• Honda: 13111-MEN-A30
• Honda: 13112-MEN-A30

Vehicle Fitment:

• Honda CRF450R (2009-2016)
