Waterpump Mechanical Seals 1985-2013 Suzuki Gsxr Gv 400-1300

This water pump seal is compatible with a wide range of Suzuki sportbike and cruiser models, including various GSX-R, Hayabusa, and GV series motorcycles. Designed as a direct OEM replacement, it features precision manufacturing using advanced materials for enhanced reliability and durability in engine rebuilds. The seal is built to exacting specifications and is intended to meet or exceed OEM quality standards.

Features

• Direct OEM replacement for a wide range of Suzuki models

• Engineered from high-tech materials for reliability and performance

• Meets or exceeds OEM specifications

• Designed for confident engine rebuilds

• Easy installation; professional installation recommended if unsure

Specifications

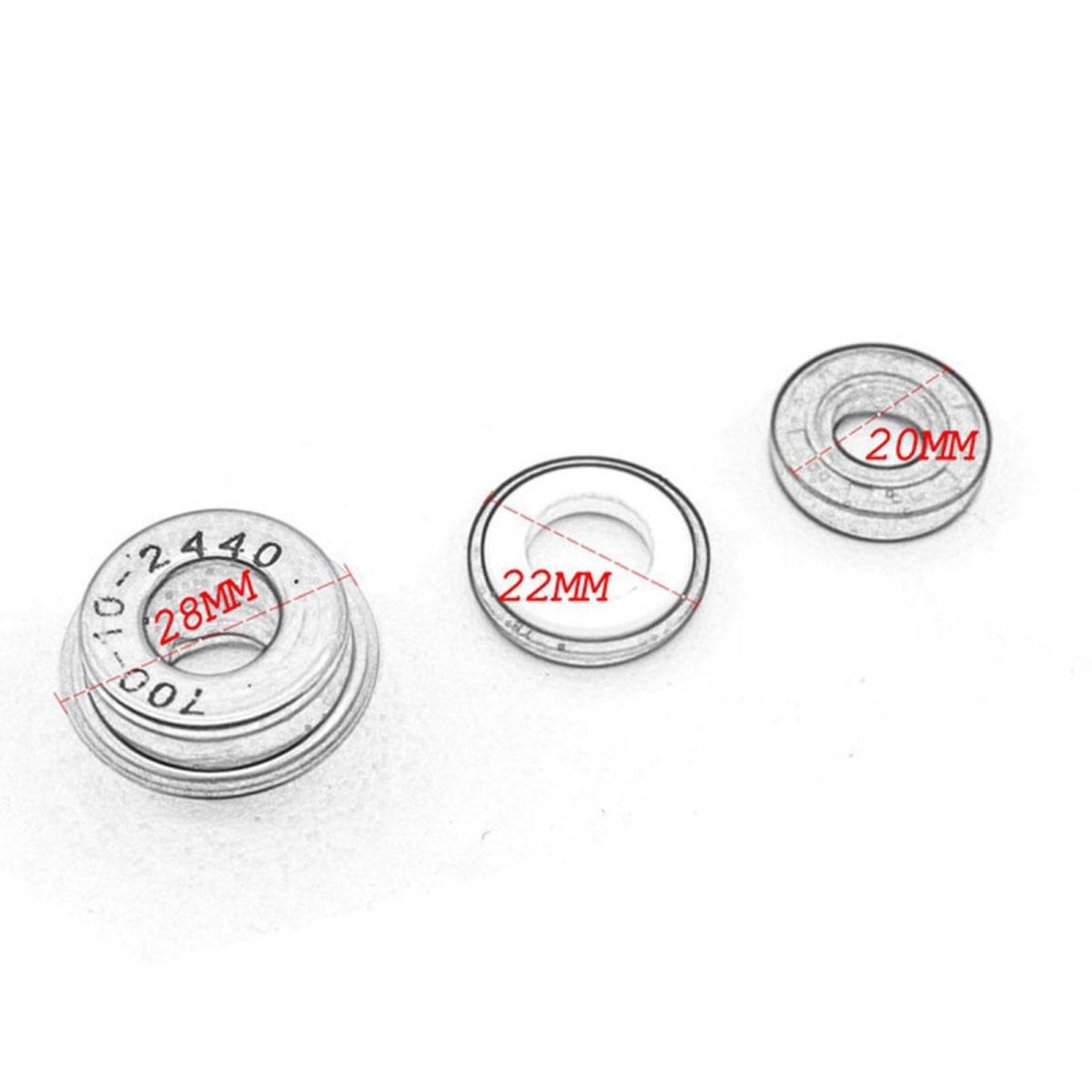

• Large diameter (L): Approx. 28mm / 1.10in

• Middle diameter (M): Approx. 22mm / 0.87in

• Small diameter (S): Approx. 20mm / 0.79in

Cross-Reference OEM Part Numbers

• 17470-02F10

• 17470-02F11

• 17470-14100

• 17470-46A01

• 17470-46A00

• 17470-02F00

• K&L 15-3405

• K&L 13-3404

Vehicle Fitments

• Suzuki GSXR400 GK76A 1990–1995

• Suzuki GSXR600 1997–2000

• Suzuki GSXR600 2001–2003

• Suzuki GSXR600U1/U2/U3 2001–2005

• Suzuki GSXR600 2004–2013

• Suzuki GSXR600 2011–2013

• Suzuki GSXR600WP 1992–1993

• Suzuki GSXR750W 1993–1995

• Suzuki GSXR750WS 1993–1995

• Suzuki GSXR750X 1996–1999

• Suzuki GSXR750 2004–2013

• Suzuki GSXR1000 2001–2013

• Suzuki GSXR1100W 1993–1998

• Suzuki GSX1300R Hayabusa 1999–2007

• Suzuki GSX1300RZ Hayabusa 1999–2007

• Suzuki GV700GL 1985–

• Suzuki GV1200 1985–1986
