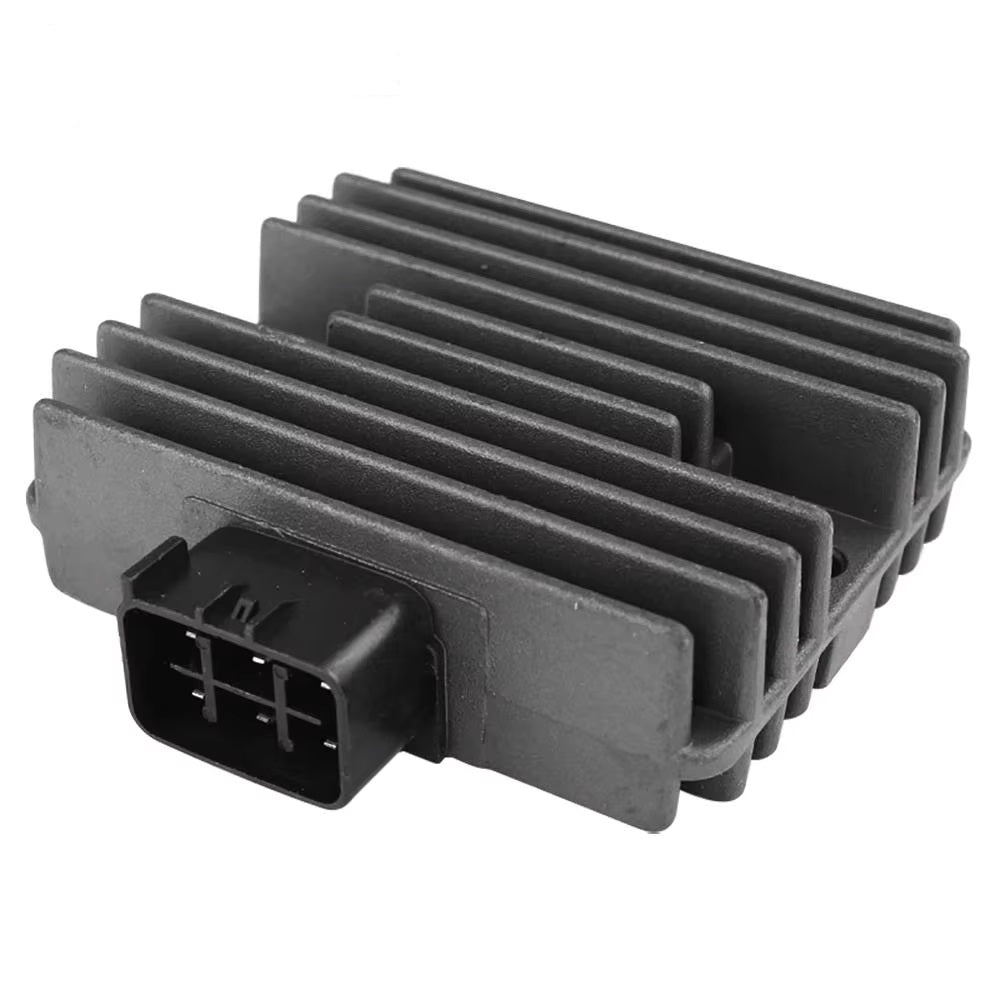

Voltage Regulator Yamaha XVS1100 WR250R YZF-R6 XT660Z YZF-R6 YP400 XV1700 XVZ1300 4XY-81960-00-00

This voltage regulator is a three-phase, full-wave rectifier designed to provide stable voltage output and protect the electrical systems of various motorcycles, ATVs, scooters, and utility vehicles. It serves as a direct OEM replacement and is built to meet or exceed original equipment standards.

Features

• Direct OEM replacement
• Meets or exceeds OEM quality standards
• Designed to handle increased power loads
• All are made to OEM specifications and match the original equipment in appearance
• All electrical parts are 100% fully factory tested before shipping
• Please check the image before ordering to avoid mistakes
• Note: No returns on electrical parts
• Easy to install but if unsure please use a professional

Specifications

• Voltage: 14V
• Current: 25A
• Connector: 6 Pin
• Type: Three-phase full-wave rectifier ACx3-DC
• Battery open circuit voltage: 14.5±0.5V
• Height: 28 mm
• Width: 80 mm
• Length: 90 mm
• Pitch: 67 mm

Cross-Reference OEM Part Numbers

• 4XY-81960-00-00
• 710001103
• 5BN-81960-00-00
• 32800-42F00
• 21066-1127
• 21066-0030
• 0824-037
• 0824-020

Vehicle Fitments

Yamaha:

• Yamaha YFM450 Grizzly EPS 4WD (2011–2012)
• Yamaha WR250X (2008–2011)
• Yamaha WR250R (2009–2020)
• Yamaha XVS1100 V-Star Classic (2003–2009)
• Yamaha XVS1100 V-Star Custom (2003–2009)
• Yamaha XVS1100 V-Star Midnight Custom (2005–2009)
• Yamaha XVS1100 V-Star Silverado (2003–2009)
• Yamaha XVZ1300 Royal Star Midnight Venture (2002–2008)
• Yamaha XVZ1300 Royal Star Tour Deluxe (2005–2010)
• Yamaha XVZ1300 Royal Star Venture (1999–2009)
• Yamaha XVZ1300 Royal Star Venture MM Ltd (2000)
• Yamaha Majesty YP400 (2005–2014)
• Yamaha Morphous CP250 (2006–2008)
• Yamaha TMax XP500 (2009–2011)
• Yamaha YFM Grizzly 660 (2002–2008)
• Yamaha YFM Raptor 700 (2006–2013)
• Yamaha YFM Grizzly EPS 450 (2011–2014)
• Yamaha YFZ R 450 / Limited Edition (2004, 2009–2013)
• Yamaha YXR Rhino 450 / 660 (2004–2009)

Arctic Cat:

• Arctic Cat H1 700 (2009–2011)
• Arctic Cat H1 650 (2005–2006)
• Arctic Cat H1 550 (2009–2011)
• Arctic Cat FIS 700 (2006–2008)
• Arctic Cat FIS H1 650 (2007–2008)
• Arctic Cat GT 450 / 550 / 700 / 1000 (2012)
• Arctic Cat Mud Pro 1000 (2010–2012)
• Arctic Cat Mud Pro 650 (2010–2011)
• Arctic Cat Mud Pro 700 (2009–2011)
• Arctic Cat Prowler 700 / 550 / XTZ 1000 / 650 (2006–2011)
• Arctic Cat TBX H1 650 (2007)
• Arctic Cat TBX H1 700 (2010)
• Arctic Cat TBX 650 (2009)
• Arctic Cat TRV 450 / 1000 / 400 / 550 / 700 / 500 / 650 (2007–2015)
• Arctic Cat Thundercat 950 (2008–2010)
• Arctic Cat XR 500 (2015)
• Arctic Cat XT 500 / 550 / 1000 (2013–2014)

Can-Am:

• Can-Am Outlander 330 / 400 / 500 / 650 / 800 / 1000 (2003–2017)
• Can-Am Outlander Max 800 (2008–2012)
• Can-Am Renegade 500 / 800 / 1000 (2008–2015)

Honda:

• Honda TRX FA / FGA 500 (2001–2004)

Kawasaki:

• Kawasaki KAF Mule 3000 620 (to 2008)
• Kawasaki KRF Teryx 750 (2008–2013)
• Kawasaki KVF Brute Force 650 / 750 (2005–2013)

Suzuki:

• Suzuki LT-A KingQuad 400 / 450 / 500 / 700 / 750 (2006–2014)
• Suzuki LT-A Vinson 4WD 500 (2002–2007)
• Suzuki LT-F KingQuad 400 (2008–2013)
• Suzuki UH A 200 (2014–2017)
