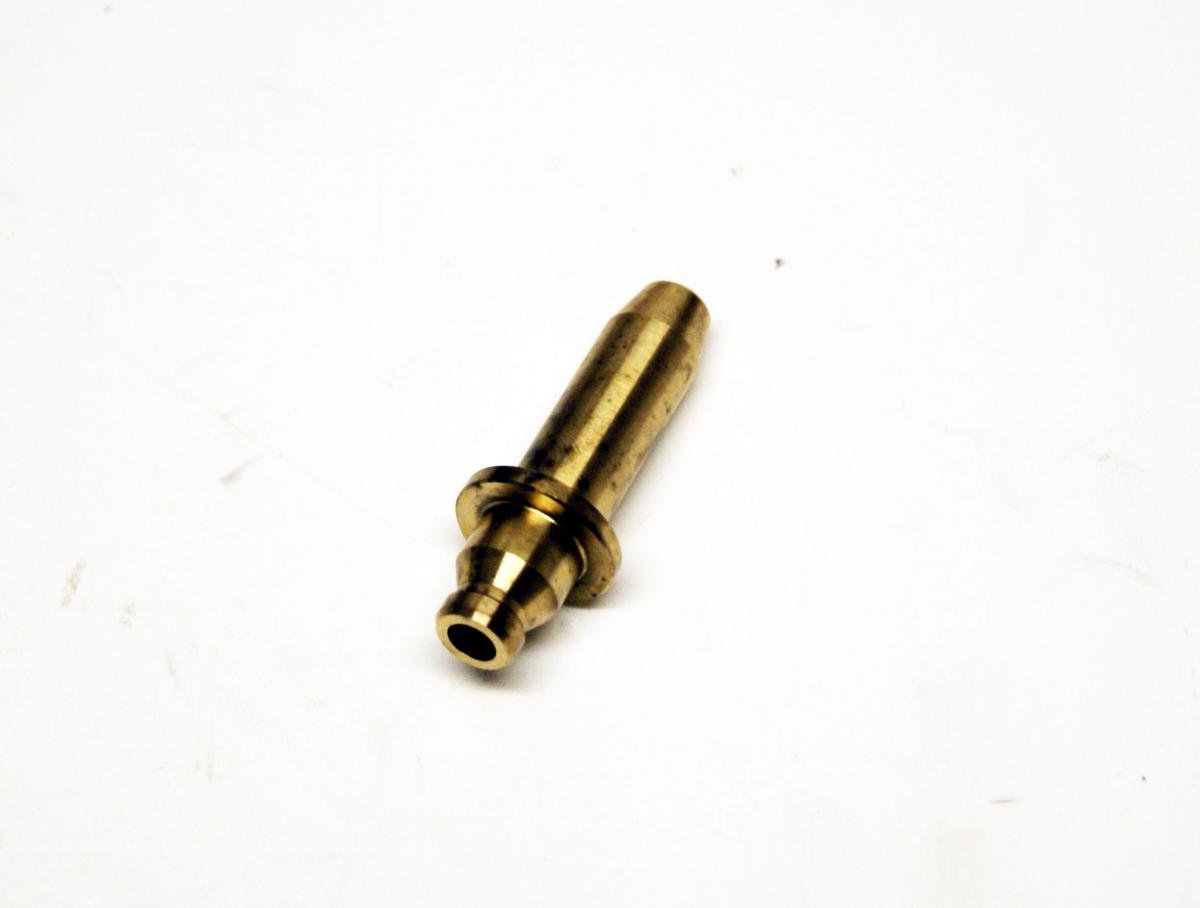

VALVE GUIDE INTAKE/EXHAUST, KIBBLEWHITE 30-3120, Honda® TRX 400EX 1999-2014 Honda® TRX 400X 2009-2014 Honda XR 400R RFVC 1996-2004
£32.82 GBP
Taxes included.
Guide, C630, IN/EX STD,
Various Honda® Applications
Honda TRX 400EX 1999-2014
Honda TRX 400X 2009-2014
Honda XR 400R RFVC 1996-2004
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
KIBBLEWHITE 30-3120
| KPMI® Guide Sizing Tool Flyer Download | Click Here |
| KPMI® Seal Catalog Download | Click Here |
| Quantity | Pkg. of 1 |
| Material | C630 Bronze |
| Type | Intake / Exhaust |
| Outside Dia.: (G) | 0.4355 / Std. |
| A | 0.550 |
| B | 0.645 |
| C | 1.020 |
| D | 1.300 |
| E | 0.715 |
| F | 0.2150 |
