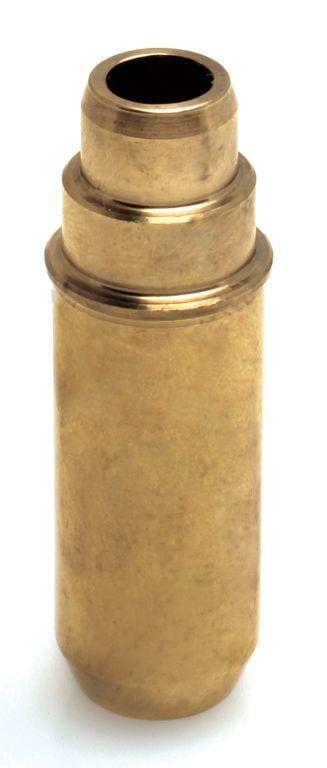

Guide, C630, IN/EX STD, Various Husqvarna® Applications

Husqvarna
350 1991-00,
410 1991-00,
510-610 1983-01,

Excluding TE410E 1999

Intake/Exhaust - G (Std. 0.4750 Inc.) C630 Bronze 93-93000
Dimensions:

A. 0.430 (10.93mm)
B. 0.465 (11.82mm)
C. 0.970 (24.65mm)
D. 1.110 (28.21mm)
E. 0.510 (12.96mm)

We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Part No. 65-900+000 (oro2u.com) Valve Guides STD.
