TOP END PISTON KIT 95-06 KAWASAKI KDX 200 67mm 1.0mm OVER VINTCO KTK14-1.0

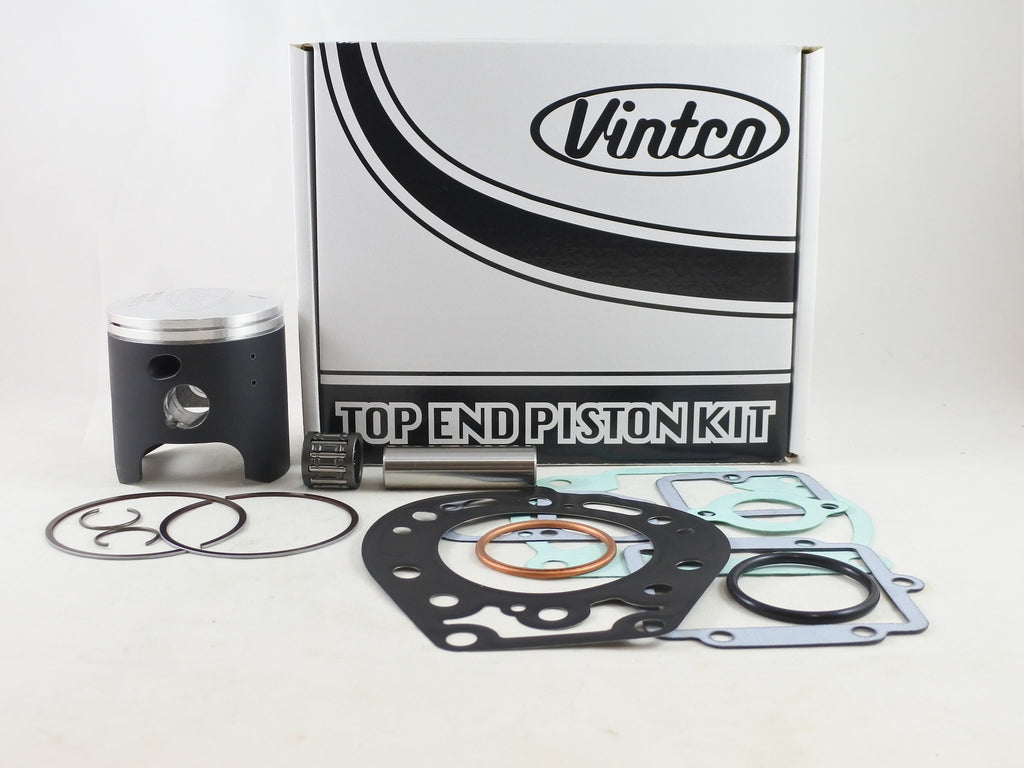

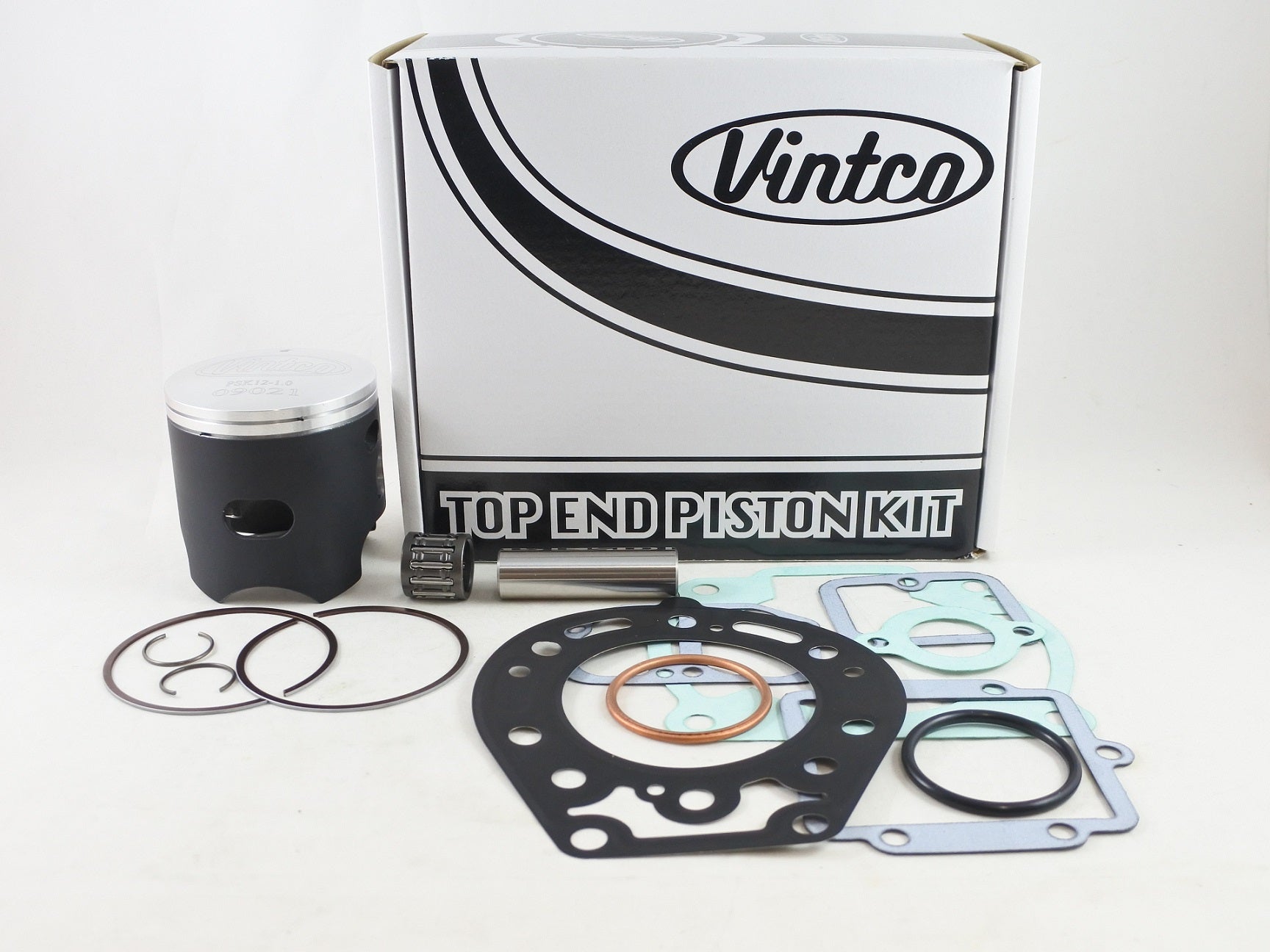

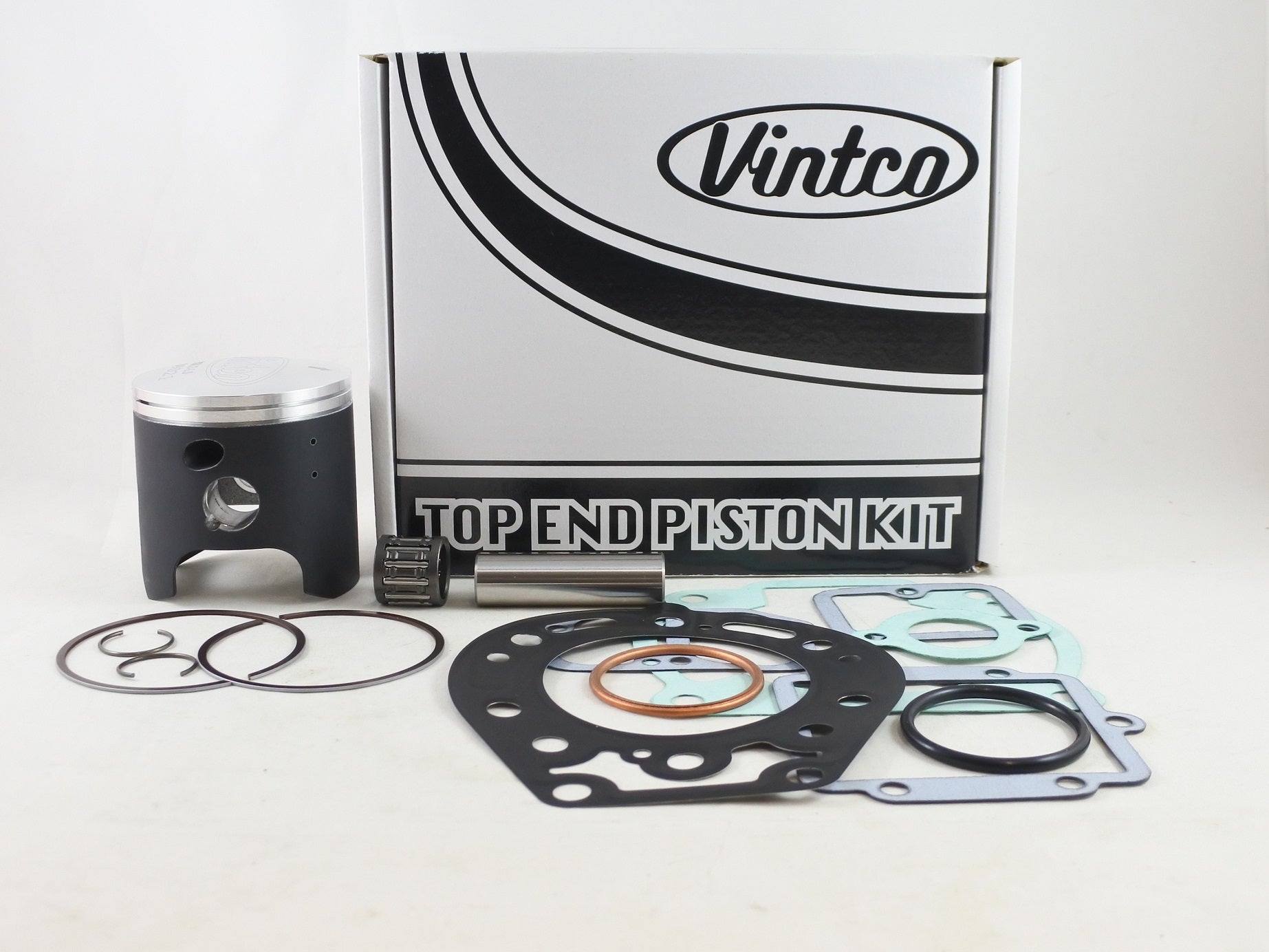

This top end piston kit is designed for 1995-2006 Kawasaki KDX200 models and includes a 67 mm piston in 1.0 mm oversize, together with the related gaskets, exhaust seals and wrist pin bearing required for a top end rebuild. The kit includes a forged piston made in Germany with MOS2 coating for running-in and is priced at a 10% saving compared with buying the items individually.

Features

• Complete top end piston kit
• Includes forged piston
• MOS2-coated piston for running-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes two exhaust pipe O-rings
• Includes cylinder cover gaskets
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTK14-1.0
• Piston size: 67 mm
• Oversize: 1.0 mm over
• Piston measurement: 66.94 mm
• Clearance: 0.06 mm
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11004-1298
• Cylinder Base Gasket: 11060-1659
• Intake Gasket: 11009-1941
• Exhaust Pipe Gasket: 11009-1995
• Exhaust Pipe O-Ring (x2): 670E3039
• Cylinder Cover Gasket: 11060-1629
• Cylinder Cover Gasket: 11060-1628
• Cylinder Cover Gasket: 11009-1993
• Cylinder Cover Gasket: 11060-1627

Vehicle Fitments

• 1995 Kawasaki KDX200
• 1996 Kawasaki KDX200
• 1997 Kawasaki KDX200
• 1998 Kawasaki KDX200
• 1999 Kawasaki KDX200
• 2000 Kawasaki KDX200
• 2001 Kawasaki KDX200
• 2002 Kawasaki KDX200
• 2003 Kawasaki KDX200
• 2004 Kawasaki KDX200
• 2005 Kawasaki KDX200
• 2006 Kawasaki KDX200
