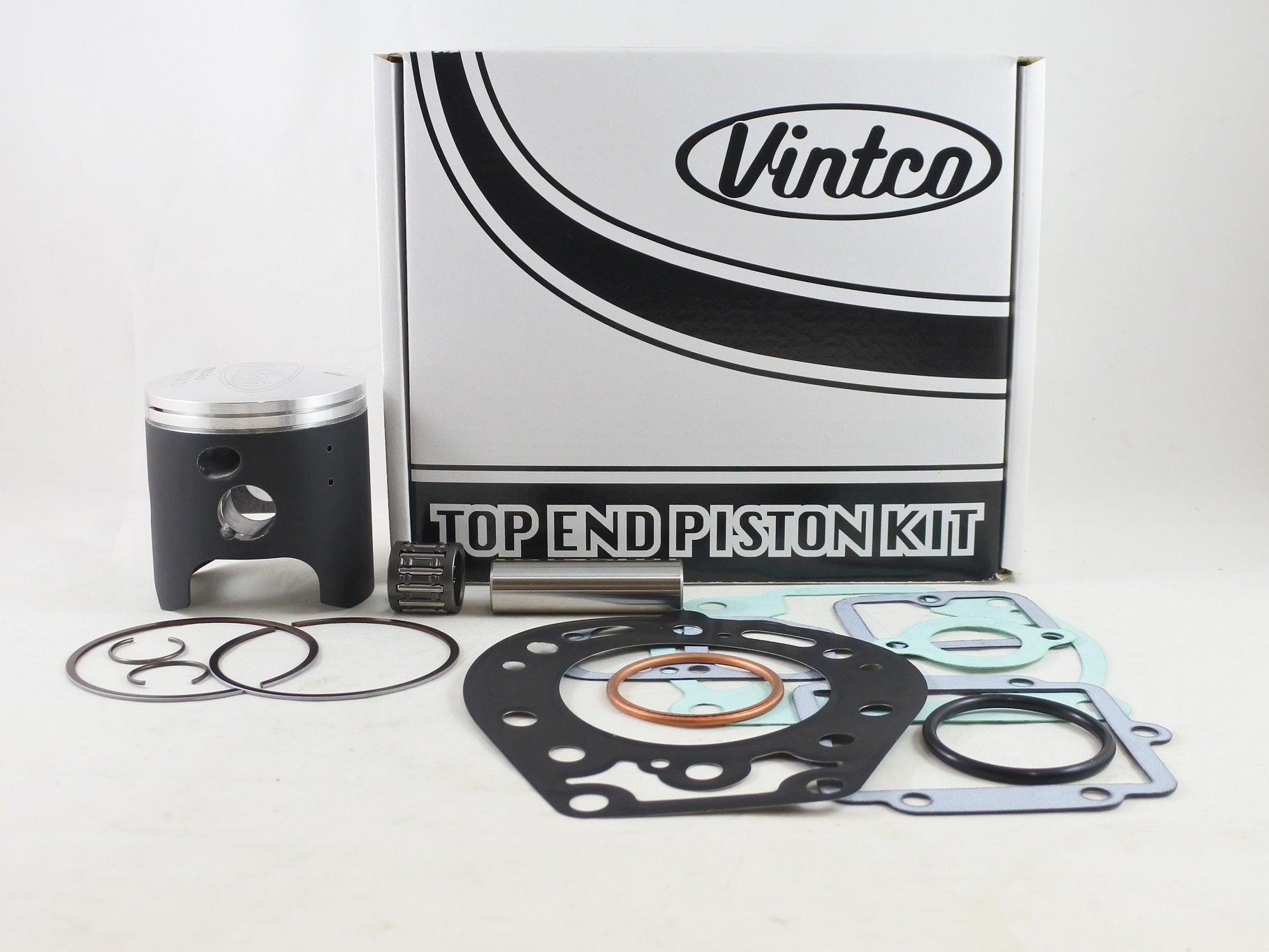

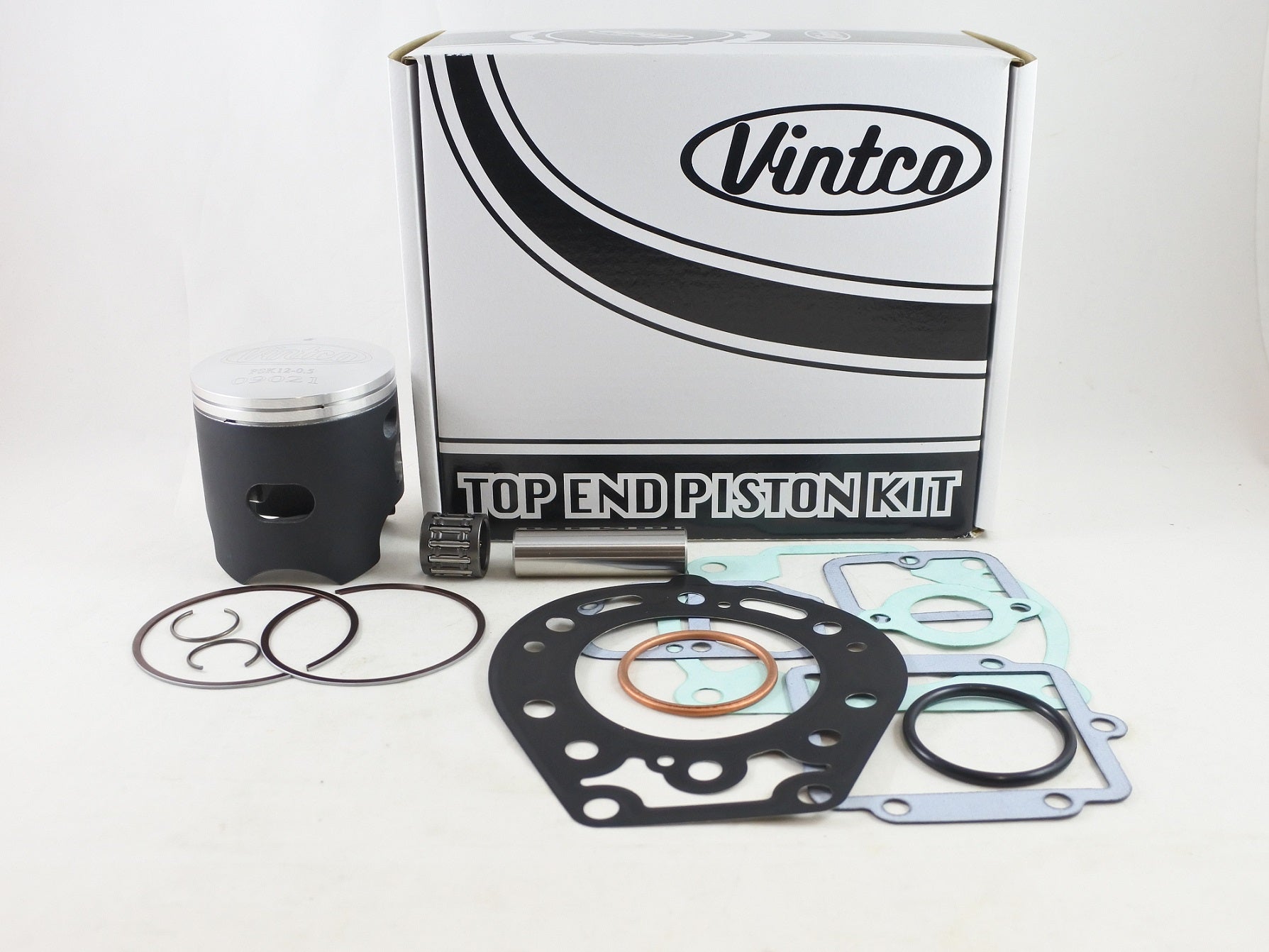

TOP END PISTON KIT 95-06 KAWASAKI KDX 200 66.5mm OVER VINTCO KTK14-0.5

This top end piston kit fits 1995-2006 Kawasaki KDX200 models and is supplied as a complete top-end service set with a forged piston, wrist pin bearing, and the required gaskets and seals. The piston is made in Germany and features an MOS2 coating for break-in, and the kit is priced at a 10% discount compared with purchasing the items individually.

Features

• Complete top end kit for Kawasaki KDX200 models
• Includes forged piston made in Germany with MOS2 coating for break-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes two exhaust pipe O-rings
• Includes cylinder cover gaskets
• Includes wrist pin bearing
• Kit price includes 10% discount compared with individual items

Specifications

• VintCo Part Number: KTK14-0.5
• Nominal size: 66.5 mm oversize
• Piston measurement: 66.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11004-1298
• Cylinder base gasket: 11060-1659
• Intake gasket: 11009-1941
• Exhaust pipe gasket: 11009-1995
• Exhaust pipe O-ring (x2): 670E3039
• Cylinder cover gasket: 11060-1629
• Cylinder cover gasket: 11060-1628
• Cylinder cover gasket: 11009-1993
• Cylinder cover gasket: 11060-1627

Vehicle Fitments

• 1995 Kawasaki KDX200
• 1996 Kawasaki KDX200
• 1997 Kawasaki KDX200
• 1998 Kawasaki KDX200
• 1999 Kawasaki KDX200
• 2000 Kawasaki KDX200
• 2001 Kawasaki KDX200
• 2002 Kawasaki KDX200
• 2003 Kawasaki KDX200
• 2004 Kawasaki KDX200
• 2005 Kawasaki KDX200
• 2006 Kawasaki KDX200
