Top End Piston Kit 94-01 Honda CR 500 91.0mm 2.0mm Over Vintco KTH33-2.0

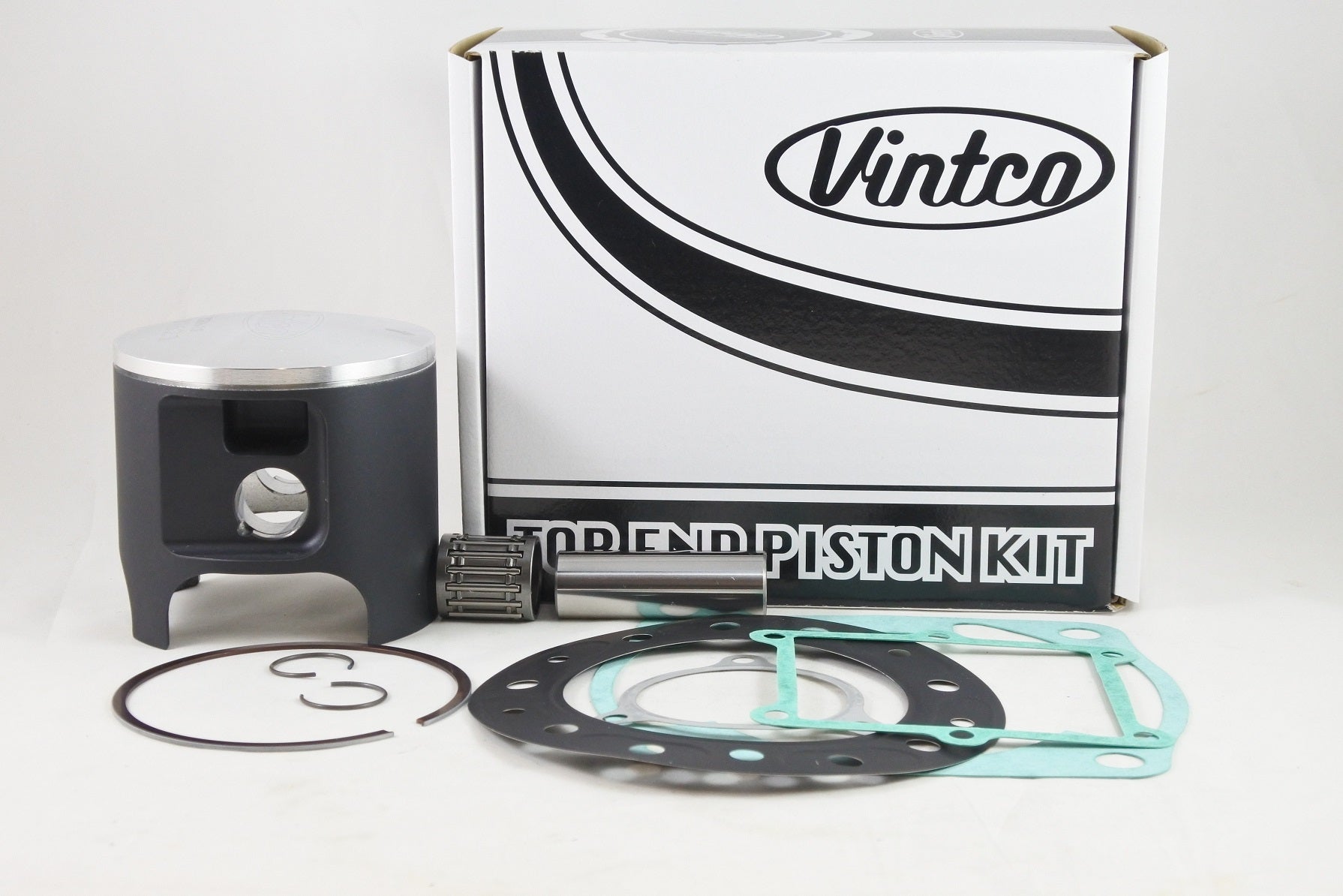

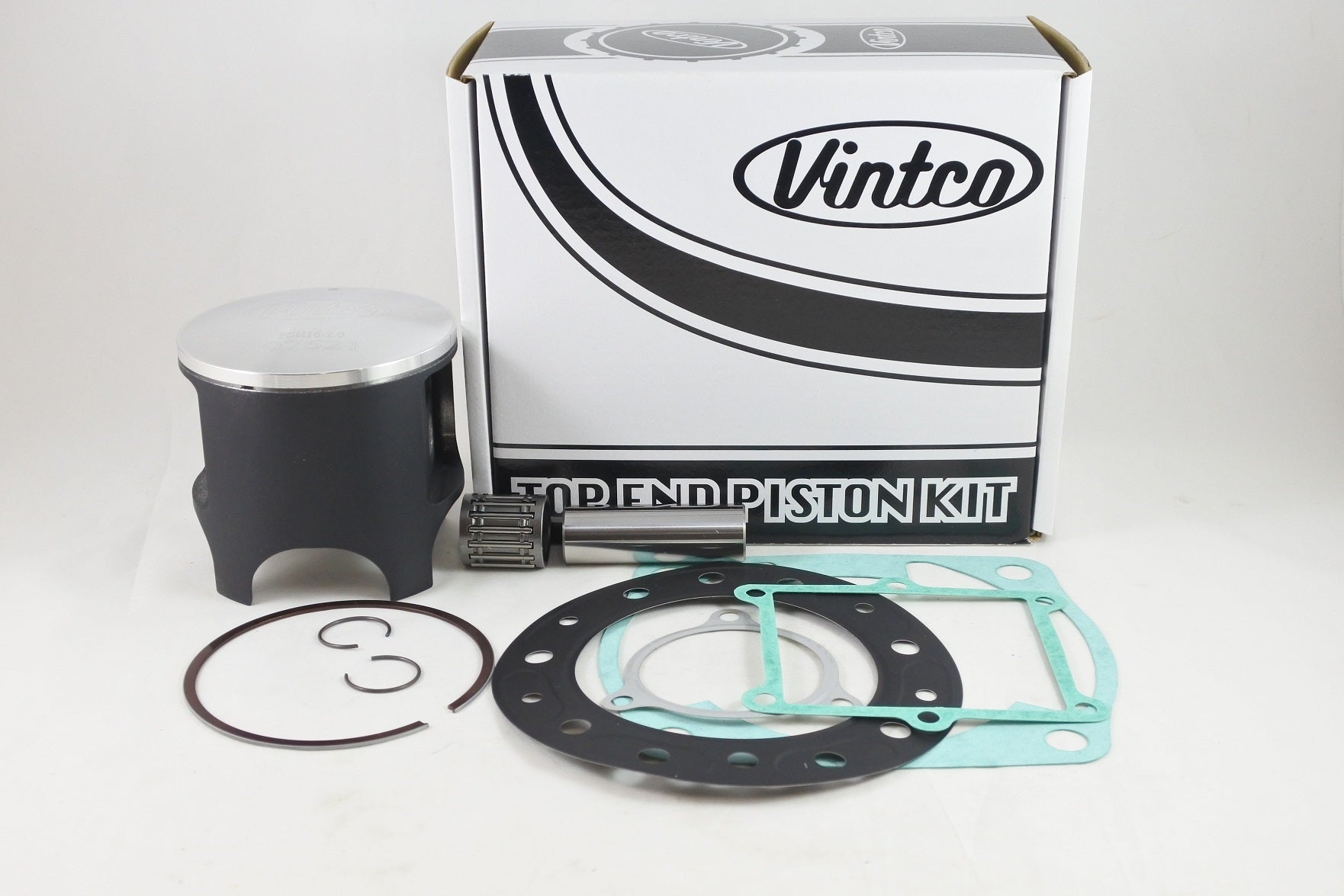

This top end piston kit is designed for 1994-2001 Honda CR500 models and provides the components required for a complete top-end rebuild. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit with head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods for OEM-equivalent fitment and performance, and the kit is supplied as a package with a 10% reduction compared with purchasing the parts individually.

Features

• Complete top-end rebuild kit for 1994-2001 Honda CR500 models
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Suitable for 2.0 mm over applications
• OEM part numbers supplied for fitment reference
• Additional size options are available

Specifications

• VintCo Part Number: KTH33-2.0
• Product type: Top End Piston Kit
• Nominal bore size: 91.0 mm
• Piston size: 90.92 mm
• Oversize: +2.0 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-680
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-MAC-680
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1994 Honda CR500
• 1995 Honda CR500
• 1996 Honda CR500
• 1997 Honda CR500
• 1998 Honda CR500
• 1999 Honda CR500
• 2000 Honda CR500
• 2001 Honda CR500
