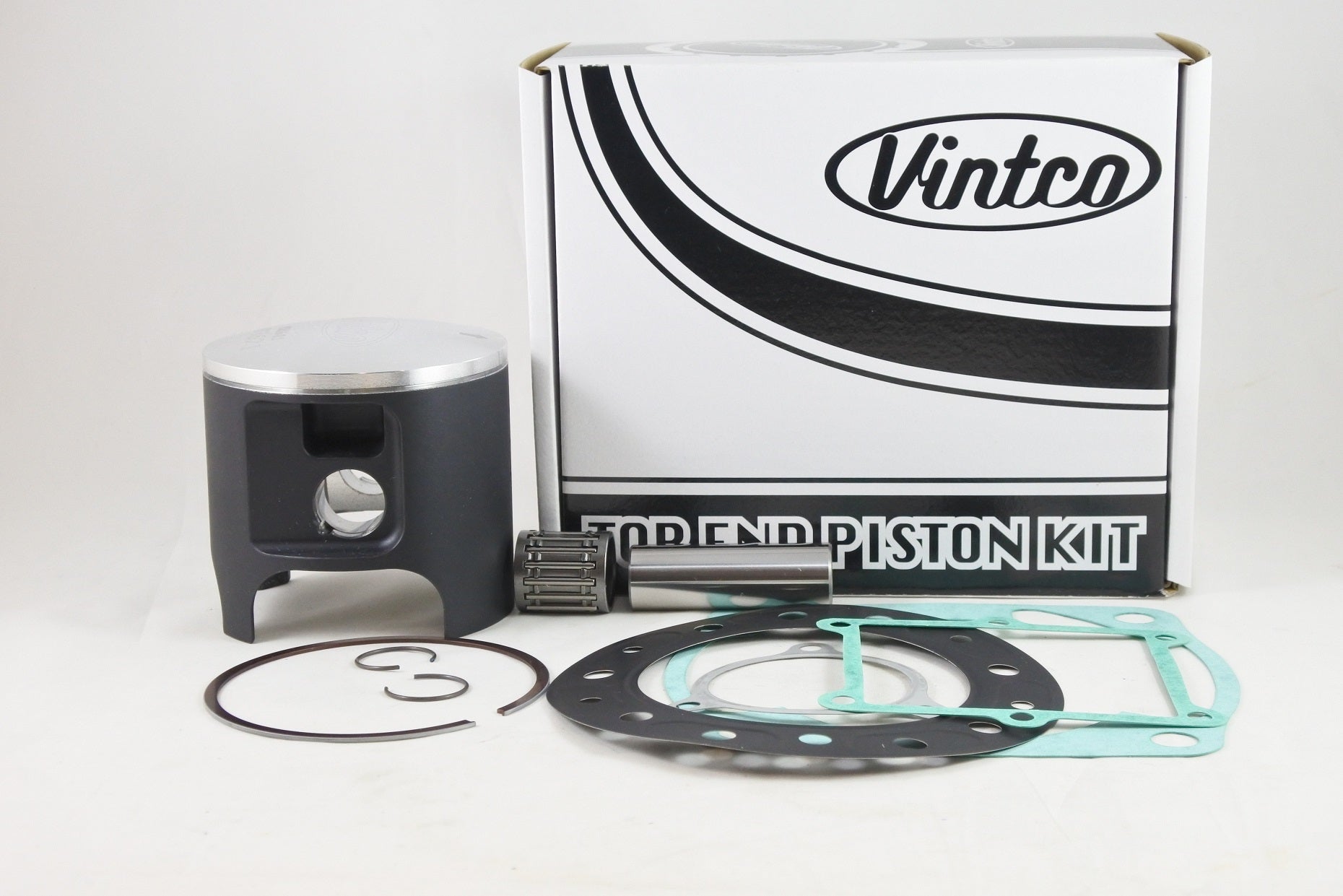

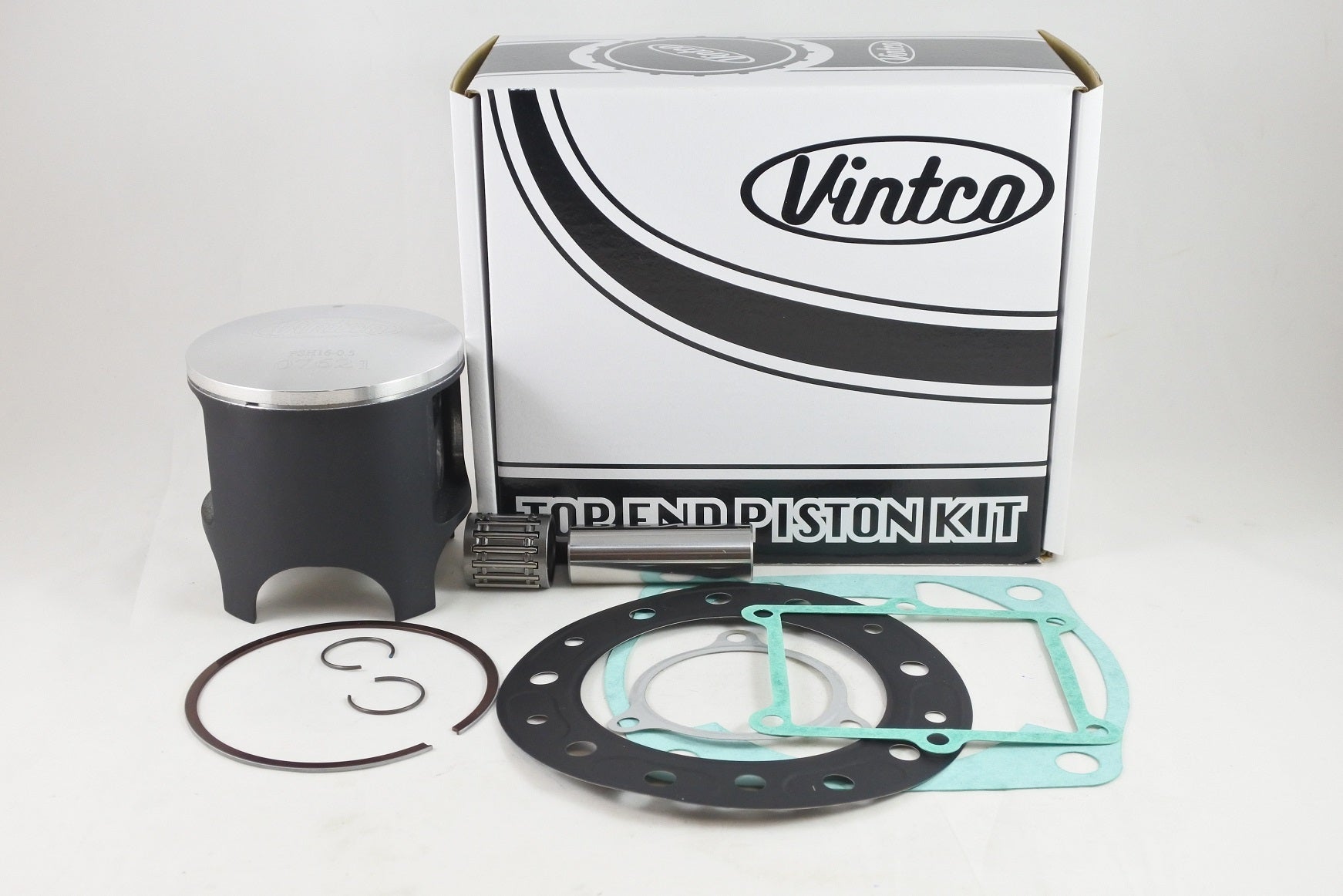

TOP END PISTON KIT 94-01 HONDA CR 500 89.5mm 0.5mm OVER VINTCO KTH33-0.5

This VintCo top end piston kit is a complete rebuild set for 1994-2001 Honda CR500 models, supplied in an 89.5 mm (+0.5 mm over) size. It includes the piston, rings, pin, clips, wrist pin bearing, and a full top-end gasket set comprising the head gasket, base gasket, intake gasket, and exhaust gasket. The components are manufactured using modern materials and production methods for OEM-equivalent or better fitment and performance, and the kit price includes a 10% saving compared with purchasing the parts individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Head gasket included
• Base gasket included
• Intake gasket included
• Exhaust pipe gasket included
• Designed for exact fitment using OEM part number cross-references
• Kit price includes 10% discount over individual items
• Additional size options are available

Specifications

• VintCo Part Number: KTH33-0.5
• Product type: Top End Piston Kit
• Application: 1994-2001 Honda CR500
• Nominal size: 89.5 mm
• Oversize: +0.5 mm over
• Piston diameter: 89.42 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2 coated
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-680
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-MAC-680
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1994 Honda CR500
• 1995 Honda CR500
• 1996 Honda CR500
• 1997 Honda CR500
• 1998 Honda CR500
• 1999 Honda CR500
• 2000 Honda CR500
• 2001 Honda CR500
