Top End Piston Kit 94-01 Honda CR 500 88.92mm Standard Vintco KTH33-00

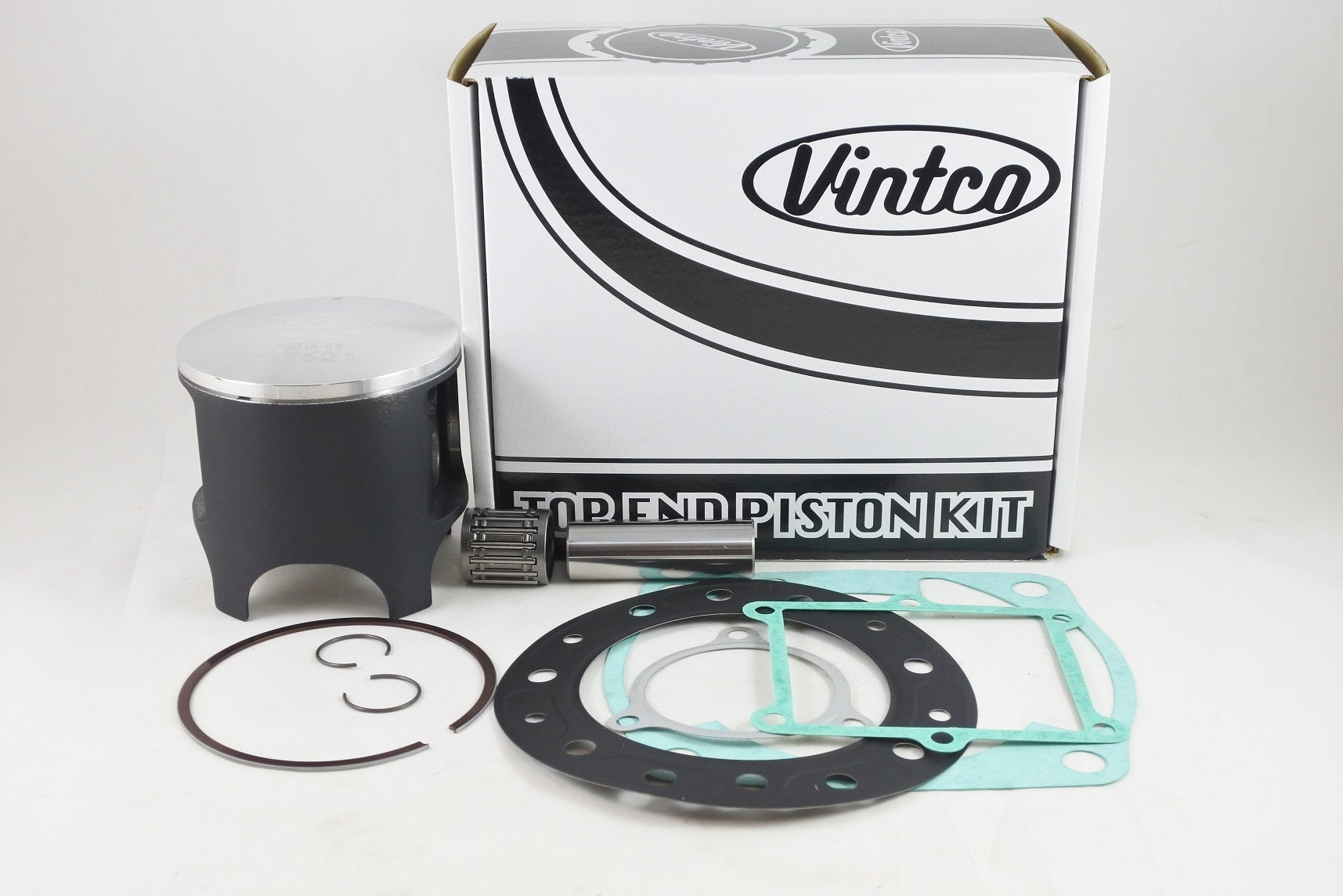

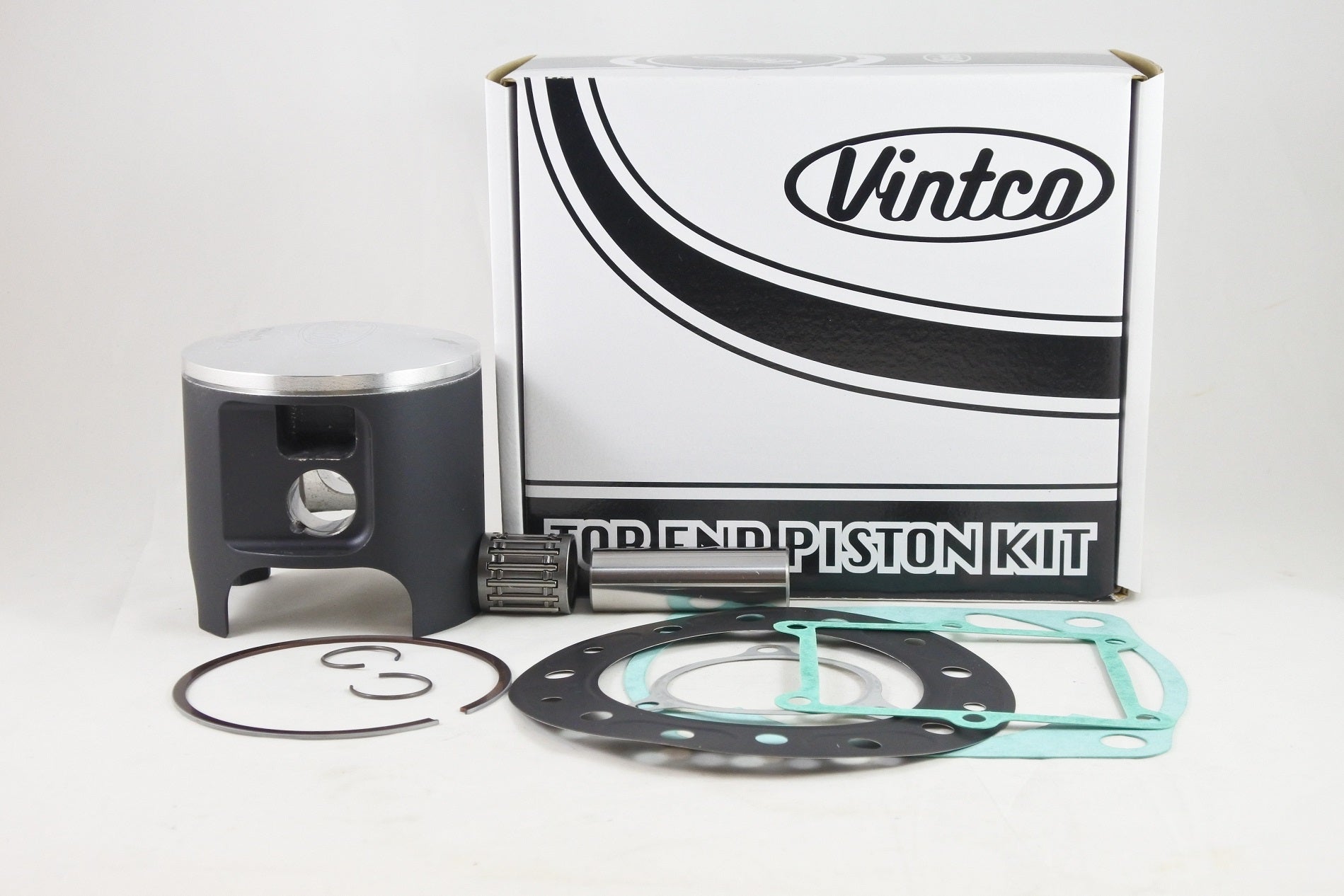

VintCo KTH33-00 is a standard-size top end piston kit for Honda CR500 models from 1994 to 2001, intended for complete top end rebuilds. The kit includes a piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake, and exhaust pipe gaskets. It is manufactured using modern materials and processes for OEM-style fitment and performance, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket set
• Suitable for standard-bore rebuilds
• OEM part numbers supplied for fitment reference
• Kit priced 10% lower than equivalent items purchased individually
• Additional size options available

Specifications

• VintCo Part Number: KTH33-00
• Product type: Top End Piston Kit
• Piston diameter: 88.92 mm
• Piston clearance: 0.08 mm
• Piston construction: Forged
• Piston coating: MOS2
• Piston origin: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-680
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-MAC-680
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1994 Honda CR500
• 1995 Honda CR500
• 1996 Honda CR500
• 1997 Honda CR500
• 1998 Honda CR500
• 1999 Honda CR500
• 2000 Honda CR500
• 2001 Honda CR500
