Top End Piston Kit 93-93 Yamaha YZ 125 56mm Standard Vintco KTY33-00

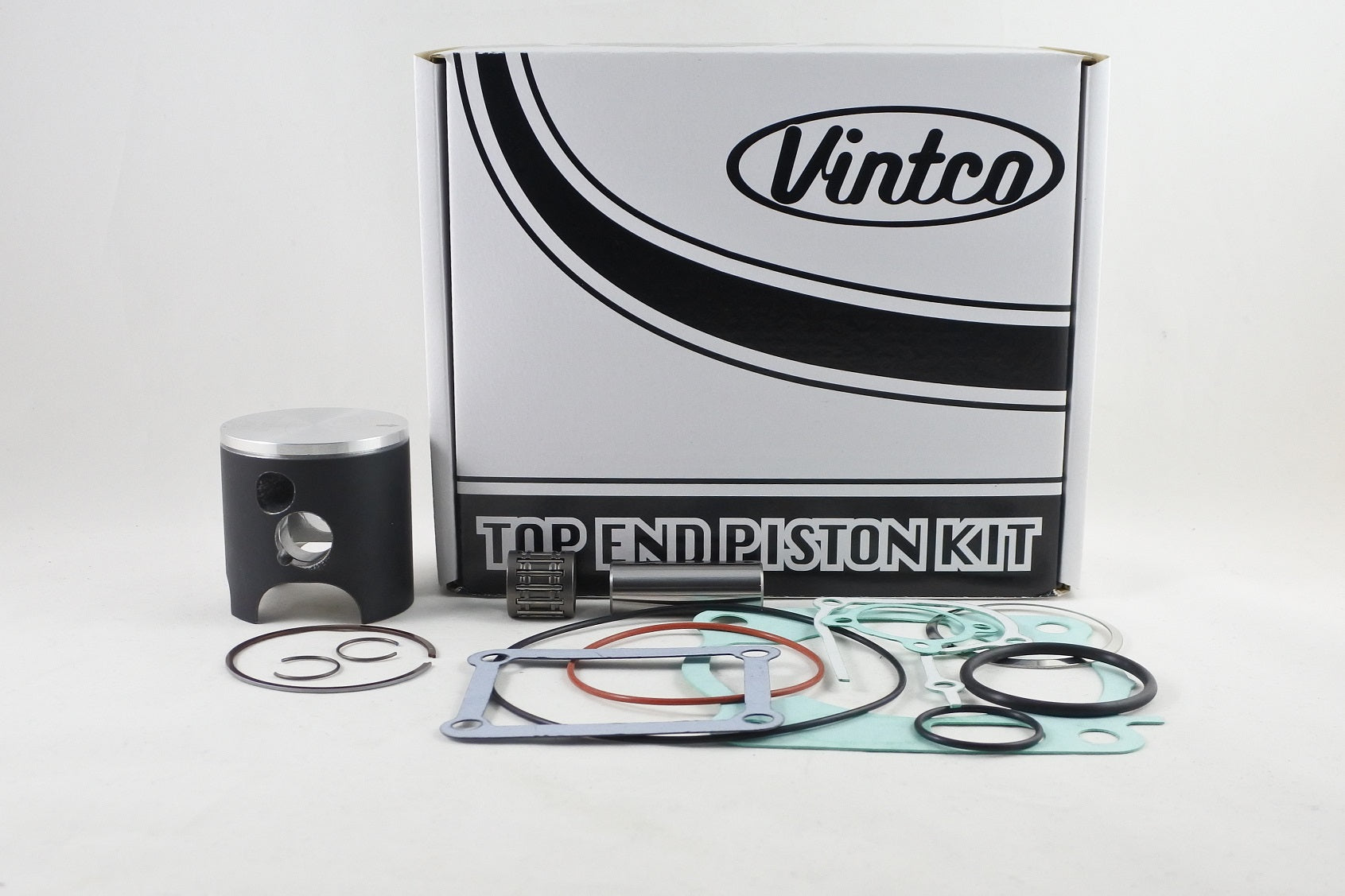

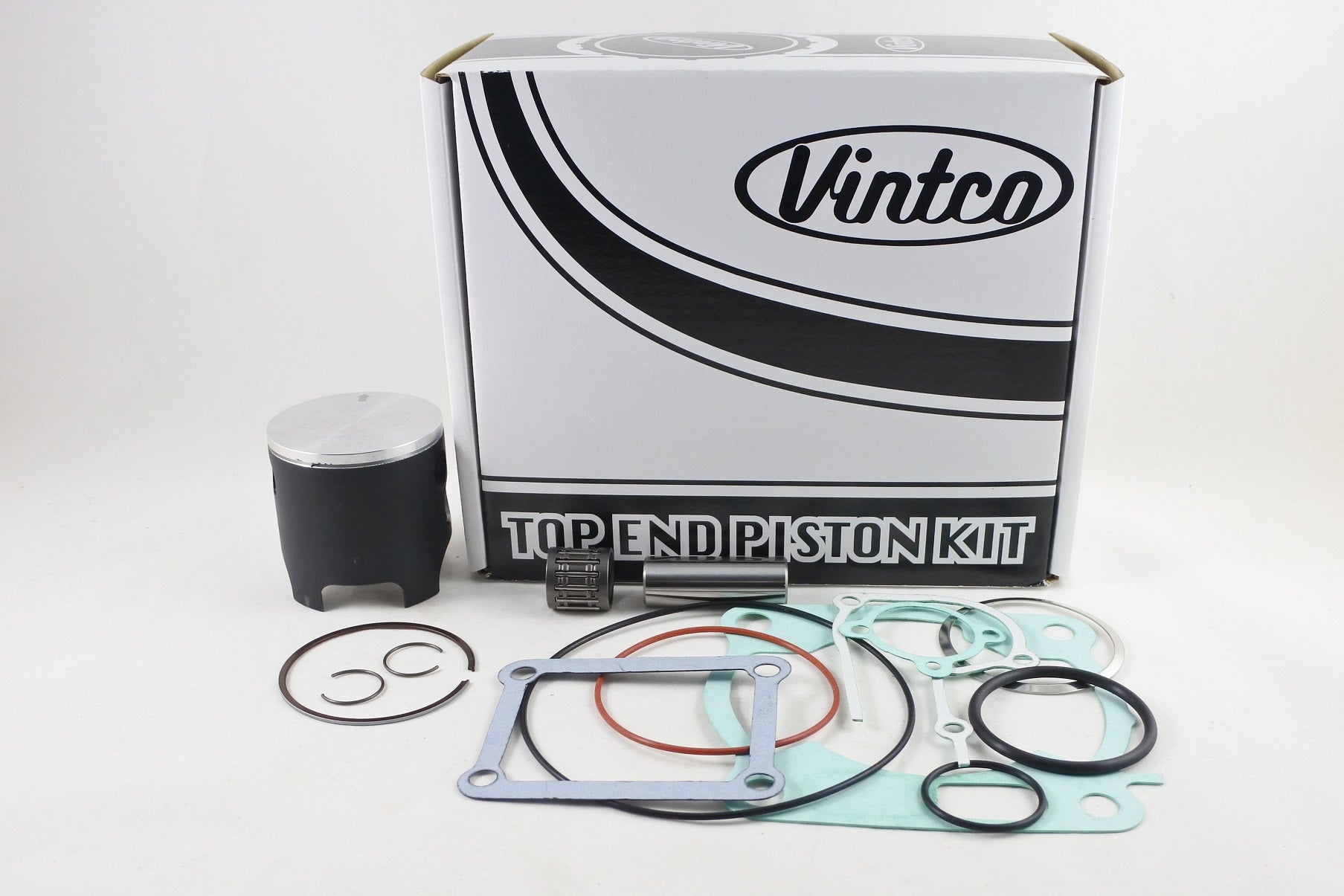

VintCo top end piston kit KTY33-00 is a complete top-end service kit for the 1993 Yamaha YZ125. It includes a standard-size forged piston with MOS2 coating for break-in, along with the associated head, base, intake, exhaust pipe, holder and YPVS housing gaskets, plus two O-rings. Kit pricing reflects a 10% reduction compared with purchasing the included items individually.

Features

• Complete top end piston kit for top-end service work
• Includes forged piston with MOS2 coating for break-in
• Supplied with head gaskets
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust pipe gaskets
• Supplied with holder gasket
• Supplied with YPVS housing gasket
• Includes two O-rings
• Kit price includes a 10% reduction compared with individual items

Specifications

• VintCo Part Number: KTY33-00
• Piston size: Standard
• Nominal size: 56 mm
• Piston diameter: 55.96 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Coating: MOS2

Cross-Reference OEM Part Numbers

• Head Gasket: 93211-07720-00
• Head Gasket: 93210-65721-00
• Base Gasket: 1LX-11351-10-00
• Intake Gasket: 4TP-13621-00-00
• Exhaust Pipe Gasket: 3R3-14613-00-00
• Exhaust Pipe Gasket: 93210-45742-00
• Holder Gasket: 4DB-1131N-00-00
• O-Ring: 93210-27672-00
• YPVS Housing Gasket: 4DB-11993-01-00

Vehicle Fitments

• 1993 Yamaha YZ125
