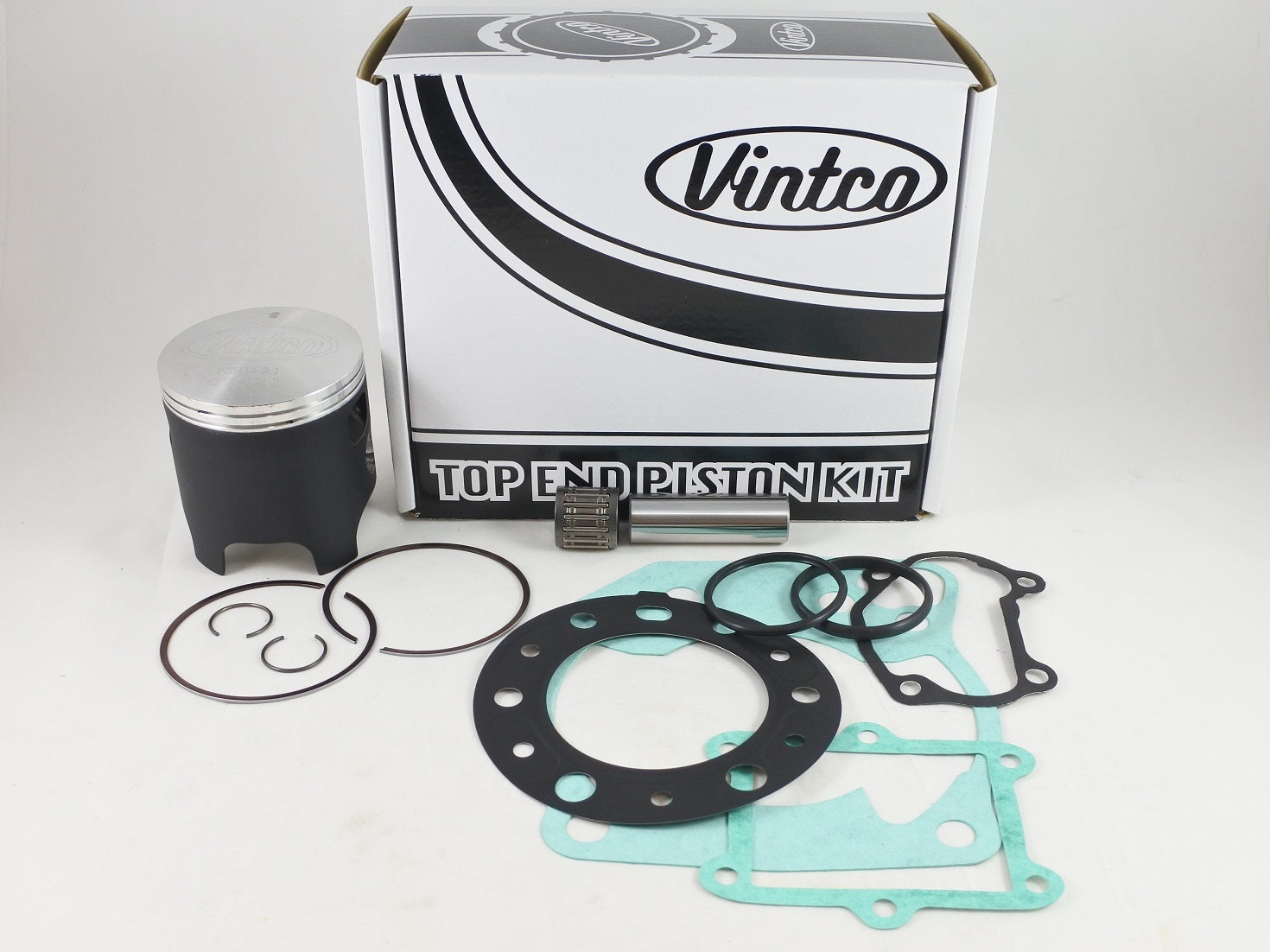

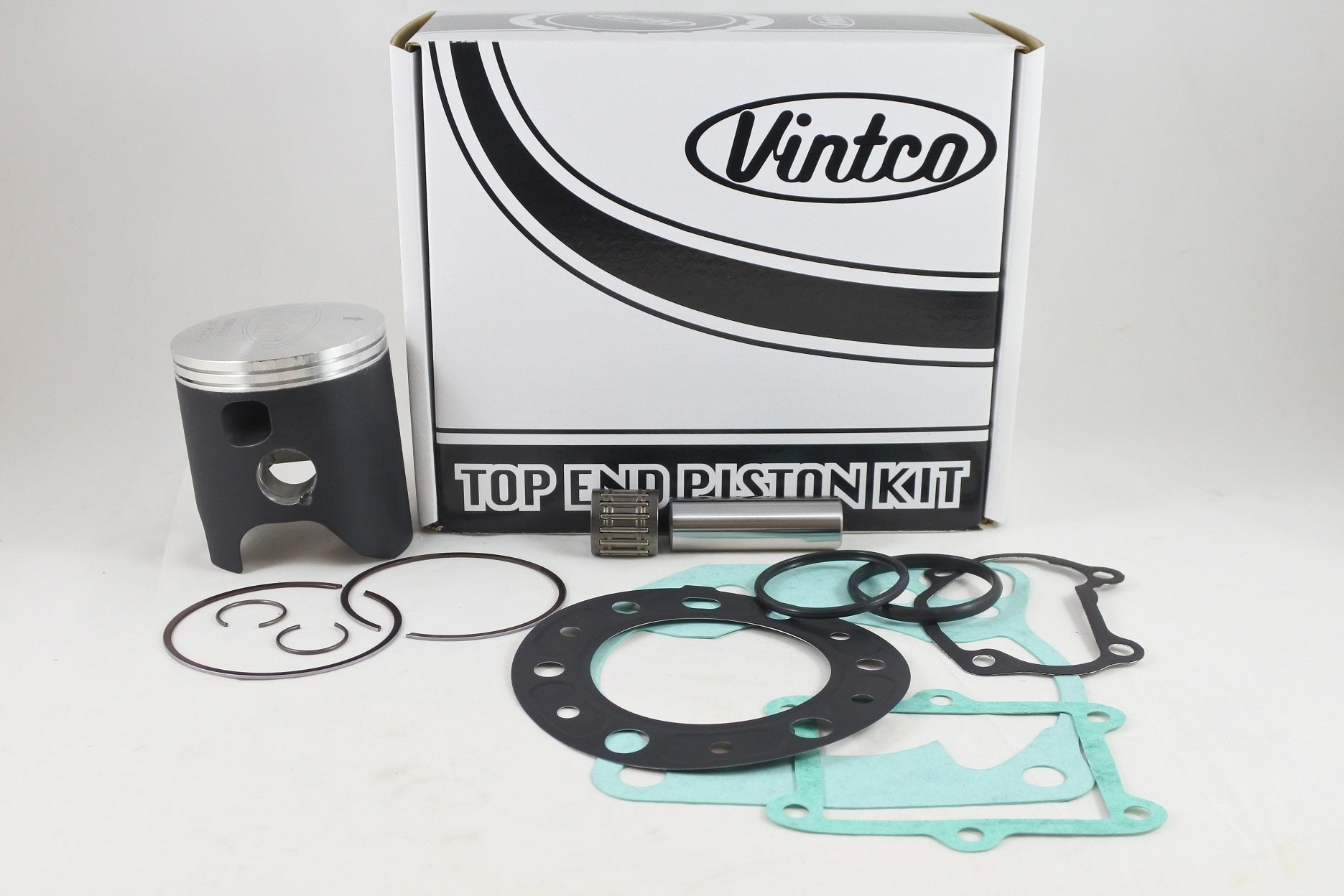

Top End Piston Kit 92-96 Honda CR 250 68.5mm 2.1mm Over Vintco KTH27-2.1

VintCo top end piston kit KTH27-2.1 is a complete rebuild kit for 1992-1996 Honda CR250 models, supplied for a 68.5 mm (+2.1 mm over) top end rebuild. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set. Components are produced using modern materials and manufacturing techniques for OEM-equivalent or better fit and performance, with OEM part numbers provided for exact fitment reference. Additional size options are available.

Features

• Complete top end rebuild kit for Honda CR250 models
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Gasket set includes head gasket, base gasket, intake gasket, power valve gaskets and exhaust pipe gasket
• Intended to simplify top-end rebuild work
• OEM part numbers supplied for exact fitment reference
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH27-2.1
• Product type: Top End Piston Kit
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2
• Nominal size: 68.5 mm
• Piston diameter: 68.44 mm
• Oversize: +2.1 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KZ3-860
• Base gasket: 12191-KZ3-880
• Intake gasket: 14132-KAE-000
• Exhaust pipe gasket: 91304-KZ3-890
• Right power valve gasket: 12108-KZ3-880

Vehicle Fitments

• 1992 Honda CR250
• 1993 Honda CR250
• 1994 Honda CR250
• 1995 Honda CR250
• 1996 Honda CR250
