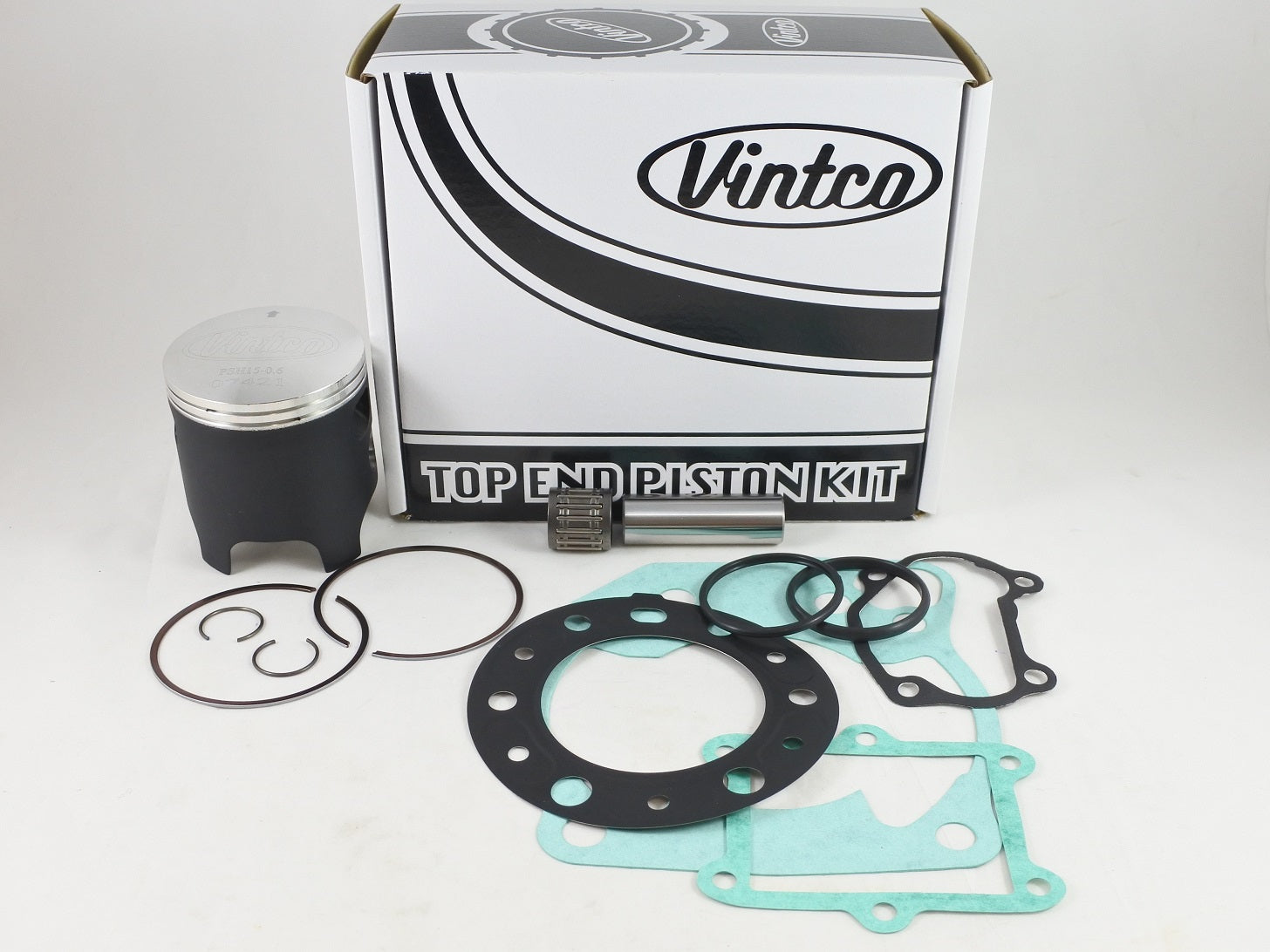

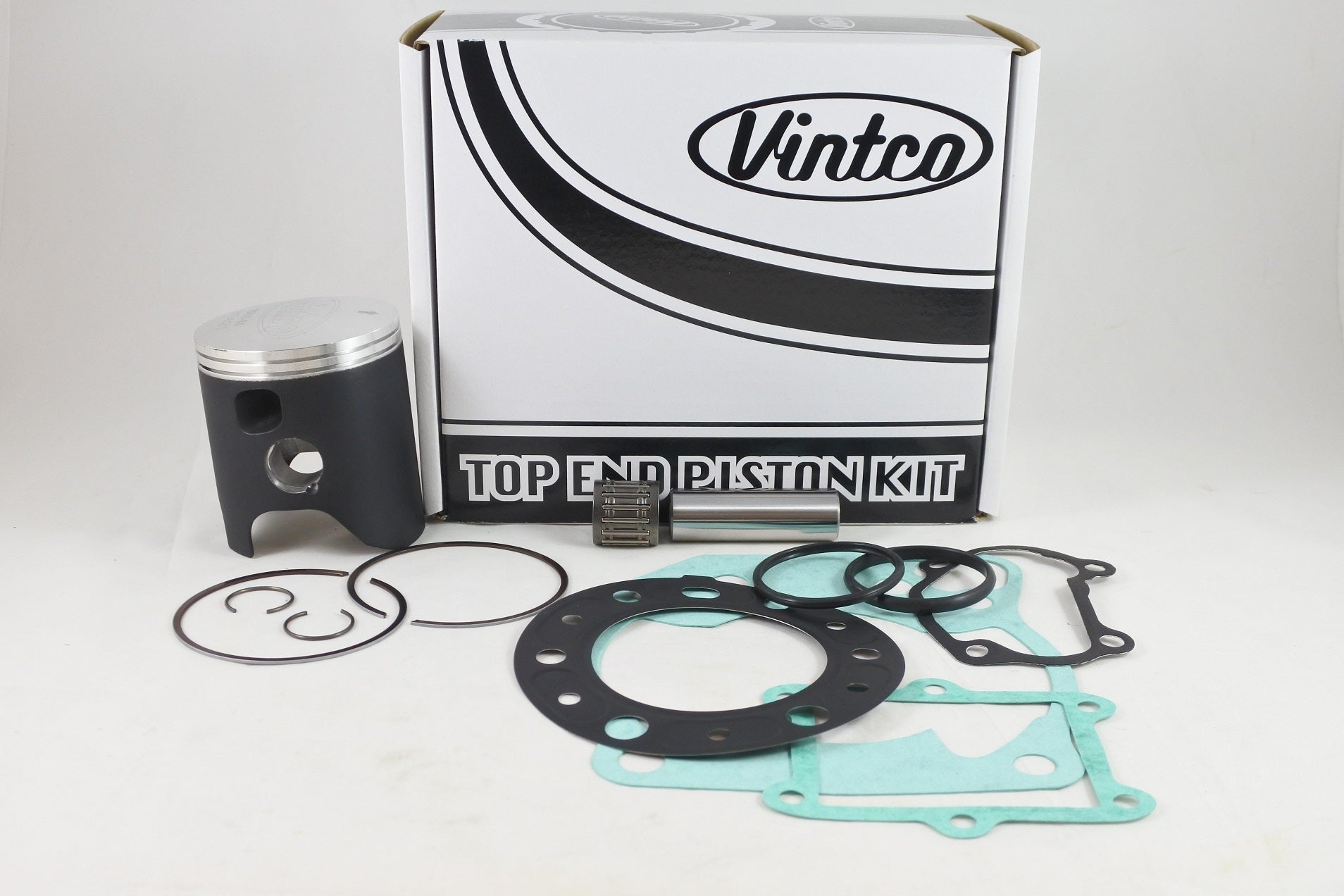

TOP END PISTON KIT 92-96 HONDA CR 250 67mm +0.6mm OVER VINTCO KTH27-0.6

VintCo KTH27-0.6 is a complete top end piston kit for Honda CR250 models from 1992 to 1996, intended for a 67 mm bore with a +0.6 mm oversize application. The kit is supplied to simplify top-end rebuild work and includes a VintCo piston assembly with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set covering the head, base, intake, right power valve and exhaust pipe. Components are manufactured using modern materials and production methods for OEM-equivalent fit and performance. Additional size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes right power valve gasket
• Includes exhaust pipe gasket
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH27-0.6
• Product Type: Top End Piston Kit
• Application: Honda CR250
• Nominal bore size: 67 mm
• Oversize: +0.6 mm
• Piston diameter: 66.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KZ3-860
• Base gasket: 12191-KZ3-880
• Intake gasket: 14132-KAE-000
• Exhaust pipe gasket: 91304-KZ3-890
• Right power valve gasket: 12108-KZ3-880

Vehicle Fitments

• 1992 Honda CR250
• 1993 Honda CR250
• 1994 Honda CR250
• 1995 Honda CR250
• 1996 Honda CR250
