TOP END PISTON KIT 92-93 HONDA CR 500 91.0mm 2.0mm OVER VINTCO KTH32-2.0
  • TOP END PISTON KIT 92-93 HONDA CR 500 91.0mm 2.0mm OVER VINTCO KTH32-2.0
  • TOP END PISTON KIT 92-93 HONDA CR 500 91.0mm 2.0mm OVER VINTCO KTH32-2.0
  • TOP END PISTON KIT 92-93 HONDA CR 500 91.0mm 2.0mm OVER VINTCO KTH32-2.0
  • TOP END PISTON KIT 92-93 HONDA CR 500 91.0mm 2.0mm OVER VINTCO KTH32-2.0
TOP END PISTON KIT 92-93 HONDA CR 500 91.0mm 2.0mm OVER VINTCO KTH32-2.0

TOP END PISTON KIT 92-93 HONDA CR 500 91.0mm 2.0mm OVER VINTCO KTH32-2.0

£228.57 GBP
Taxes included. Shipping calculated at checkout.

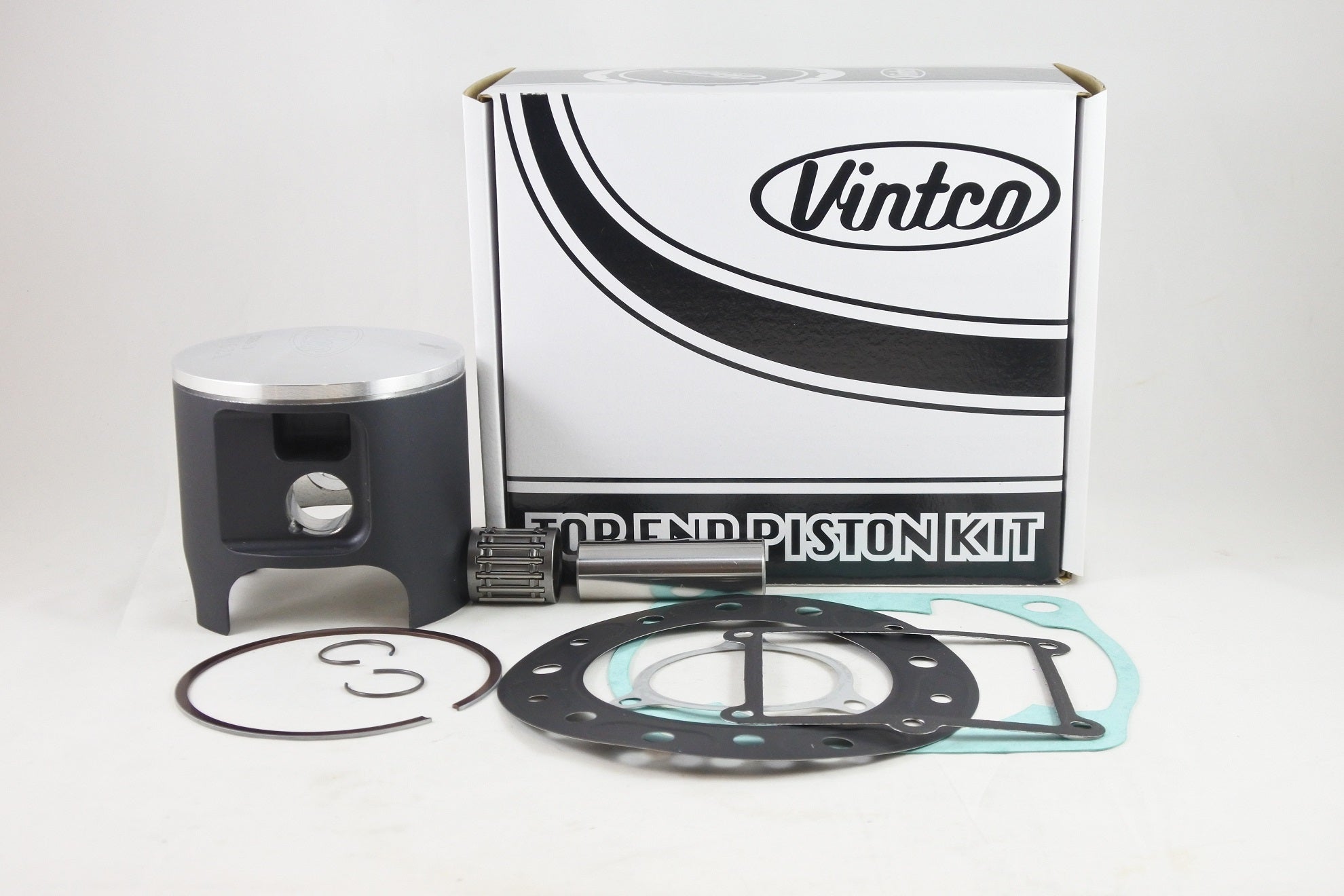

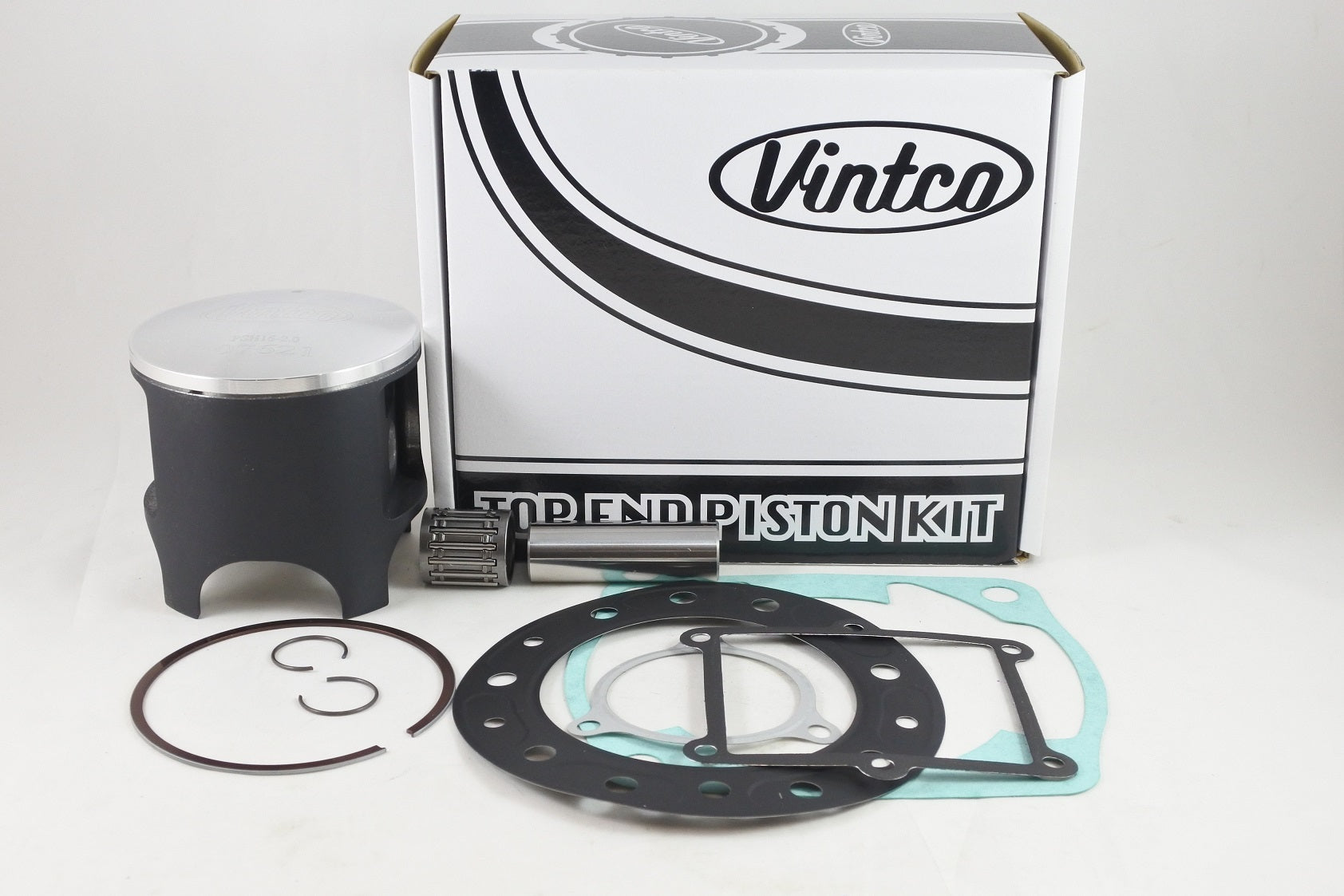

The VintCo KTH32-2.0 top end piston kit is a complete rebuild kit for 1992-1993 Honda CR500 models, supplied with a forged oversize piston assembly, wrist pin bearing, and a full top-end gasket set. Built using modern materials and manufacturing methods, it is intended to provide OEM-equivalent fitment and includes the components required to complete a top-end rebuild in one kit.

Features

  • Complete top-end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes head gasket, base gasket, intake gasket and exhaust pipe gasket
  • Manufactured with modern materials and processes for OEM-equivalent fitment and performance
  • Kit price includes a 10% saving compared to purchasing the listed components individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTH32-2.0
  • Product Type: Top End Piston Kit
  • Piston Construction: Forged
  • Country of Manufacture: Germany
  • Piston Coating: MOS2
  • Nominal Size: 91.0 mm
  • Oversize: +2.0 mm
  • Piston Diameter: 90.92 mm
  • Piston-to-cylinder Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Head Gasket: 12254-ML3-680
  • Base Gasket: 12191-MAC-680
  • Intake Gasket: 14132-ML3-790
  • Exhaust Pipe Gasket: 18291-ML3-791

Vehicle Fitments

  • 1992 Honda CR500
  • 1993 Honda CR500
