TOP END PISTON KIT 92-93 HONDA CR 500 90.0MM 1.0MM OVER VINTCO KTH32-1.0

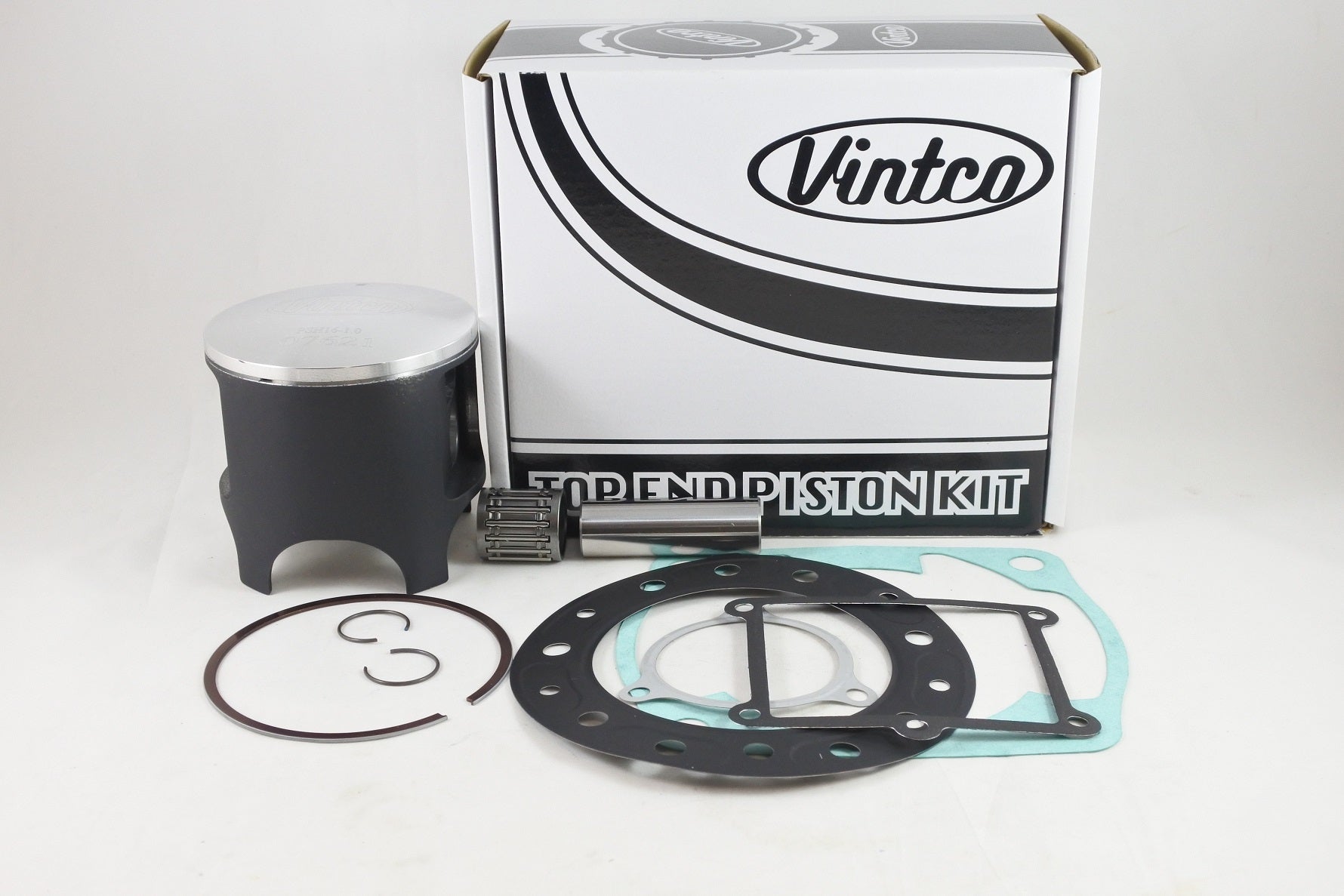

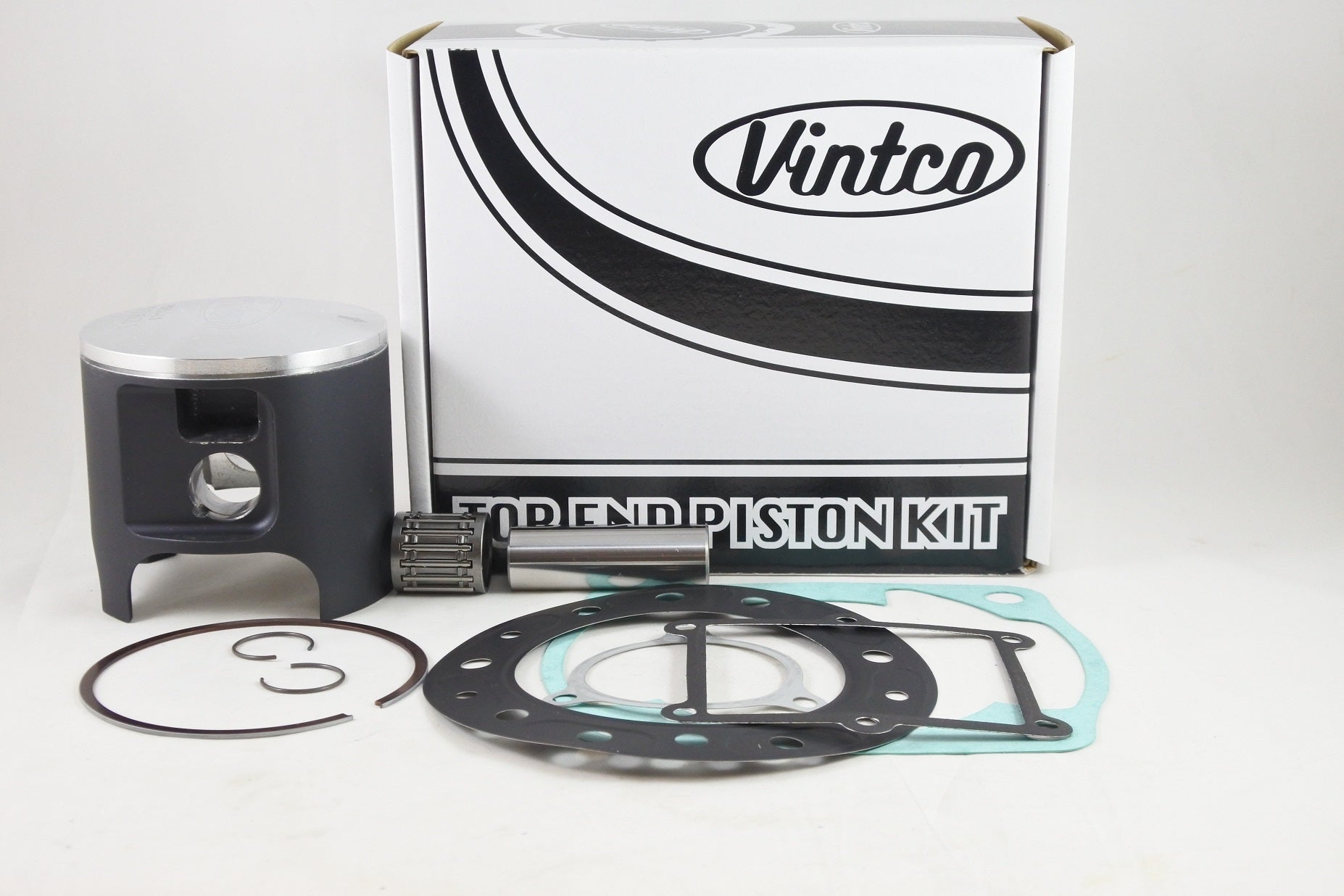

This VintCo top end piston kit is designed for 1992-1993 Honda CR500 models and provides the parts required for a complete top-end rebuild in a 90.0 mm, +1.0 mm oversize configuration. The kit includes a piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods for OEM-equivalent or better fit and performance. The kit price is 10% lower than purchasing the included parts individually, and additional size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Gasket set includes head gasket, base gasket, intake gasket and exhaust gasket
• Supports OEM-equivalent or better fit and performance
• OEM part number references supplied for fitment verification
• Kit price is 10% lower than buying components individually
• Additional size options available

Specifications

• VintCo Part Number: KTH32-1.0
• Product type: Top end piston kit
• Nominal size: 90.0 mm
• Oversize: +1.0 mm
• Piston diameter: 89.92 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Manufactured in: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-680
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-ML3-790
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1992 Honda CR500
• 1993 Honda CR500
