TOP END PISTON KIT 92-93 HONDA CR 500 89.5mm 0.5mm OVER VINTCO KTH32-0.5

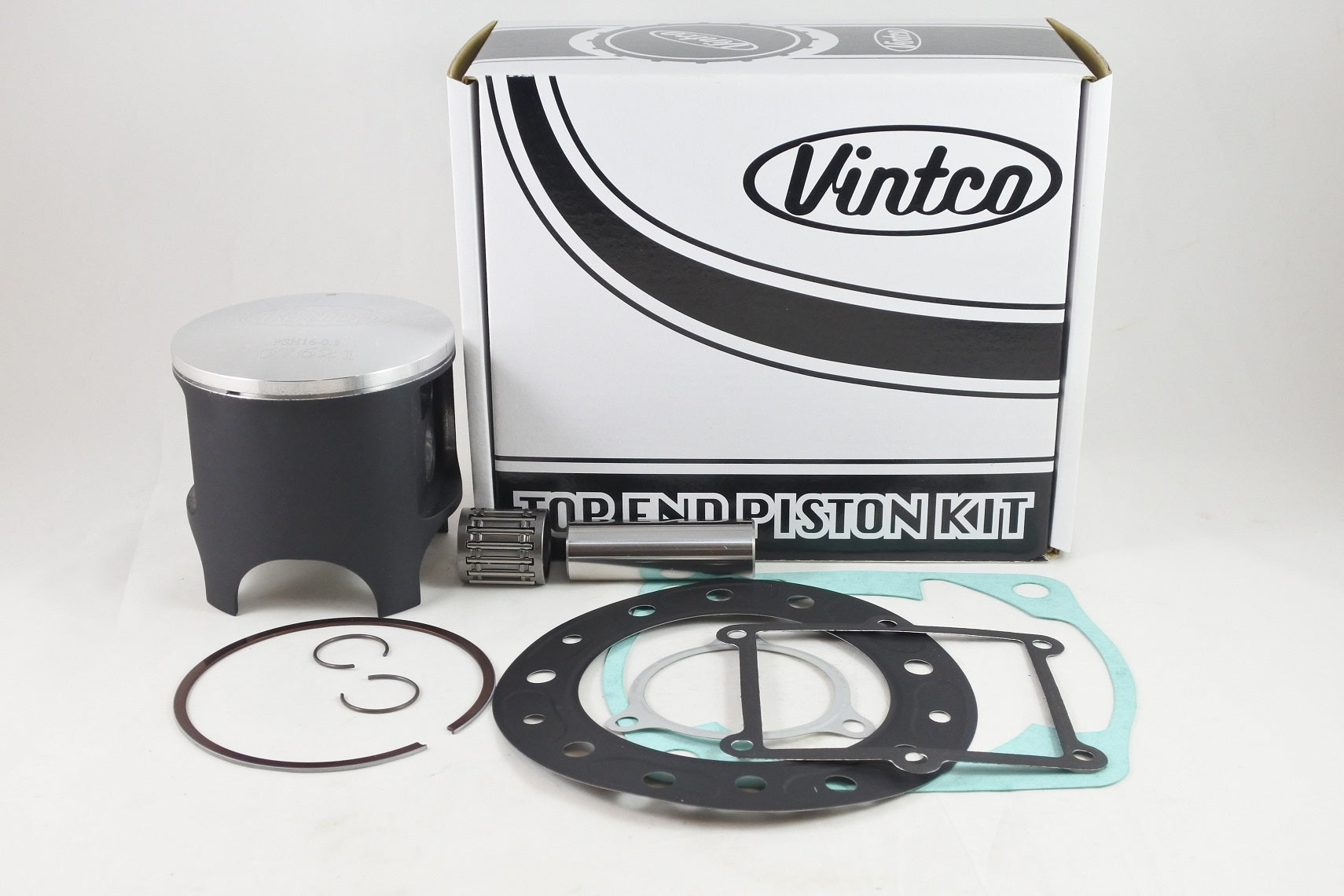

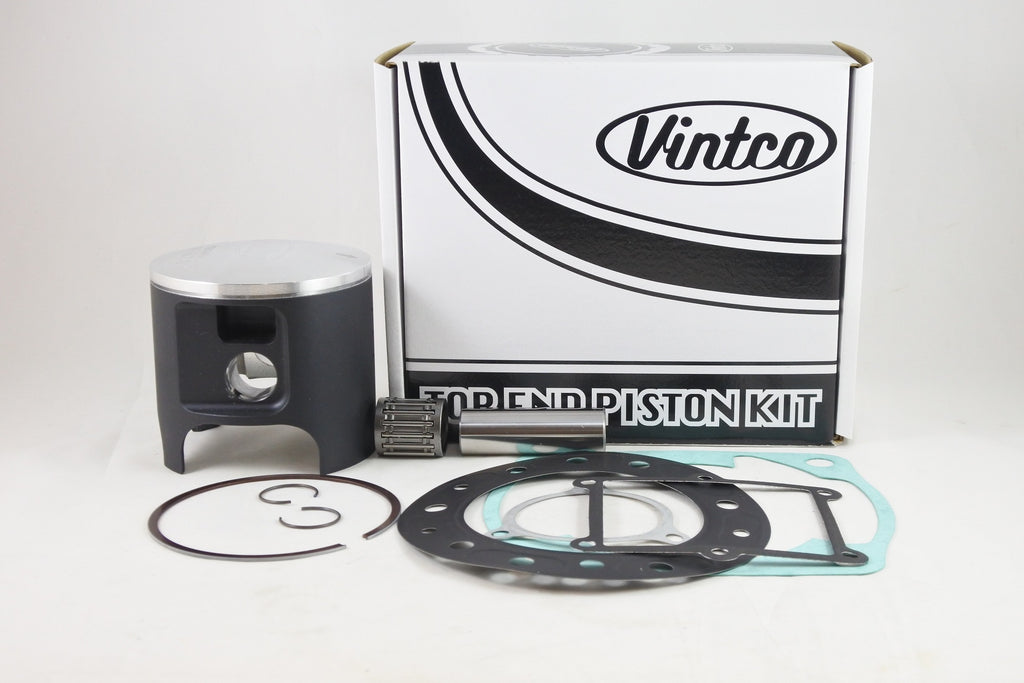

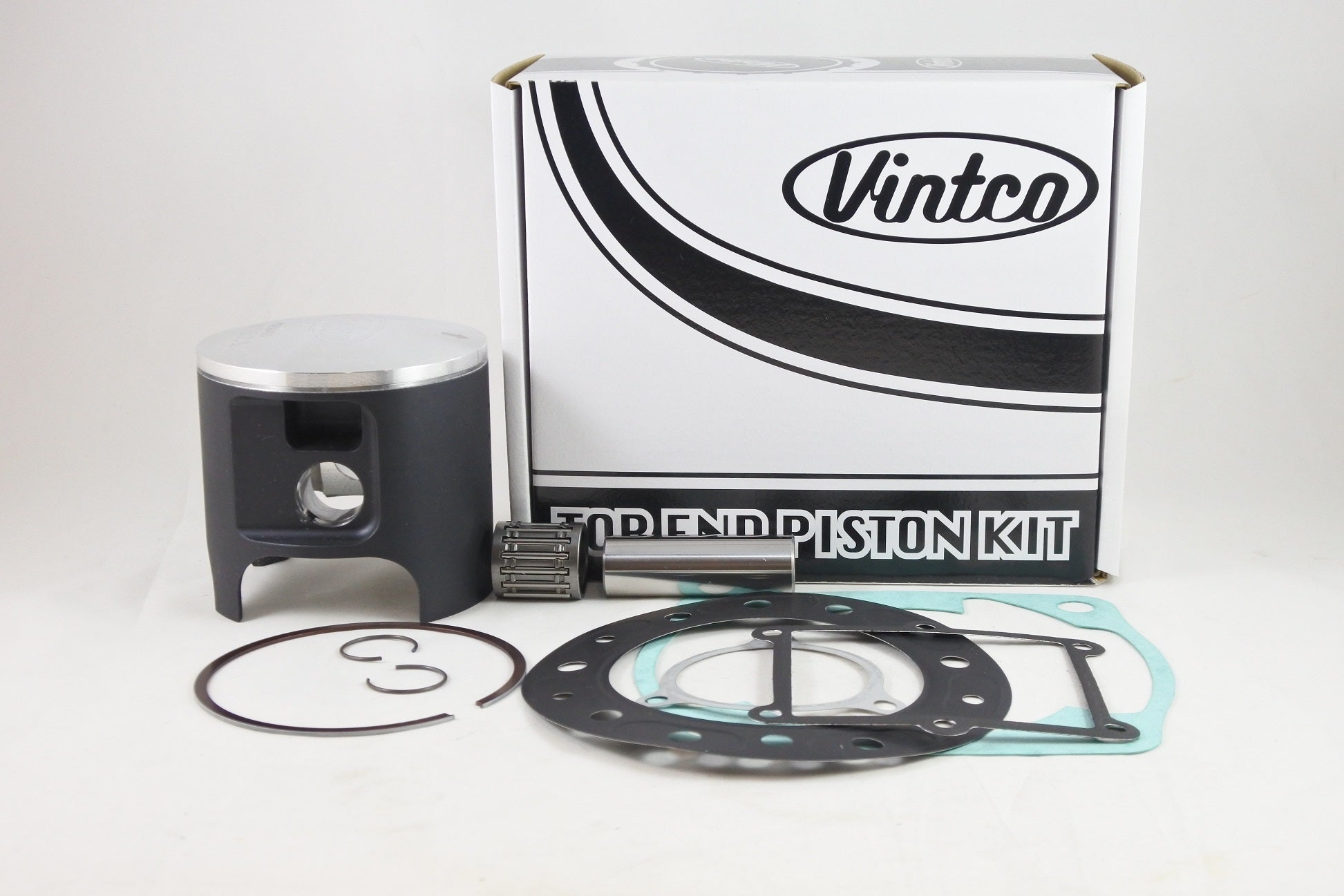

This top end piston kit is designed for 1992-1993 Honda CR500 models and provides the components required for a top end rebuild in one package. The kit includes a VintCo piston kit with piston, rings, pin and clips, along with a top end bearing and a full top-end gasket kit comprising the head gasket, base gasket, intake gasket and exhaust gasket. It is manufactured using modern materials and manufacturing techniques for OEM-level fit and performance. Kit pricing is 10% lower than purchasing the components individually, and additional size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust gasket
• Intended for exact fitment using listed OEM references
• Additional size options available

Specifications

• VintCo Part Number: KTH32-0.5
• Product type: Top End Piston Kit
• Nominal piston size: 89.5 mm
• Oversize: +0.5 mm over
• Piston diameter: 89.42 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2 coated for break-in

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-680
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-ML3-790
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1992 Honda CR500
• 1993 Honda CR500
