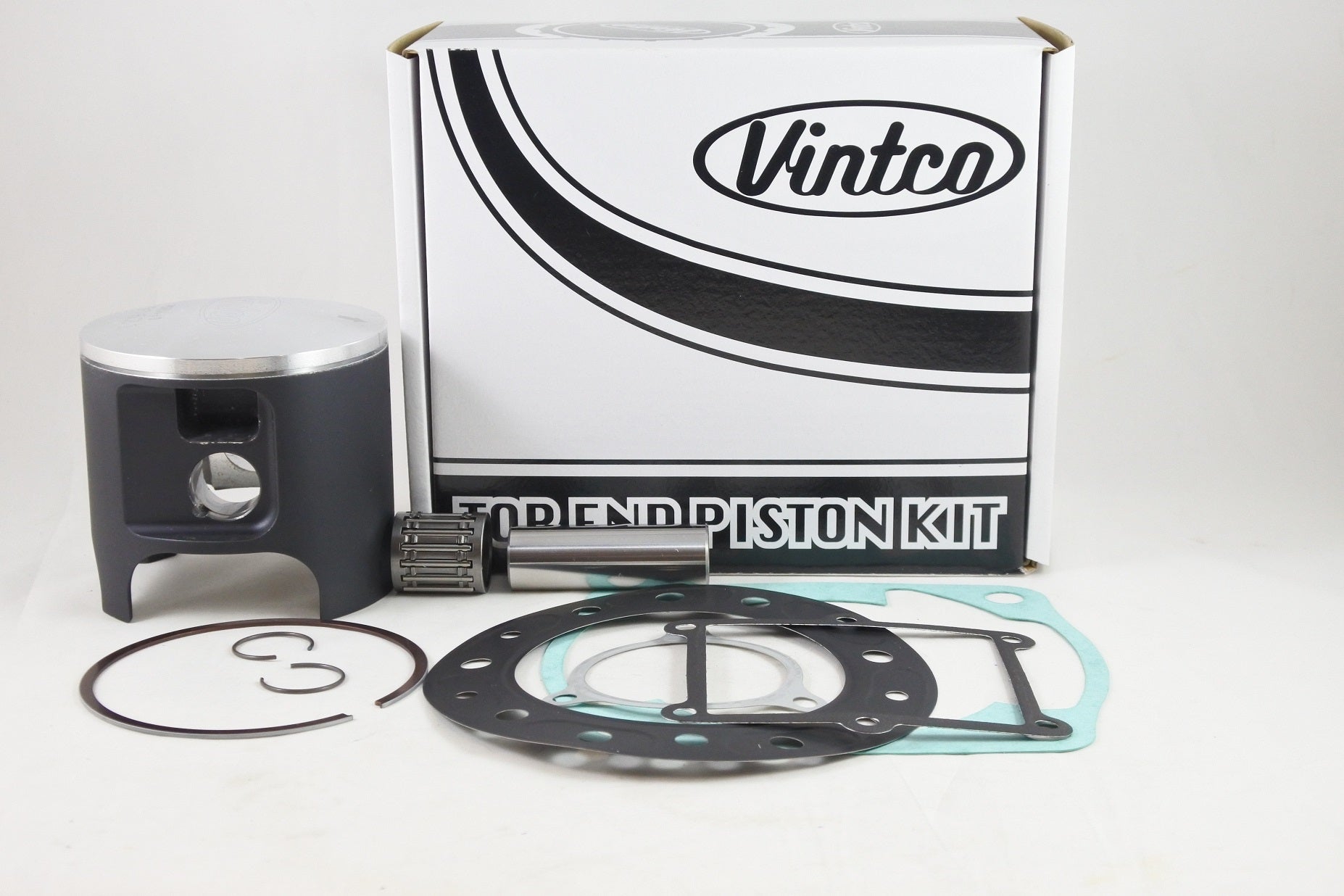

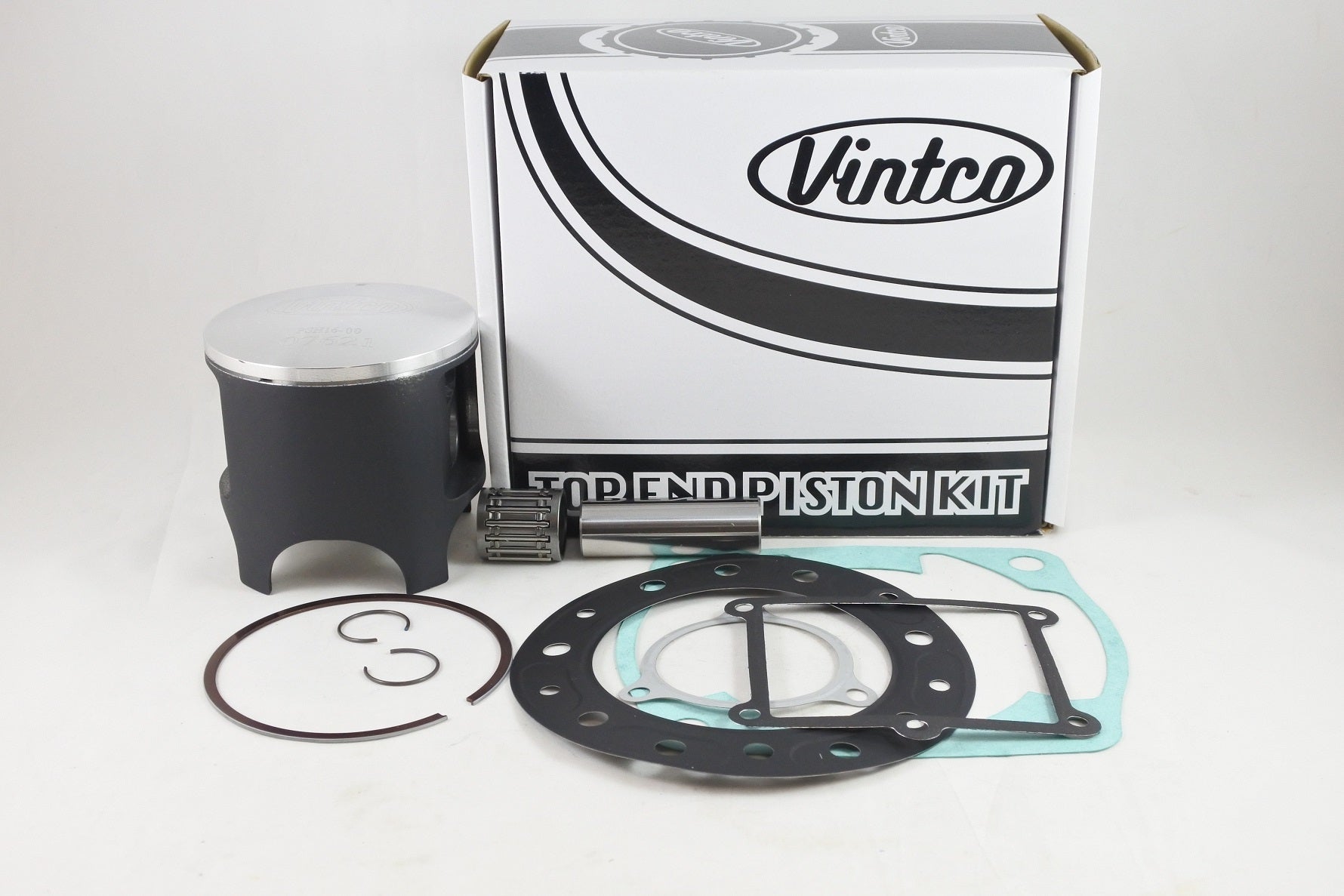

TOP END PISTON KIT 92-93 HONDA CR 500 88.92mm STANDARD VINTCO KTH32-00

VintCo KTH32-00 is a complete top end piston kit for 1992-1993 Honda CR500 models in standard 88.92 mm size. It is supplied for top end rebuild work and includes the piston, rings, pin, clips, wrist pin bearing, and a full top-end gasket set comprising the head, base, intake, and exhaust pipe gaskets. The components are manufactured using modern materials and production methods for OEM-equivalent fit and performance, and the kit is priced at 10% less than purchasing the items individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust pipe gasket
• Intended for exact fitment using OEM cross-reference numbers
• Additional size options are available

Specifications

• VintCo Part Number: KTH32-00
• Standard piston size: 88.92 mm
• Piston clearance: 0.08 mm
• Forged piston
• Piston made in Germany
• MOS2-coated piston

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-380
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-ML3-790
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1992 Honda CR500
• 1993 Honda CR500
