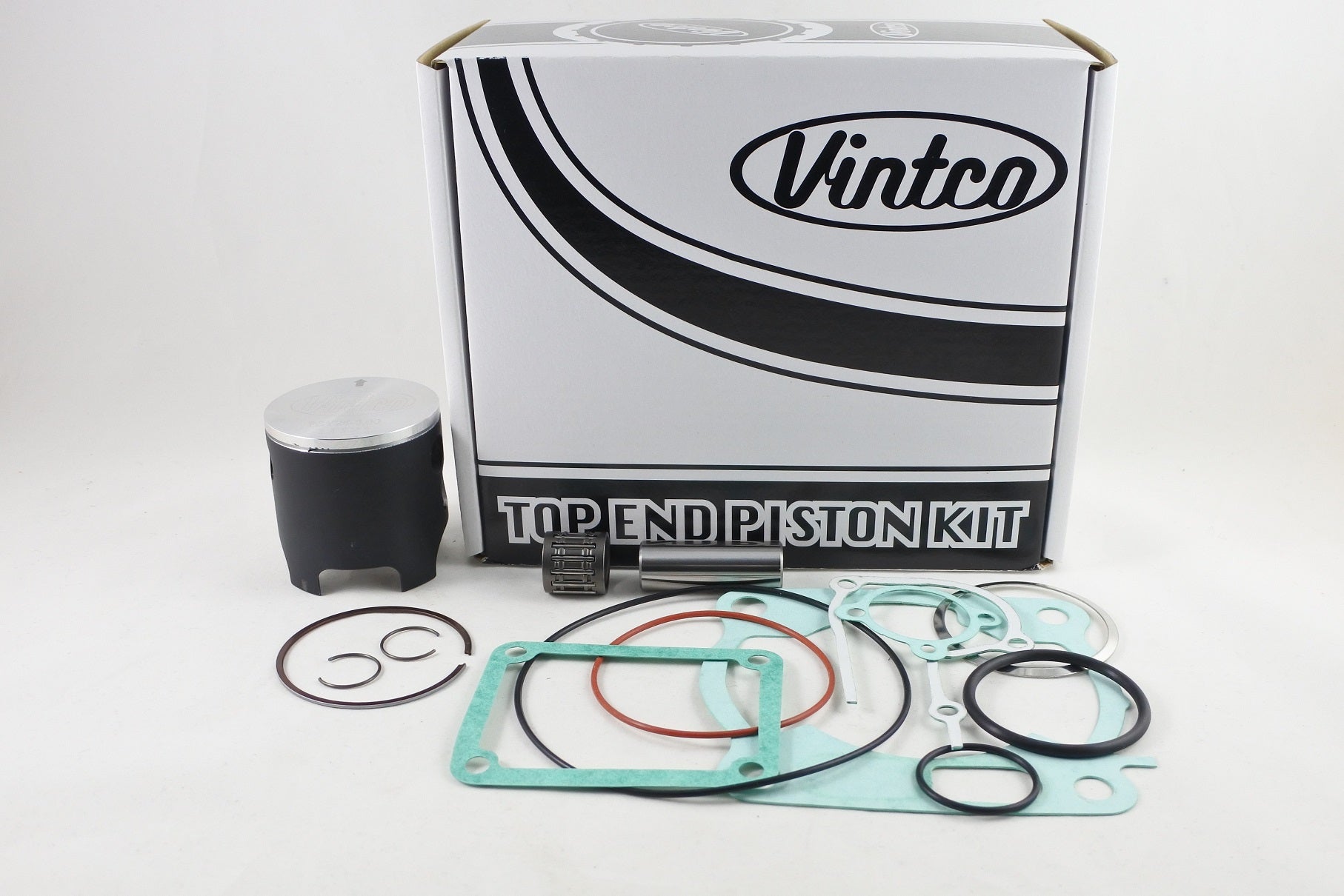

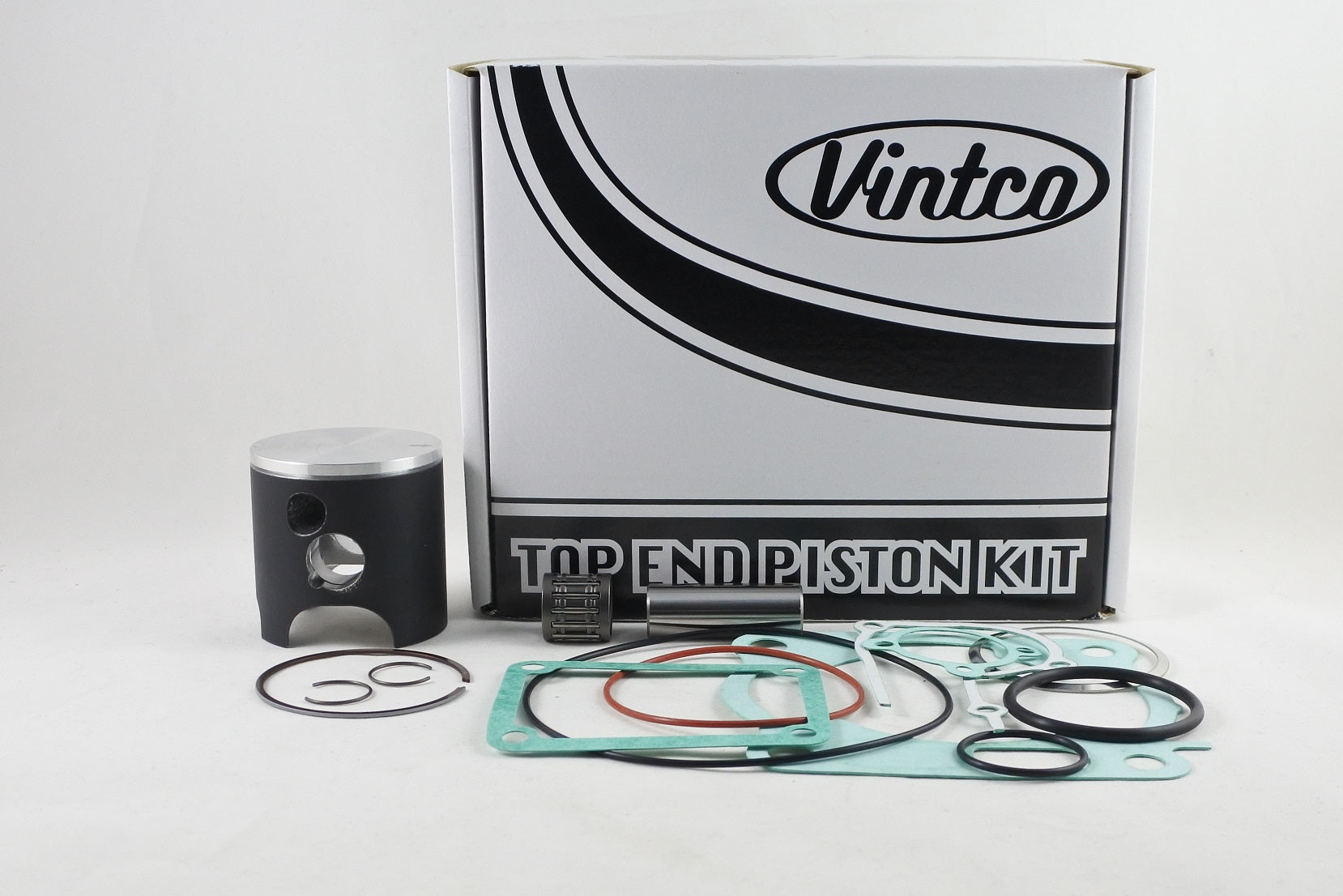

Top End Piston Kit 92-92 Yamaha YZ 125 56mm Standard Vintco KTY32-00

Top end piston kit for the 1992 Yamaha YZ125, supplied in a standard 56 mm size for top-end service work. The kit includes a forged piston made in Germany with an MOS2 coating for running-in, together with the required gaskets, two O-rings and a wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the items individually.

Features

• Complete top end piston kit for top-end rebuild work
• Includes forged piston
• Includes head gaskets
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gaskets
• Includes holder gasket
• Includes two O-rings
• Includes YPVS housing gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY32-00
• Piston size: 56 mm standard
• Piston measured size: 55.96 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head Gasket: 93211-07720-00
• Head Gasket: 93210-65721-00
• Base Gasket: 1LX-11351-10-00
• Intake Gasket: 2K&-13621-10-00
• Exhaust Pipe Gasket: 3R3-14613-00-00
• Exhaust Pipe Gasket: 93210-45742-00
• Holder Gasket: 4DB-1131N-00-00
• O-Ring: 93210-27672-00
• YPVS Housing Gasket: 4DB-11993-01-00

Vehicle Fitments

• 1992 Yamaha YZ125
