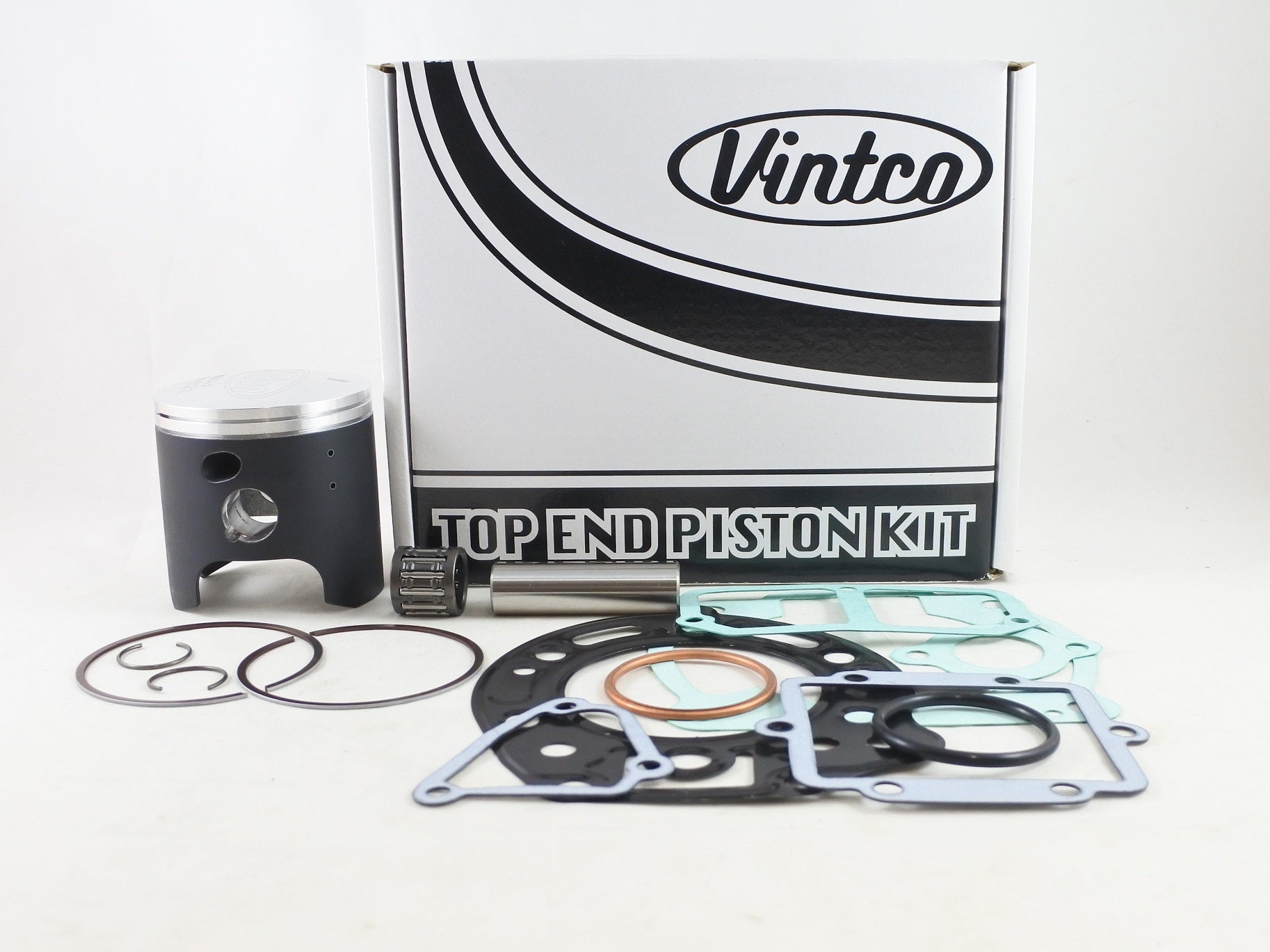

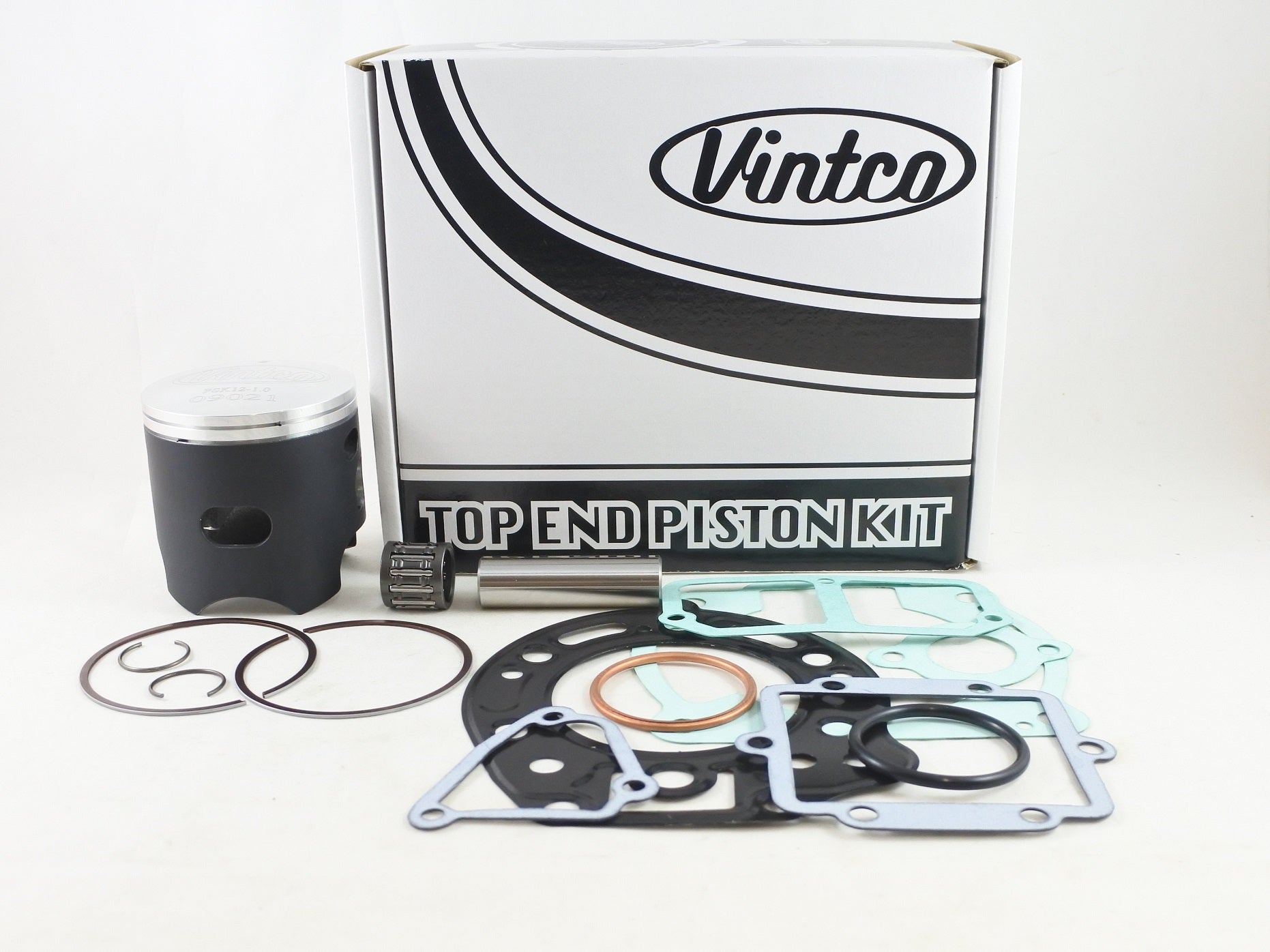

Top End Piston Kit 89-94 Kawasaki Kdx 200 67.0mm Vintco KTK13-1.0

VintCo top end piston kit KTK13-1.0 is a 67.0 mm service kit for 1989-1994 Kawasaki KDX200 models. It is supplied as a complete top end package with a forged piston, wrist pin bearing, and the associated head, base, intake, exhaust and cylinder cover gaskets, plus exhaust pipe O-rings. Kit pricing is set at 10% below the combined price of the individual items.

Features

• Complete top end piston kit for 1989-1994 Kawasaki KDX200
• Includes forged piston with MOS2 break-in coating
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes 2 exhaust pipe O-rings
• Includes wrist pin bearing
• Includes cylinder cover gaskets

Specifications

• VintCo Part Number: KTK13-1.0
• Piston diameter: 67.0 mm
• Piston measured size: 66.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Coating: MOS2

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11004-1189
• Cylinder Base Gasket: 11060-1659
• Intake Gasket: 11009-1941
• Exhaust Pipe Gasket: 11009-1995
• Exhaust Pipe O-Ring: 670E3039
• Cylinder Cover Gasket: 11009-1934
• Cylinder Cover Gasket: 11009-1938
• Cylinder Cover Gasket: 11009-1993

Vehicle Fitments

• 1989 Kawasaki KDX200
• 1990 Kawasaki KDX200
• 1991 Kawasaki KDX200
• 1992 Kawasaki KDX200
• 1993 Kawasaki KDX200
• 1994 Kawasaki KDX200
