Top End Piston Kit 89-90 Suzuki RM 80 49.00mm 1.5mm Over Vintco KTS14-1.5
  • Top End Piston Kit 89-90 Suzuki RM 80 49.00mm 1.5mm Over Vintco KTS14-1.5
  • Top End Piston Kit 89-90 Suzuki RM 80 49.00mm 1.5mm Over Vintco KTS14-1.5
  • Top End Piston Kit 89-90 Suzuki RM 80 49.00mm 1.5mm Over Vintco KTS14-1.5
  • Top End Piston Kit 89-90 Suzuki RM 80 49.00mm 1.5mm Over Vintco KTS14-1.5
Top End Piston Kit 89-90 Suzuki RM 80 49.00mm 1.5mm Over Vintco KTS14-1.5

Top End Piston Kit 89-90 Suzuki RM 80 49.00mm 1.5mm Over Vintco KTS14-1.5

£148.23 GBP
Taxes included. Shipping calculated at checkout.

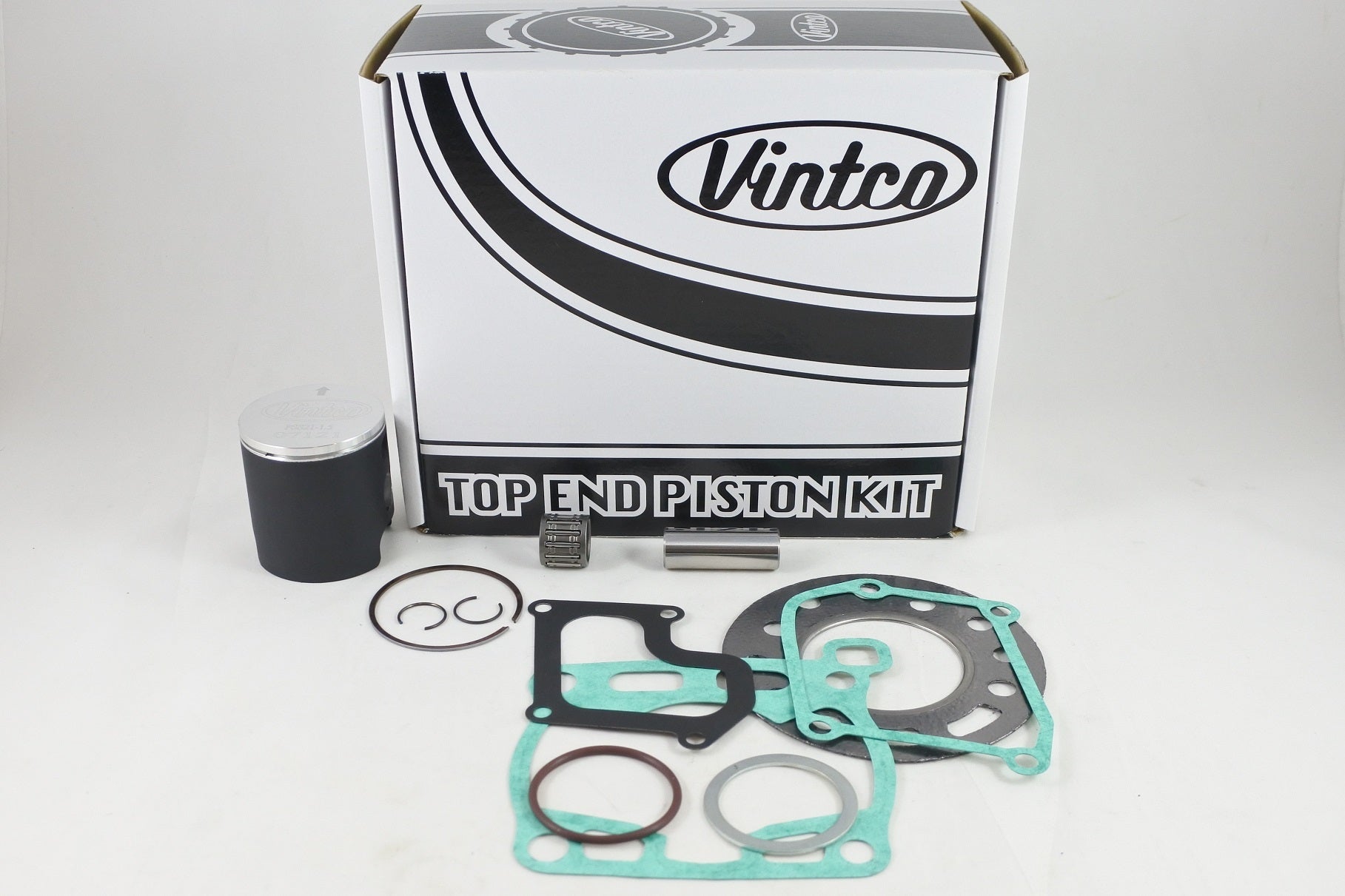

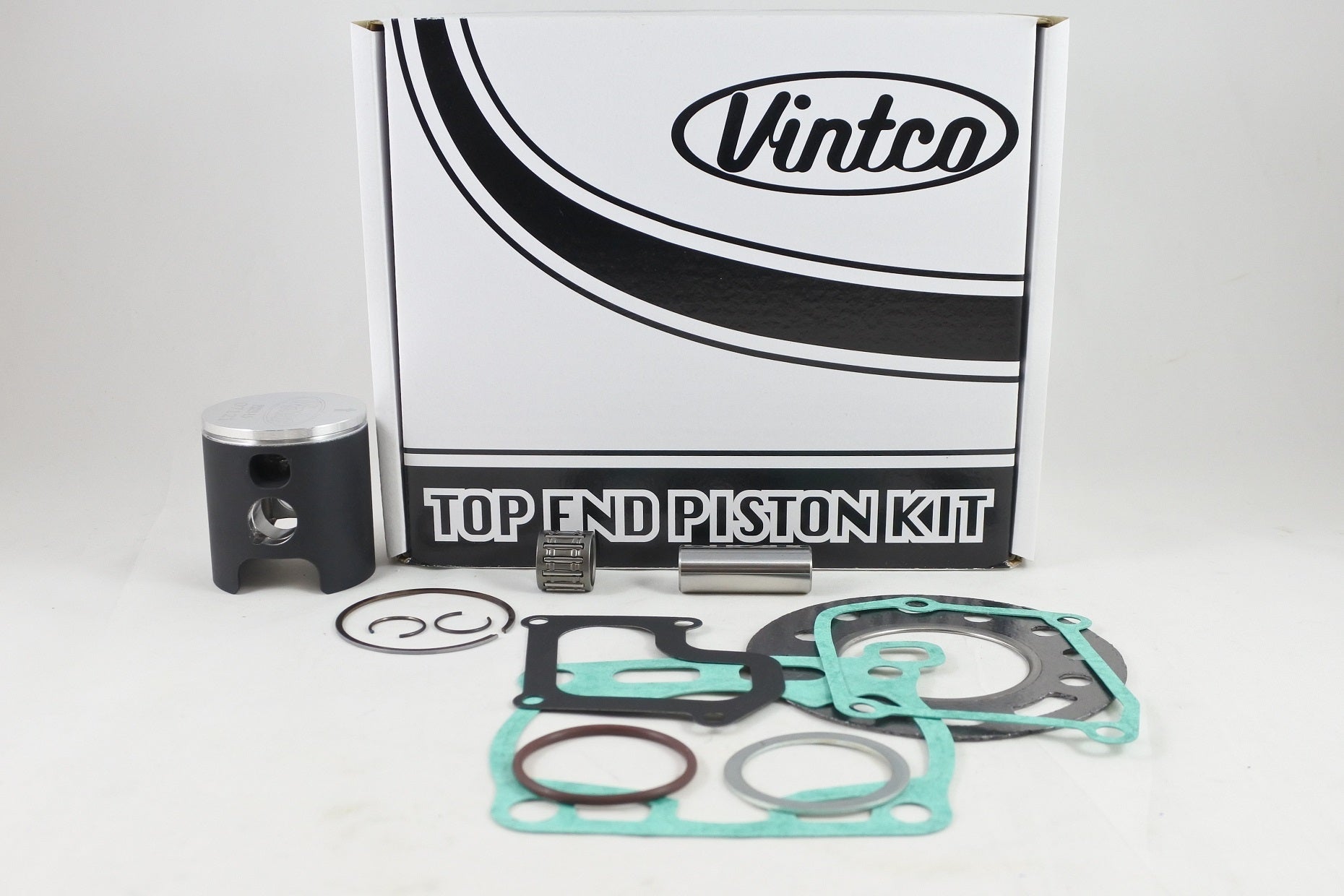

Top end piston kit for 1989-1990 Suzuki RM80 models, supplied as a complete top end service set with piston, gaskets and wrist pin bearing. The kit price includes a 10% reduction compared with purchasing the items individually, and it is intended for +1.5 mm over applications.

Features

  • Complete top end kit
  • Includes piston
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes two cylinder cover gaskets
  • Includes two exhaust pipe gaskets
  • Includes wrist pin bearing
  • Piston coating supports running-in

Specifications

  • VintCo Part Number: KTS14-1.5
  • Piston diameter: 49.00 mm
  • Oversize: +1.5 mm
  • Piston clearance: 0.05 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 11141-02B60
  • Cylinder Base Gasket: 11241-03B01
  • Cylinder Cover Gasket: 11233-02B42
  • Cylinder Cover Gasket: 11238-01B30-H17
  • Exhaust Pipe Gasket: 14171-02B40
  • Exhaust Pipe Gasket: 14172-02B40

Vehicle Fitments

  • 1989 Suzuki RM80
  • 1990 Suzuki RM80
