Top End Piston Kit 89-90 Suzuki RM 80 48.00mm +1.0mm Over Vintco KTS14-1.0
  • Top End Piston Kit 89-90 Suzuki RM 80 48.00mm +1.0mm Over Vintco KTS14-1.0
  • Top End Piston Kit 89-90 Suzuki RM 80 48.00mm +1.0mm Over Vintco KTS14-1.0
  • Top End Piston Kit 89-90 Suzuki RM 80 48.00mm +1.0mm Over Vintco KTS14-1.0
  • Top End Piston Kit 89-90 Suzuki RM 80 48.00mm +1.0mm Over Vintco KTS14-1.0
Top End Piston Kit 89-90 Suzuki RM 80 48.00mm +1.0mm Over Vintco KTS14-1.0

Top End Piston Kit 89-90 Suzuki RM 80 48.00mm +1.0mm Over Vintco KTS14-1.0

£148.23 GBP
Taxes included. Shipping calculated at checkout.

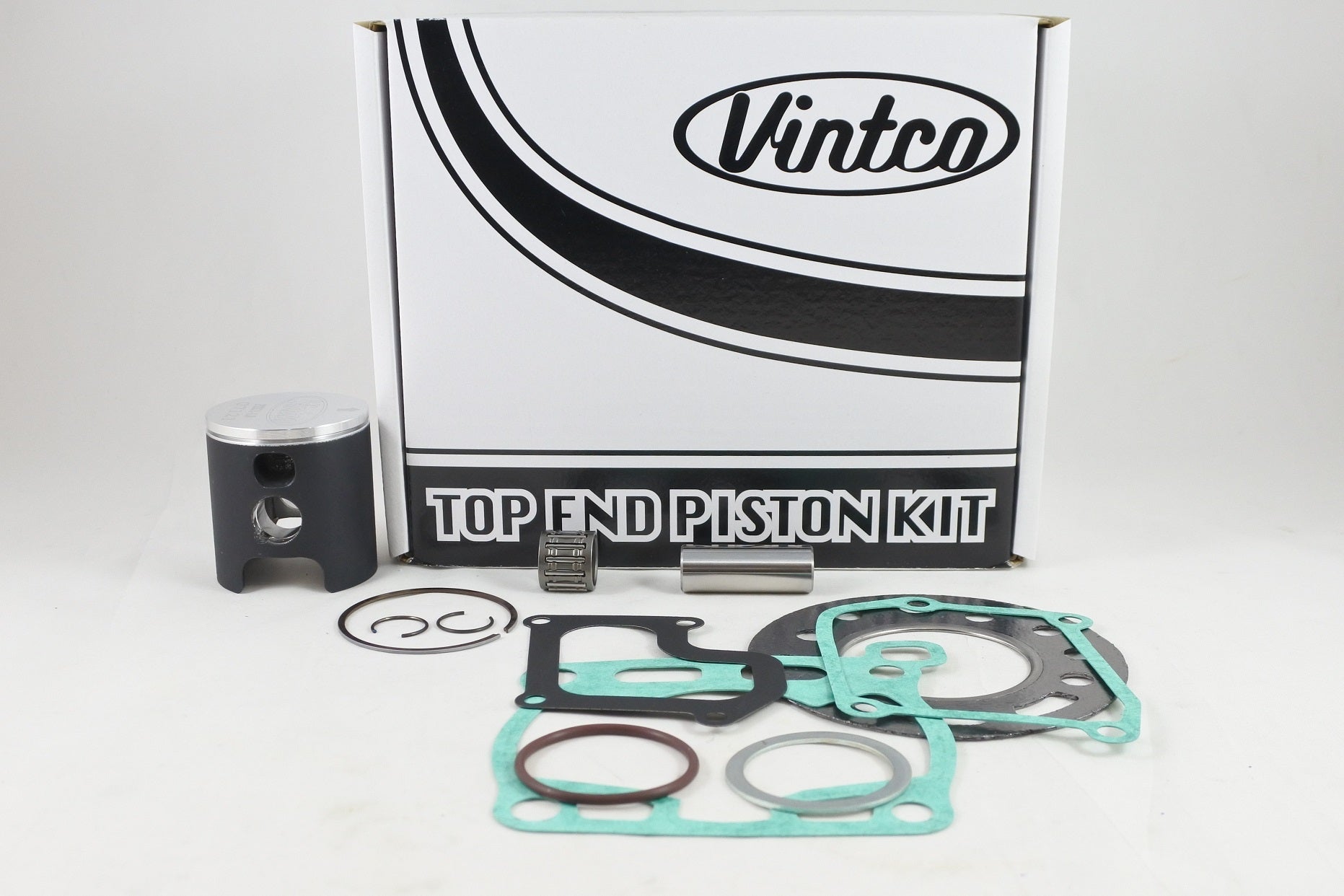

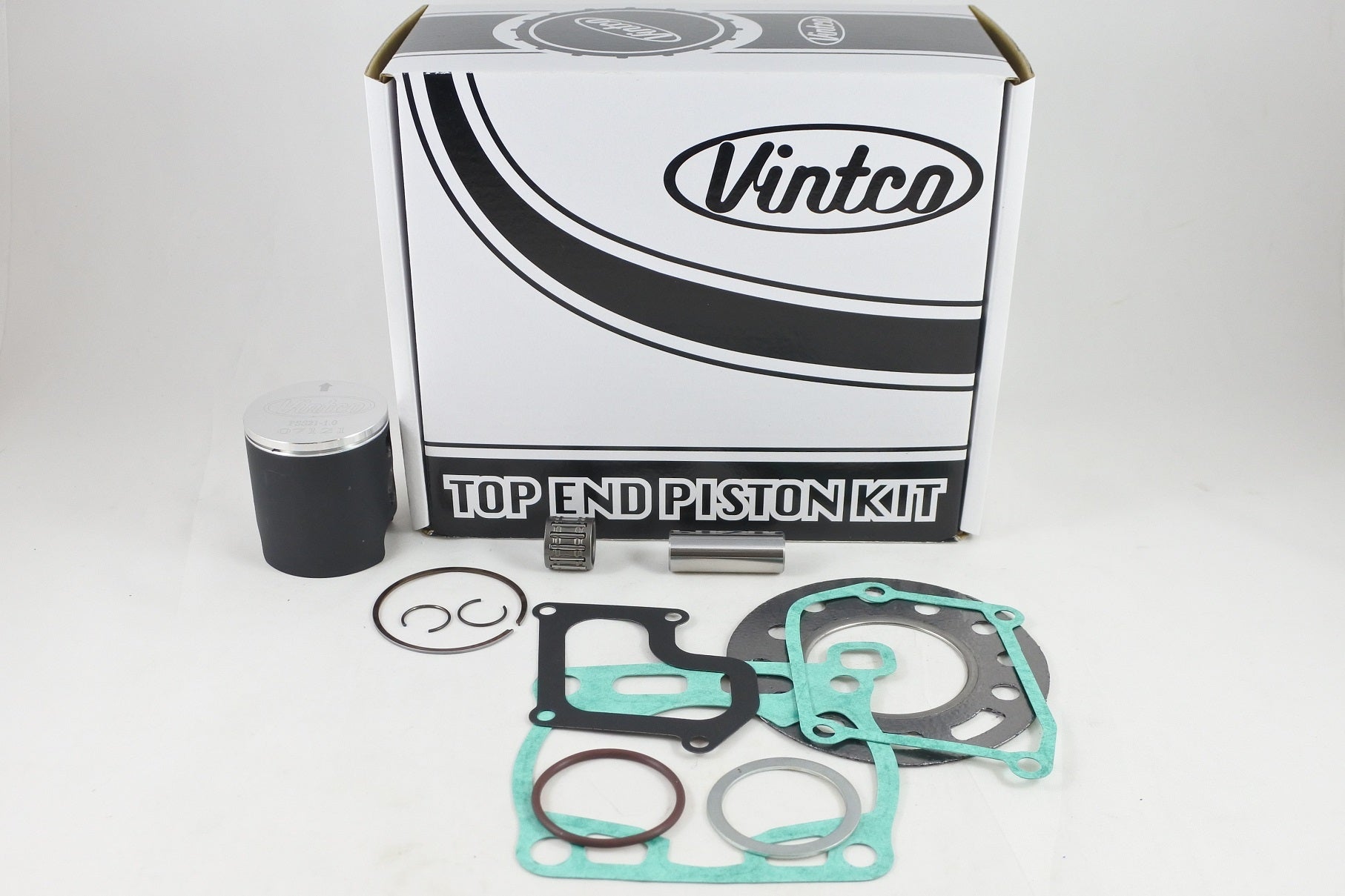

VintCo KTS14-1.0 is a top end piston kit for 1989-1990 Suzuki RM80 models, supplied as a package including a forged piston, cylinder and exhaust gaskets, and a wrist pin bearing. The kit is listed as 48.00 mm +1.0 mm over, with the piston specified at 48.5 mm and 0.05 mm clearance.

Features

  • Complete top end piston kit for Suzuki RM80 applications
  • Kit price includes a 10% discount compared with purchasing the items individually
  • Forged piston
  • Piston manufactured in Germany
  • MOS2-coated piston for running-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes two cylinder cover gaskets
  • Includes two exhaust pipe gaskets
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTS14-1.0
  • Size designation: 48.00 mm +1.0 mm over
  • Piston diameter: 48.5 mm
  • Piston clearance: 0.05 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: OE 11141-02B60
  • Cylinder base gasket: OE 11241-03B01
  • Cylinder cover gasket: OE 11233-02B42
  • Cylinder cover gasket: OE 11238-01B30-H17
  • Exhaust pipe gasket: OE 14171-02B40
  • Exhaust pipe gasket: OE 14172-02B40

Vehicle Fitments

  • 1989 Suzuki RM80
  • 1990 Suzuki RM80
