TOP END PISTON KIT 89-90 SUZUKI RM 80 48.00mm 0.5mm OVER VINTCO KTS14-0.5
  • TOP END PISTON KIT 89-90 SUZUKI RM 80 48.00mm 0.5mm OVER VINTCO KTS14-0.5
  • TOP END PISTON KIT 89-90 SUZUKI RM 80 48.00mm 0.5mm OVER VINTCO KTS14-0.5
  • TOP END PISTON KIT 89-90 SUZUKI RM 80 48.00mm 0.5mm OVER VINTCO KTS14-0.5
  • TOP END PISTON KIT 89-90 SUZUKI RM 80 48.00mm 0.5mm OVER VINTCO KTS14-0.5
TOP END PISTON KIT 89-90 SUZUKI RM 80 48.00mm 0.5mm OVER VINTCO KTS14-0.5

TOP END PISTON KIT 89-90 SUZUKI RM 80 48.00mm 0.5mm OVER VINTCO KTS14-0.5

£148.23 GBP
Taxes included. Shipping calculated at checkout.

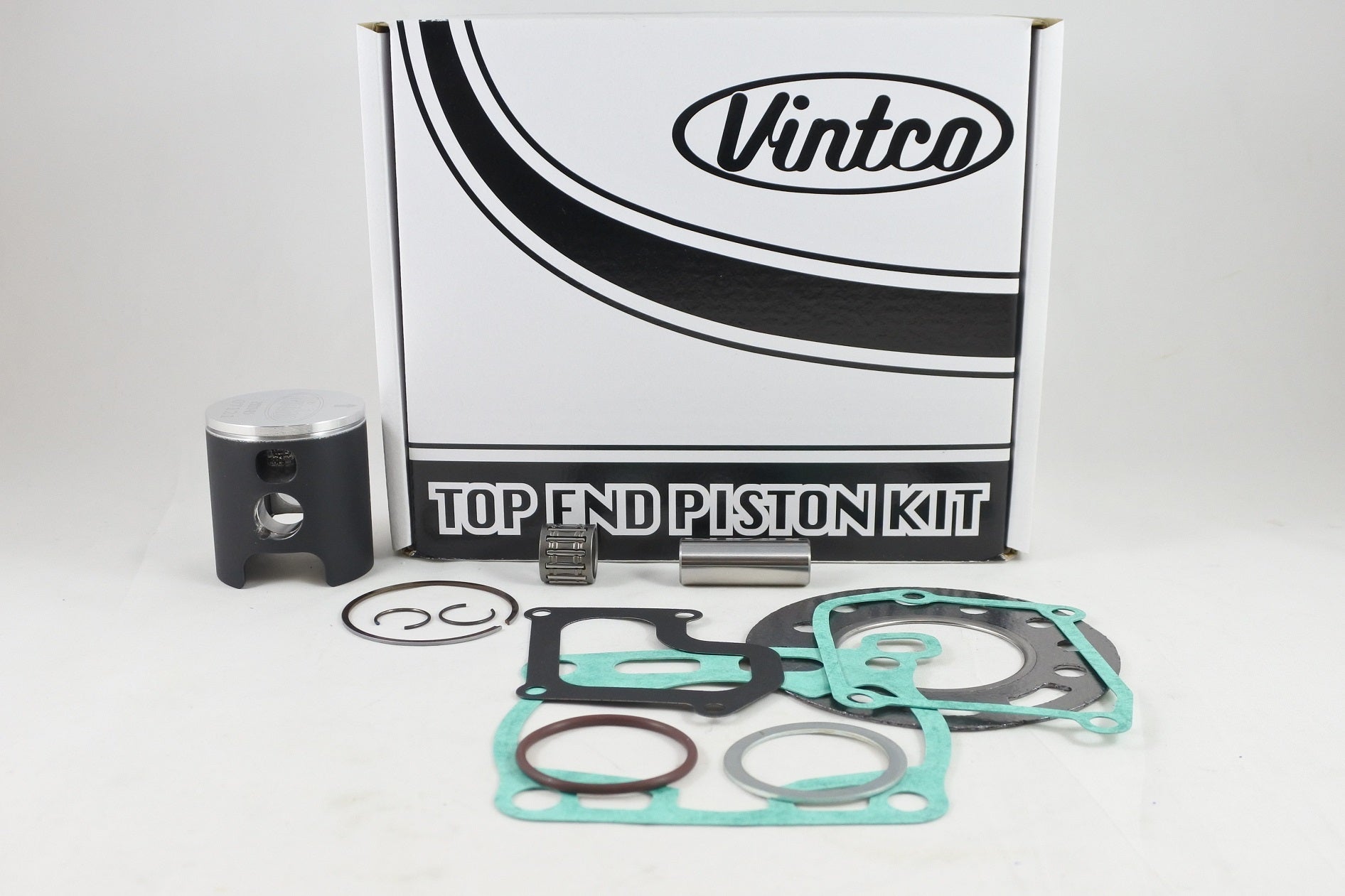

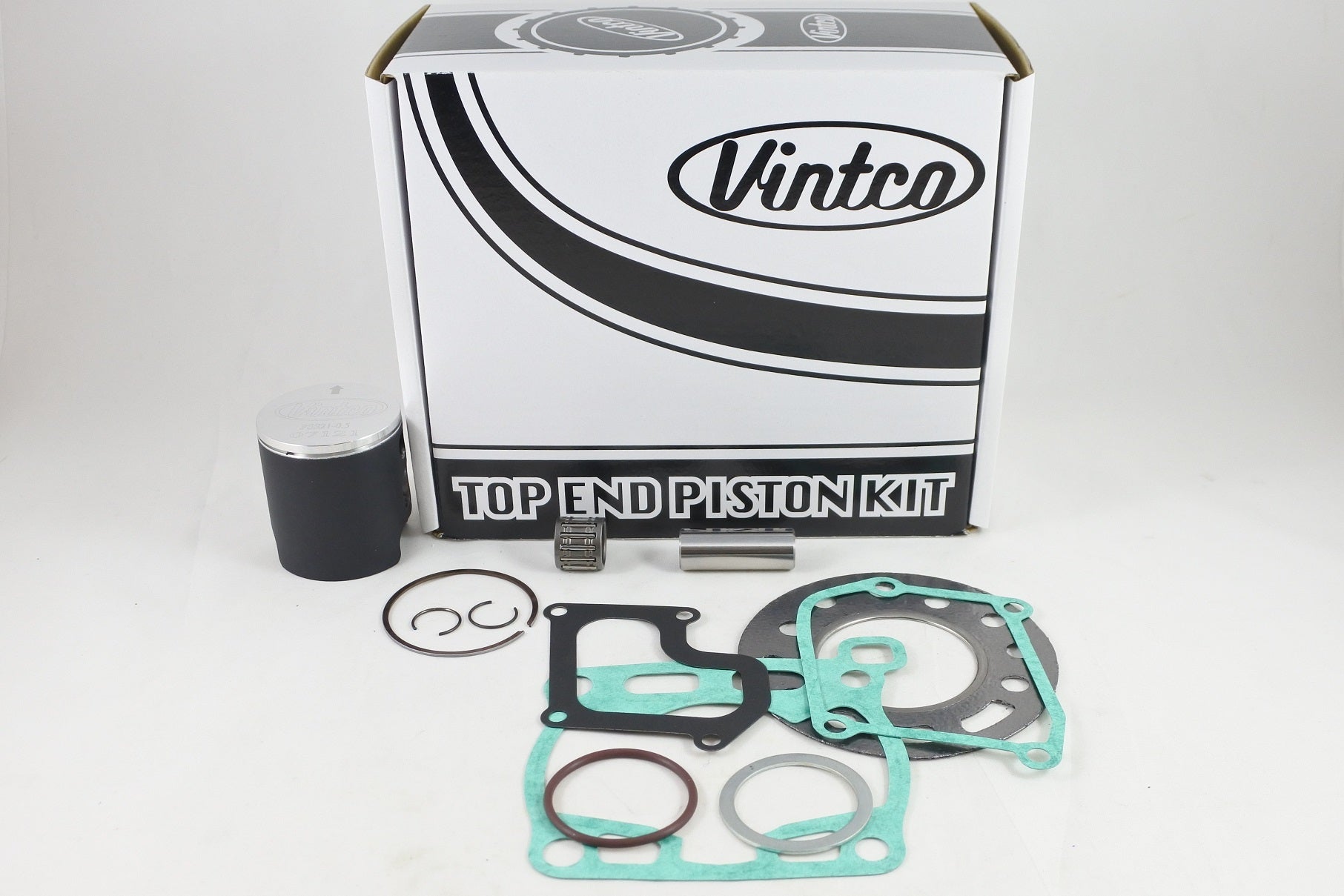

Top end piston kit for 1989-1990 Suzuki RM80 models, supplied as a matched rebuild set with a forged piston made in Germany, cylinder and exhaust gaskets, and a wrist pin bearing. The piston is MOS2 coated for running-in, and the kit price is 10% lower than purchasing the included items individually.

Features

  • Complete top end rebuild kit
  • Includes forged piston, gasket set and wrist pin bearing
  • MOS2-coated piston for running-in

Specifications

  • VintCo Part Number: KTS14-0.5
  • Piston size: +0.5 mm oversize
  • Piston diameter: 48.00 mm
  • Piston clearance: 0.05 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 11141-02B60
  • Cylinder base gasket: 11241-03B01
  • Cylinder cover gasket: 11233-02B42
  • Cylinder cover gasket: 11238-01B30-H17
  • Exhaust pipe gasket: 14171-02B40
  • Exhaust pipe gasket: 14172-02B40

Vehicle Fitments

  • 1989 Suzuki RM80
  • 1990 Suzuki RM80
