Top End Piston Kit 89-90 Suzuki RM 250 67.02mm Standard Vintco KTS10-00

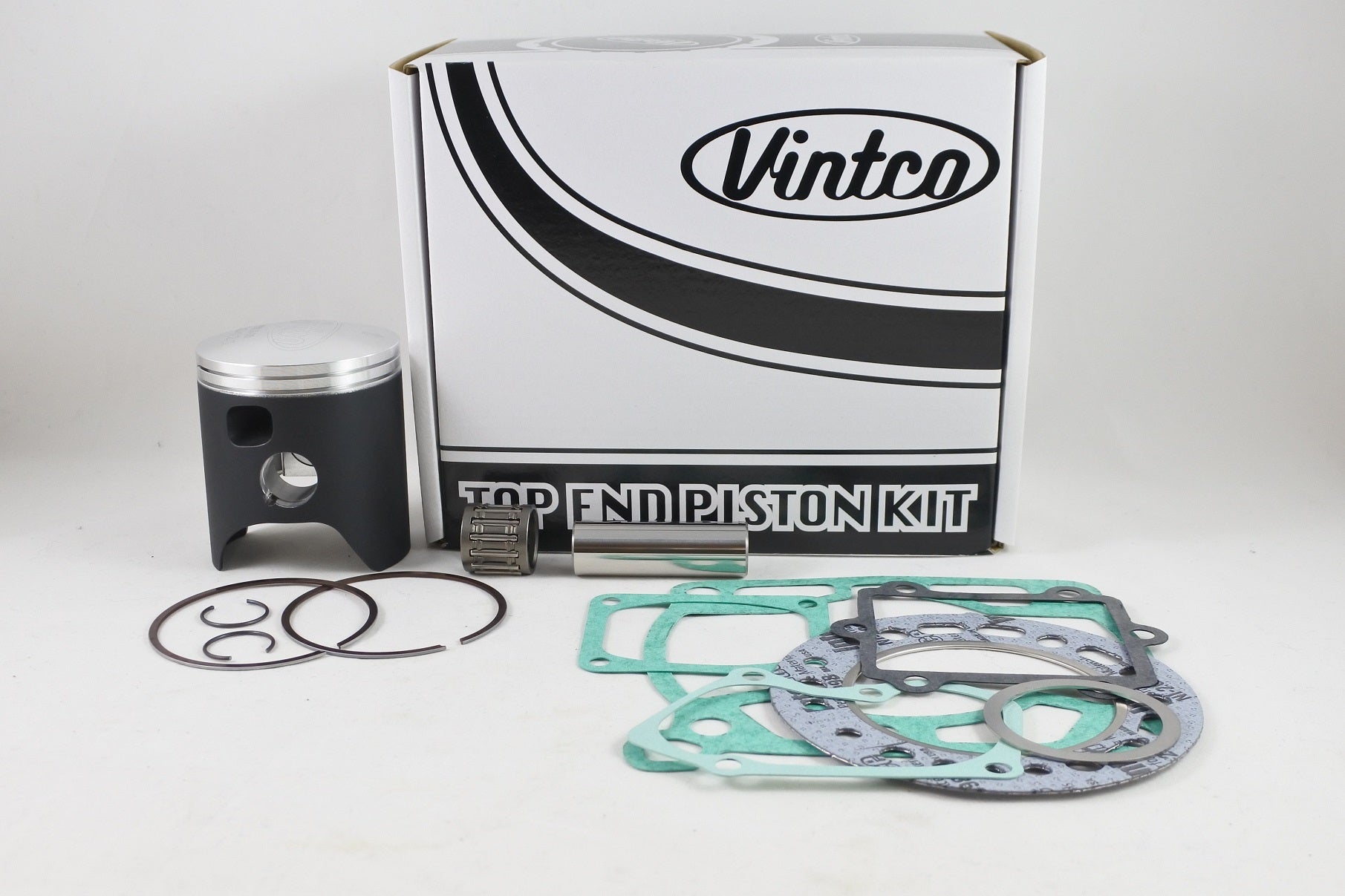

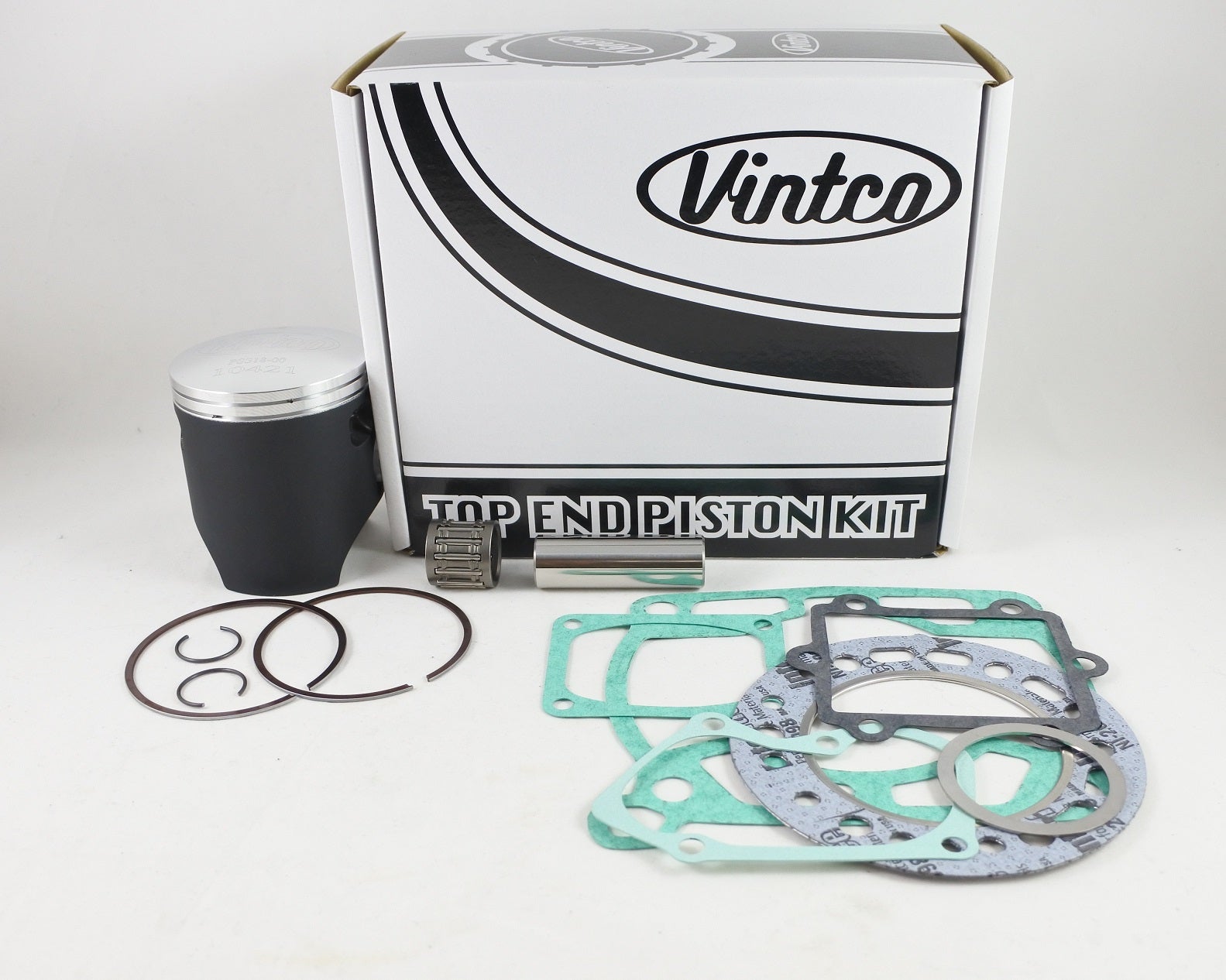

VintCo KTS10-00 is a standard-bore 67.02 mm top end piston kit for 1989-1990 Suzuki RM250 models. This complete rebuild kit includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top end gasket set. It is manufactured using modern materials and production methods for OEM-comparable fitment and performance, with OEM reference part numbers provided for application verification.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing (top end bearing)
• Includes full top end gasket set
• Intended for top end rebuild work
• OEM-comparable fitment and performance
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS10-00
• Product type: Top end piston kit
• Bore size: Standard 67.02 mm
• Piston diameter: 66.96 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston manufacture: Germany
• Cylinder head gasket bore: 67 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11141-28C10
• Cylinder base gasket: 11241-28C11
• Intake gasket: 13156-01C10
• Cylinder cover gasket: 11233-29E00
• Cylinder cover gasket: 11238-05D01
• Exhaust pipe gasket: 14172-28C30

Vehicle Fitments

• 1989 Suzuki RM250
• 1990 Suzuki RM250
