Top End Piston Kit 89-89 Suzuki RM 125 54.02mm Standard Vintco KTS25-00
  • Top End Piston Kit 89-89 Suzuki RM 125 54.02mm Standard Vintco KTS25-00
  • Top End Piston Kit 89-89 Suzuki RM 125 54.02mm Standard Vintco KTS25-00
  • Top End Piston Kit 89-89 Suzuki RM 125 54.02mm Standard Vintco KTS25-00
  • Top End Piston Kit 89-89 Suzuki RM 125 54.02mm Standard Vintco KTS25-00
Top End Piston Kit 89-89 Suzuki RM 125 54.02mm Standard Vintco KTS25-00

Top End Piston Kit 89-89 Suzuki RM 125 54.02mm Standard Vintco KTS25-00

£176.58 GBP
Taxes included. Shipping calculated at checkout.

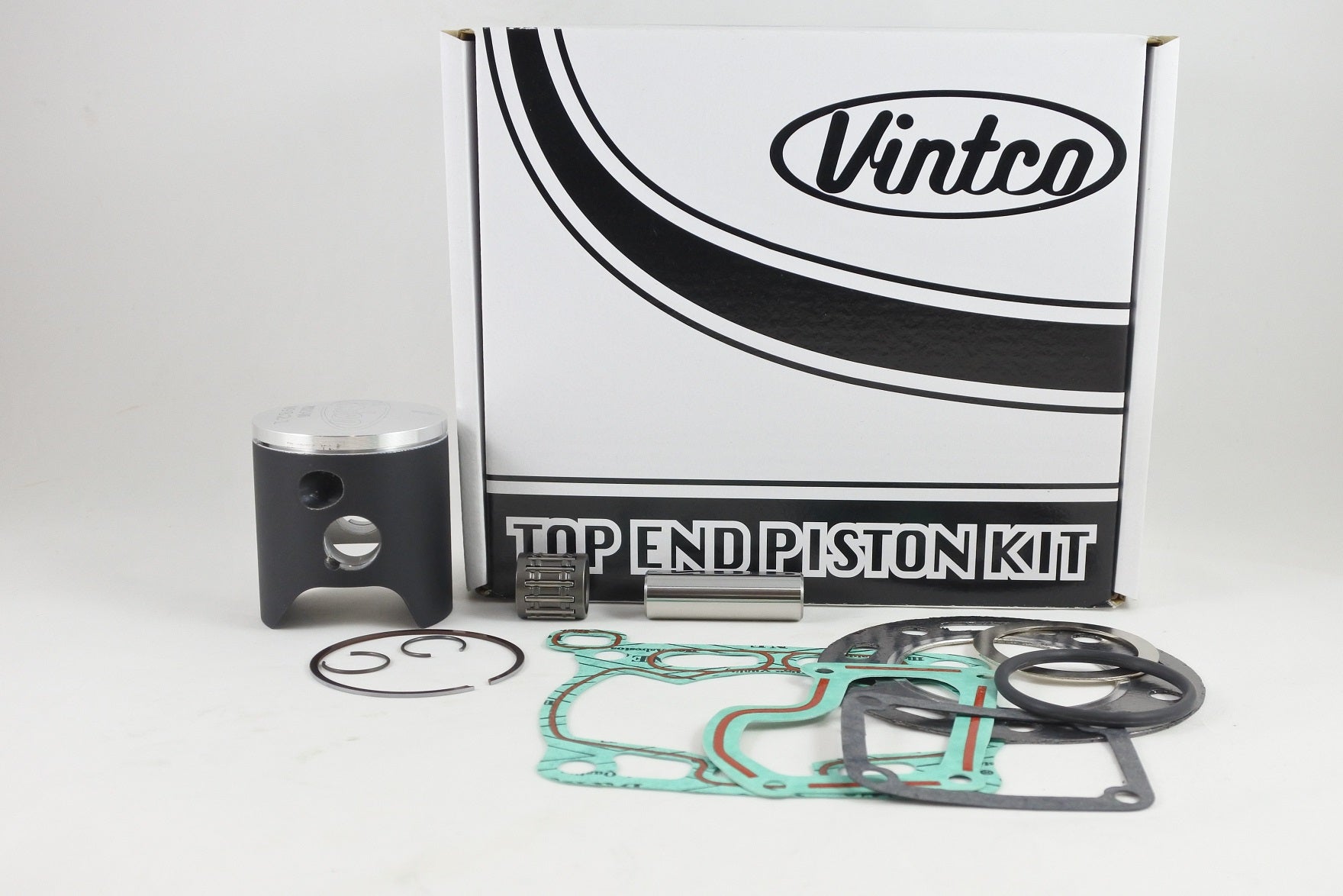

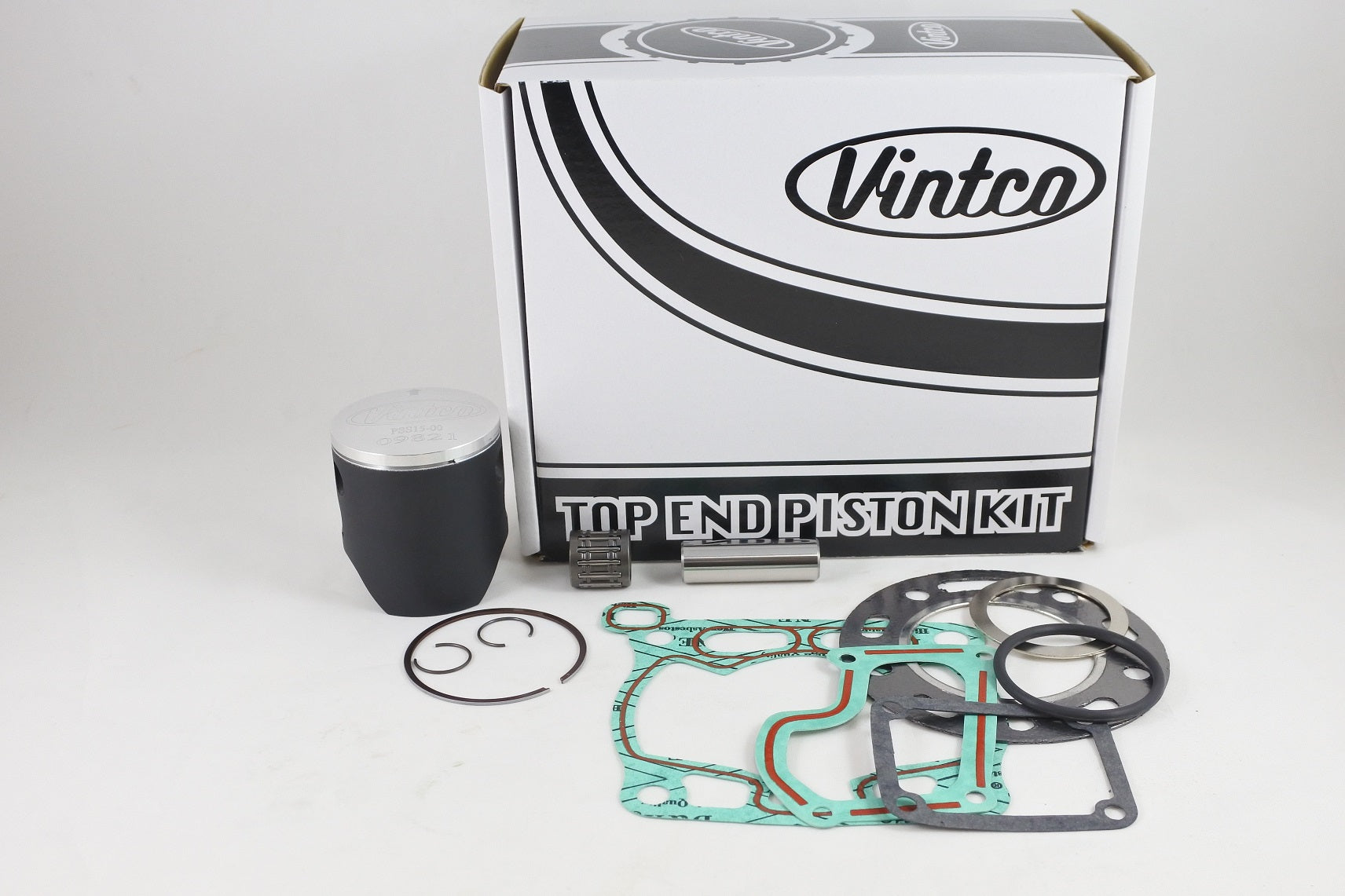

VintCo top end piston kit KTS25-00 is a standard-size rebuild kit for the 1989 Suzuki RM125. It includes a forged piston, the required top end gaskets and a wrist pin bearing, providing the main components needed for top end service in one kit.

Features

  • Top end piston kit for the 1989 Suzuki RM125
  • Includes forged piston
  • Includes head gasket
  • Includes base gasket
  • Includes cylinder cover gaskets
  • Includes exhaust gaskets
  • Includes wrist pin bearing
  • Kit price includes a 10% saving compared with individual items

Specifications

  • VintCo Part Number: KTS25-00
  • Standard size: 54.02 mm
  • Piston diameter: 53.97 mm
  • Piston clearance: 0.05 mm
  • Piston construction: Forged
  • Country of manufacture: Germany
  • Piston coating: MoS2

Cross-Reference OEM Part Numbers

  • Head Gasket: 11141-27C00
  • Base Gasket: 11241-27C10
  • Cylinder Cover Gasket: 11233-27C10
  • Cylinder Cover Gasket: 11238-01B30-H17
  • Exhaust Gasket: 14171-27C00
  • Exhaust Gasket: 14172-27C00

Vehicle Fitments

  • 1989 Suzuki RM125
