TOP END PISTON KIT 88-92 YAMAHA YZ 80 49mm 1.0mm OVER VINTCO KTY63-1.0
  • TOP END PISTON KIT 88-92 YAMAHA YZ 80 49mm 1.0mm OVER VINTCO KTY63-1.0
  • TOP END PISTON KIT 88-92 YAMAHA YZ 80 49mm 1.0mm OVER VINTCO KTY63-1.0
  • TOP END PISTON KIT 88-92 YAMAHA YZ 80 49mm 1.0mm OVER VINTCO KTY63-1.0
  • TOP END PISTON KIT 88-92 YAMAHA YZ 80 49mm 1.0mm OVER VINTCO KTY63-1.0
TOP END PISTON KIT 88-92 YAMAHA YZ 80 49mm 1.0mm OVER VINTCO KTY63-1.0

TOP END PISTON KIT 88-92 YAMAHA YZ 80 49mm 1.0mm OVER VINTCO KTY63-1.0

£133.11 GBP
Taxes included. Shipping calculated at checkout.

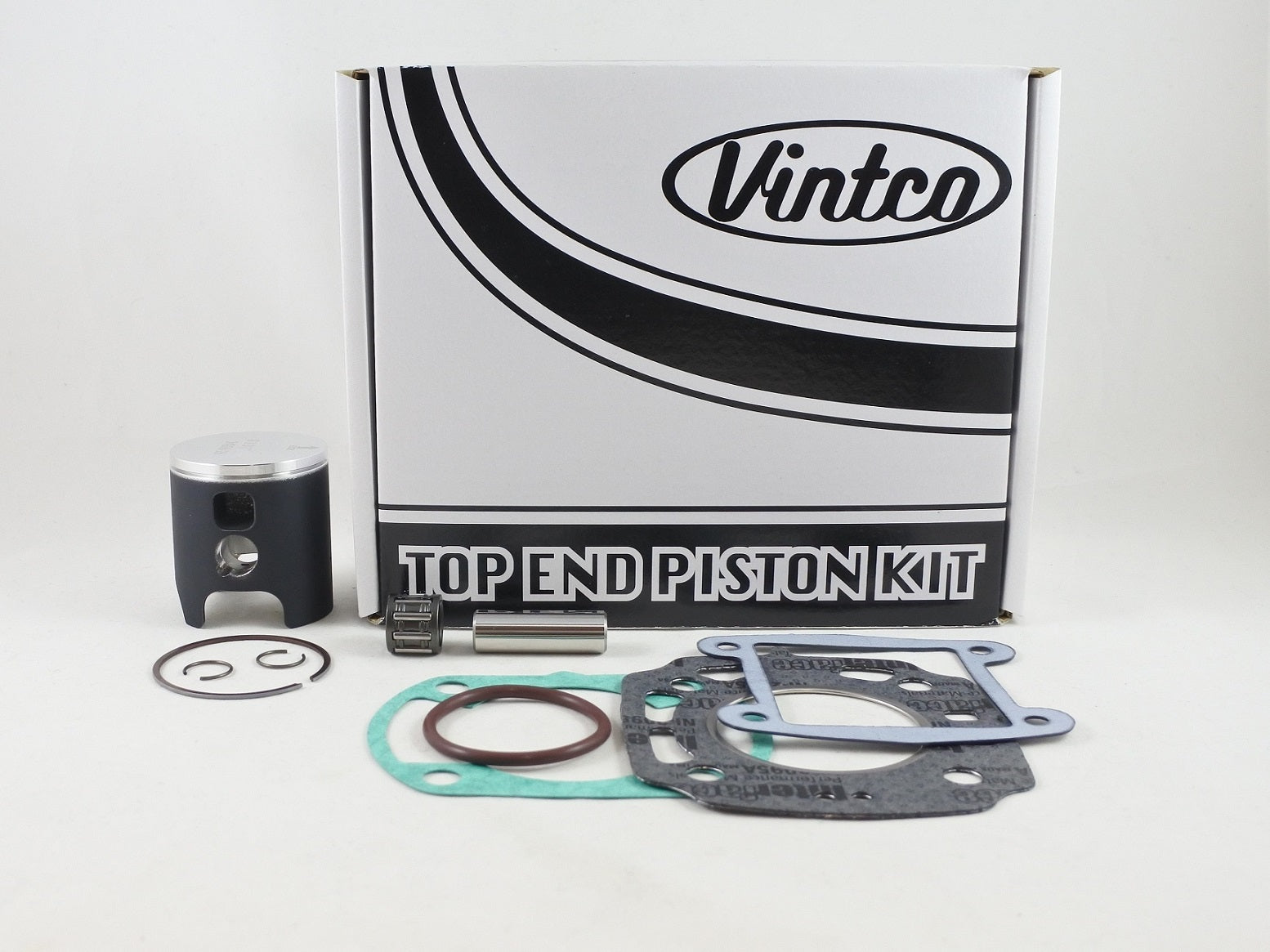

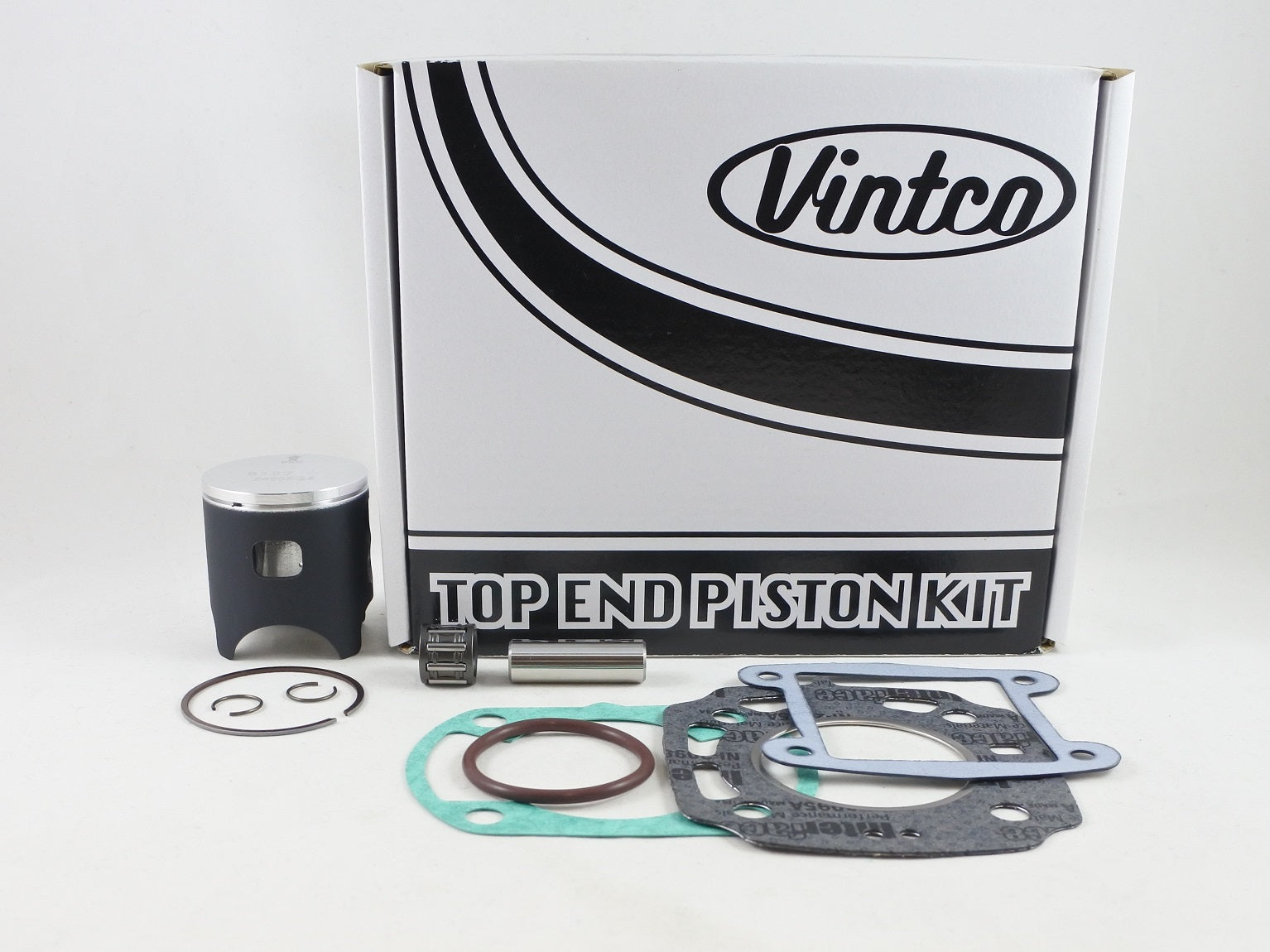

This VintCo top end piston kit suits Yamaha YZ80 models from 1988 to 1992 and is supplied as a 49 mm, 1.0 mm oversize kit with a piston, gasket set and wrist pin bearing. The kit price includes a 10% discount compared with purchasing the items individually.

Features

  • Complete top end kit for Yamaha YZ80 models
  • Piston coated for running-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Kit pricing includes a 10% discount over individual items

Specifications

  • VintCo Part Number: KTY63-1.0
  • Product type: Top End Piston Kit
  • Piston size: 49 mm
  • Oversize: 1.0 mm over
  • Piston measurement: 49.45 mm
  • Clearance: 0.05 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 1LR-11181-01-00
  • Cylinder base gasket: 4V0-11351-10-00
  • Reed valve gasket: 3JM-13621-00-00
  • Exhaust pipe gasket: 93210-40745-00

Vehicle Fitments

  • 1988 Yamaha YZ80
  • 1989 Yamaha YZ80
  • 1990 Yamaha YZ80
  • 1991 Yamaha YZ80
  • 1992 Yamaha YZ80
