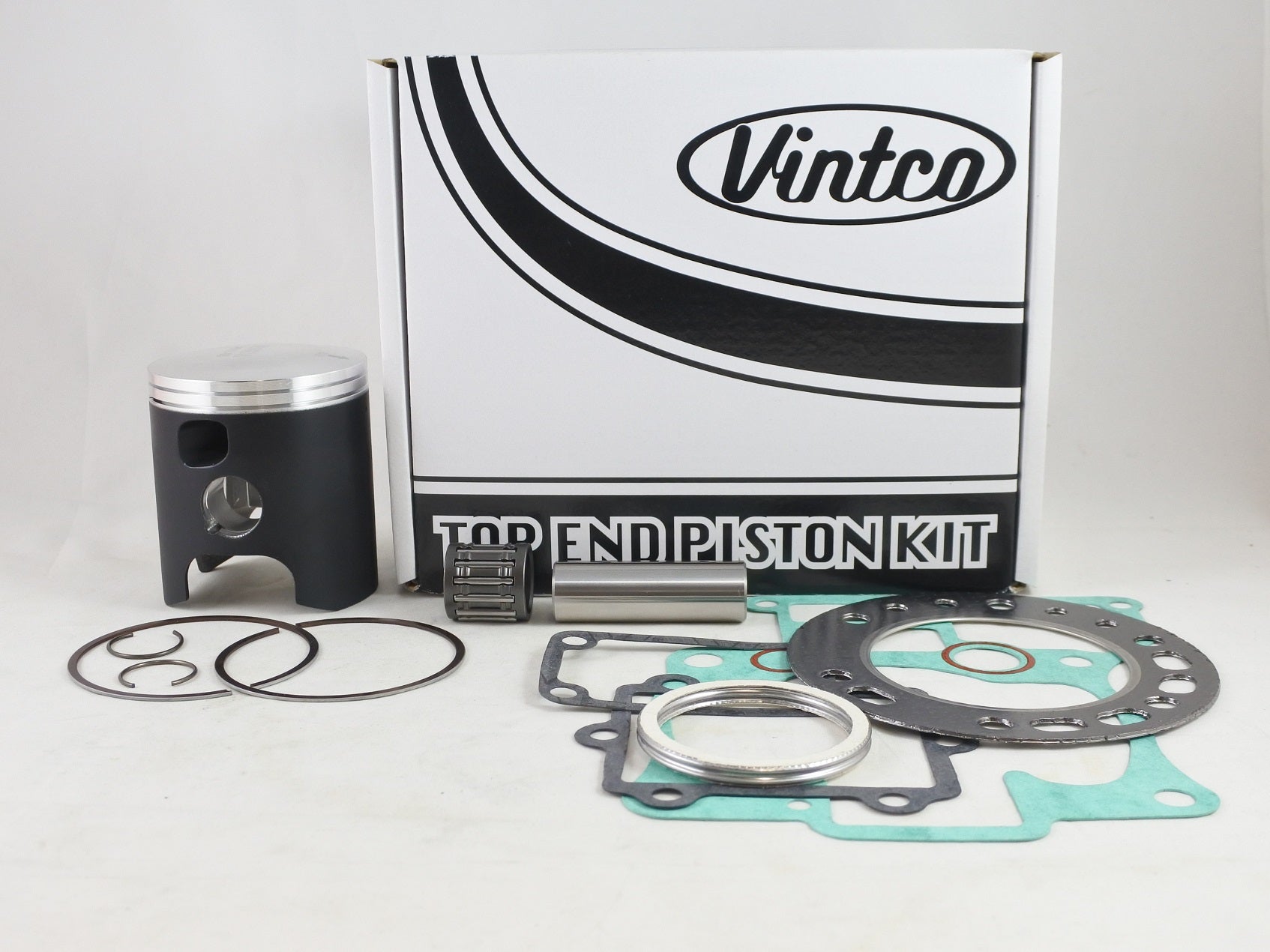

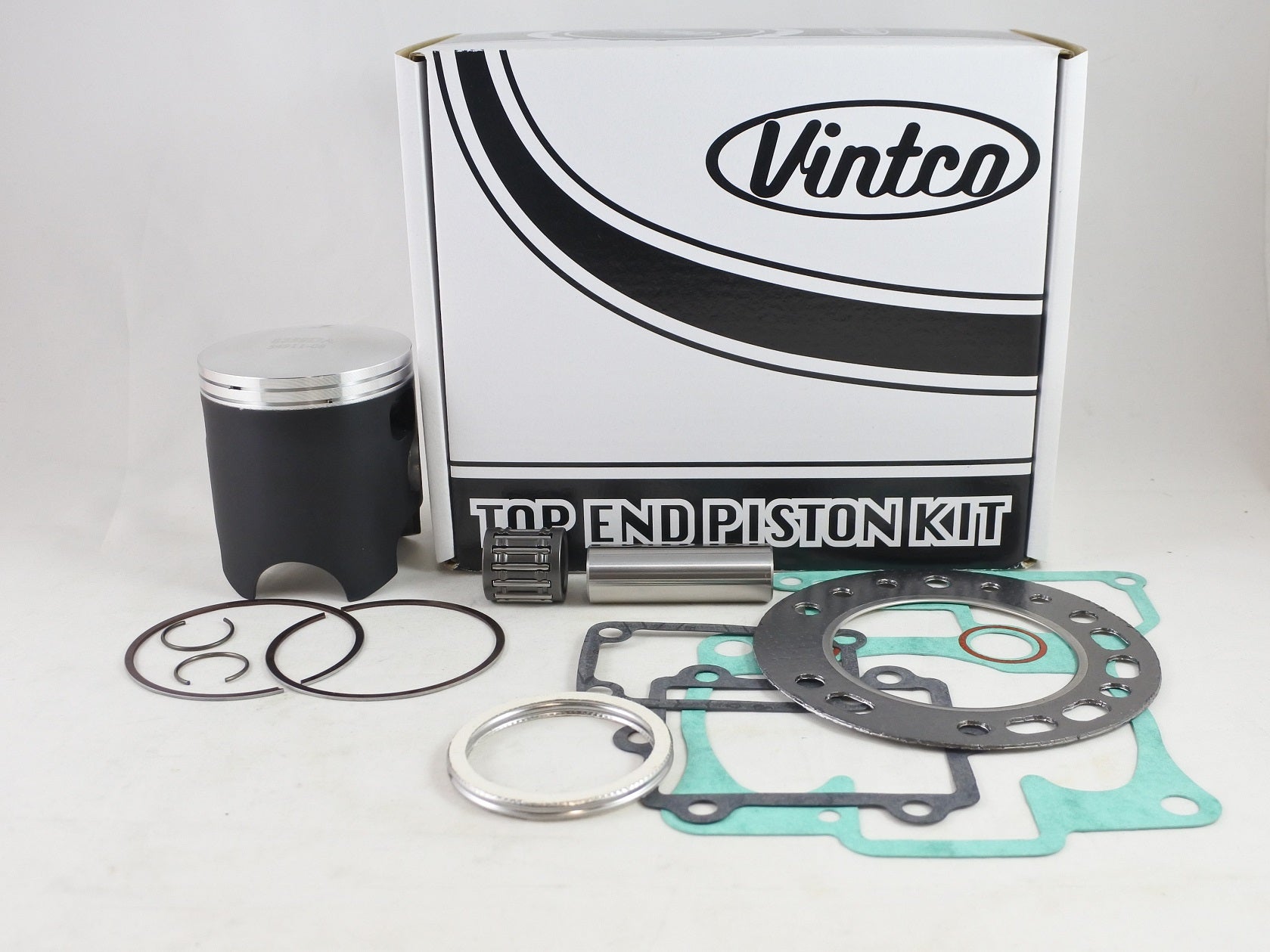

TOP END PISTON KIT 88-92 SUZUKI LT250R QUADRACER 67MM STANDARD VINTCO KTS28-00

This top end piston kit is designed for 1988–1992 Suzuki LT250R Quadracer models and is supplied for standard-bore top end service. It includes a forged piston manufactured in Germany with an MOS2 coating for running-in, together with the required gaskets and a wrist pin bearing. The kit price reflects a 10% reduction compared with purchasing the included items individually.

Features

• Complete top end piston kit for standard-bore service
• Includes forged piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes cylinder cover gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTS28-00
• Piston size: 67 mm standard
• Piston measured diameter: 66.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11141-01C01-H17
• Cylinder base gasket: 11241-01C10
• Intake gasket: 13156-01C10
• Exhaust pipe gasket: 14181-13A01
• Cylinder cover gasket: 11233-01C00

Vehicle Fitments

• 1988 Suzuki LT250R
• 1989 Suzuki LT250R
• 1990 Suzuki LT250R
• 1991 Suzuki LT250R
• 1992 Suzuki LT250R
