TOP END PISTON KIT 88-92 SUZUKI LT R 250 68.5mm +1.5mm OVER VINTCO KTS28-1.5
  • TOP END PISTON KIT 88-92 SUZUKI LT R 250 68.5mm +1.5mm OVER VINTCO KTS28-1.5
  • TOP END PISTON KIT 88-92 SUZUKI LT R 250 68.5mm +1.5mm OVER VINTCO KTS28-1.5
  • TOP END PISTON KIT 88-92 SUZUKI LT R 250 68.5mm +1.5mm OVER VINTCO KTS28-1.5
  • TOP END PISTON KIT 88-92 SUZUKI LT R 250 68.5mm +1.5mm OVER VINTCO KTS28-1.5
TOP END PISTON KIT 88-92 SUZUKI LT R 250 68.5mm +1.5mm OVER VINTCO KTS28-1.5

TOP END PISTON KIT 88-92 SUZUKI LT R 250 68.5mm +1.5mm OVER VINTCO KTS28-1.5

£208.71 GBP
Taxes included. Shipping calculated at checkout.

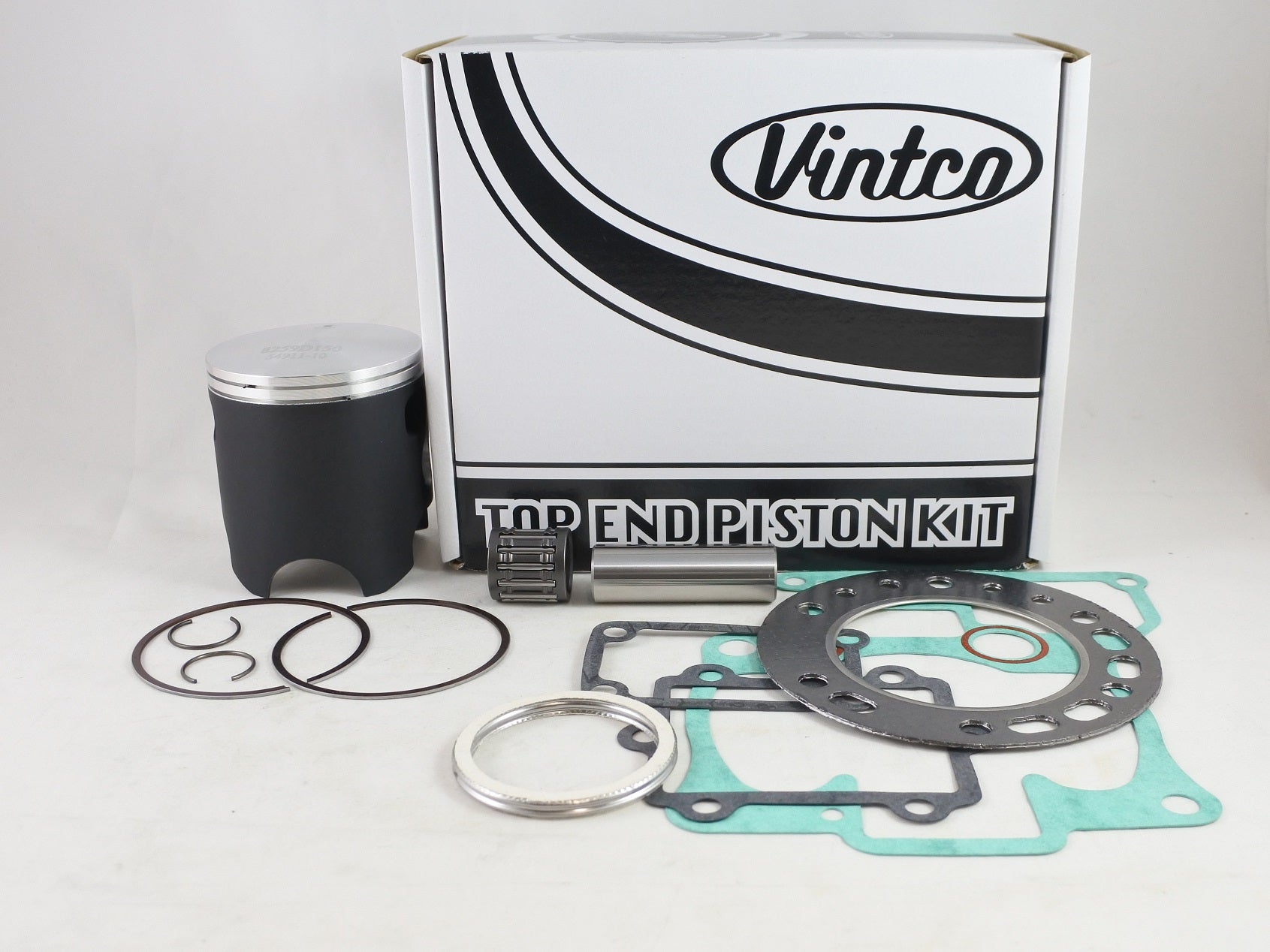

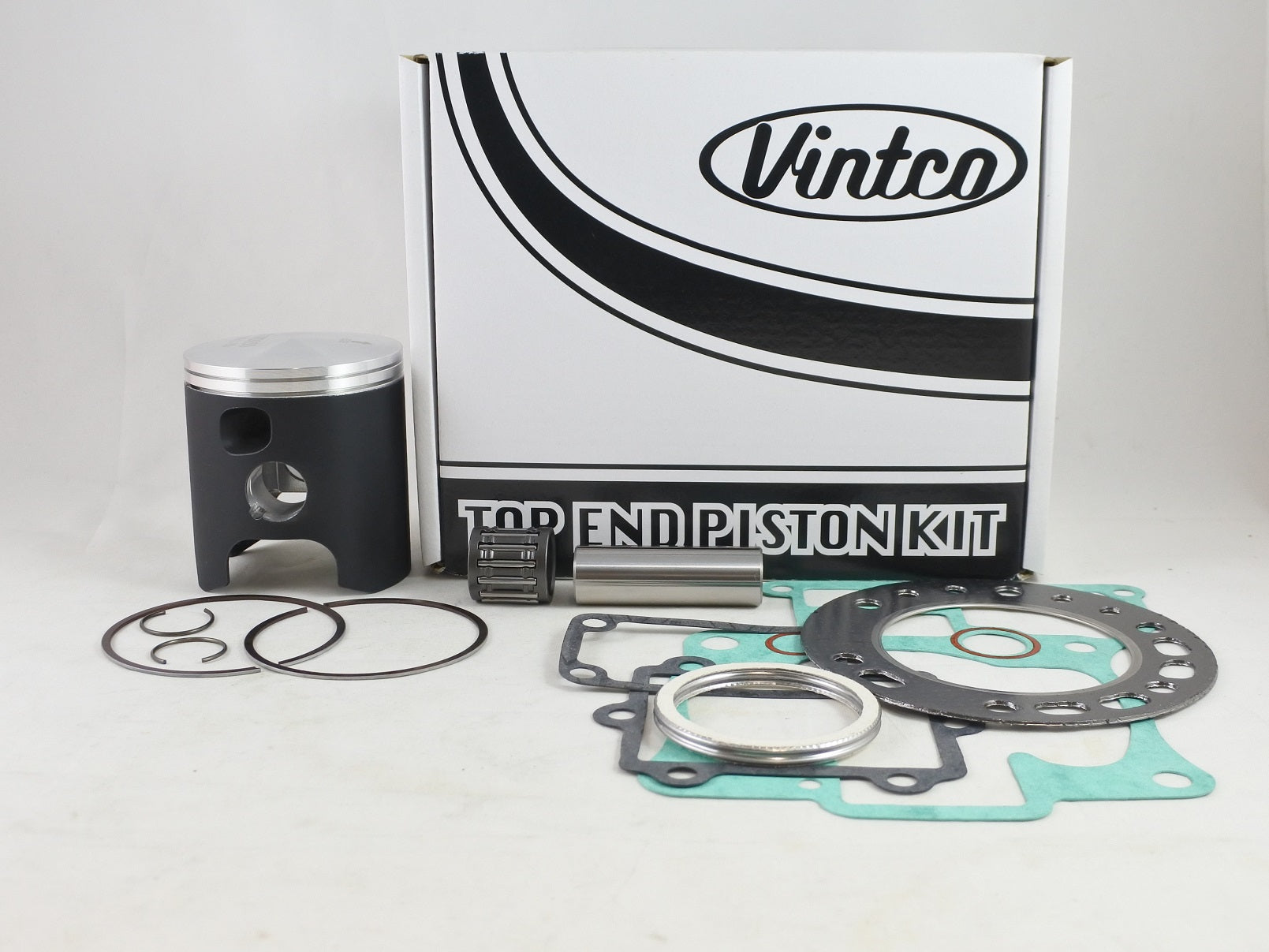

VintCo KTS28-1.5 is a top end piston kit for 1988-1992 Suzuki LT250R models, supplied with a forged piston, wrist pin bearing, and the required top-end gaskets. The piston is made in Germany and features an MOS2 coating for break-in. Kit pricing includes a 10% reduction compared with purchasing the included items individually.

Features

  • Complete top end kit
  • Forged piston
  • MOS2-coated piston for break-in
  • Made in Germany
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes cylinder cover gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTS28-1.5
  • Nominal piston size: 68.5 mm
  • Oversize: +1.5 mm
  • Piston diameter: 68.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 11141-01C01-H17
  • Cylinder Base Gasket: 11241-01C10
  • Intake Gasket: 13156-01C10
  • Exhaust Pipe Gasket: 14181-13A01
  • Cylinder Cover Gasket: 11233-01C00

Vehicle Fitments

  • 1988 Suzuki LT250R
  • 1989 Suzuki LT250R
  • 1990 Suzuki LT250R
  • 1991 Suzuki LT250R
  • 1992 Suzuki LT250R
