Top End Piston Kit 88-92 Suzuki Lt R 250 67.5mm 0.5mm Over Vintco KTS28-0.5
  • Top End Piston Kit 88-92 Suzuki Lt R 250 67.5mm 0.5mm Over Vintco KTS28-0.5
  • Top End Piston Kit 88-92 Suzuki Lt R 250 67.5mm 0.5mm Over Vintco KTS28-0.5
  • Top End Piston Kit 88-92 Suzuki Lt R 250 67.5mm 0.5mm Over Vintco KTS28-0.5
  • Top End Piston Kit 88-92 Suzuki Lt R 250 67.5mm 0.5mm Over Vintco KTS28-0.5
Top End Piston Kit 88-92 Suzuki Lt R 250 67.5mm 0.5mm Over Vintco KTS28-0.5

Top End Piston Kit 88-92 Suzuki Lt R 250 67.5mm 0.5mm Over Vintco KTS28-0.5

£208.71 GBP
Taxes included. Shipping calculated at checkout.

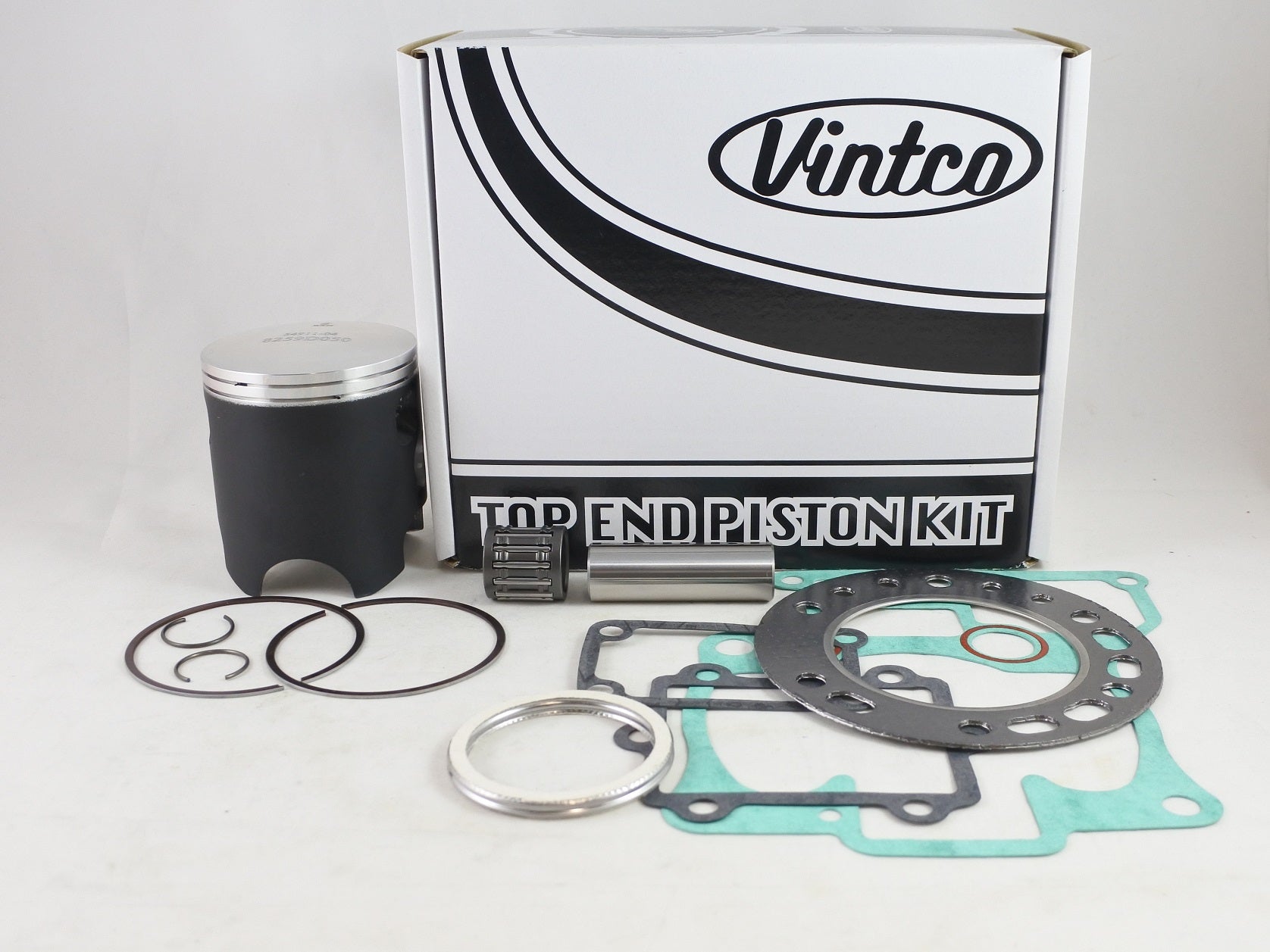

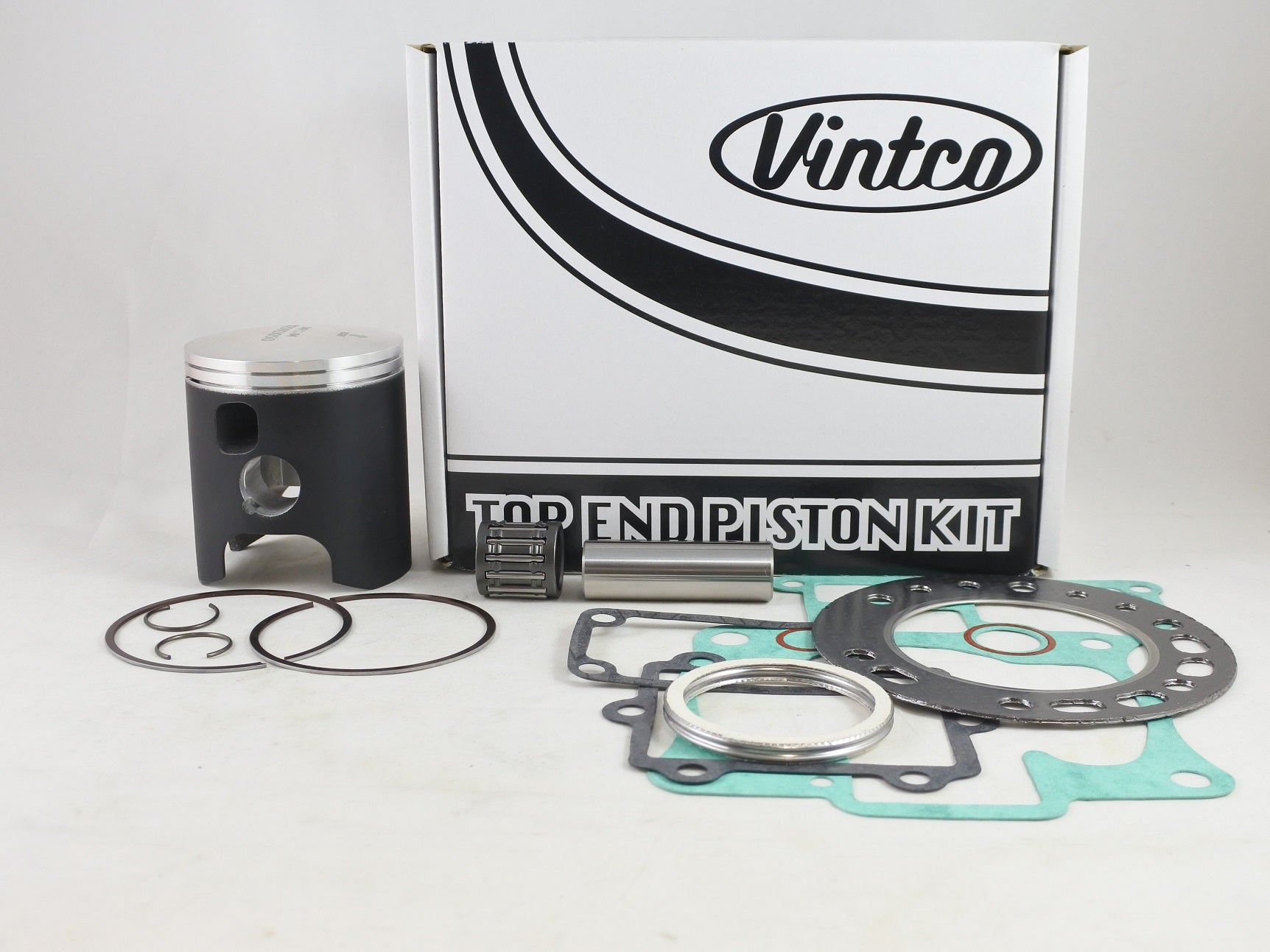

This top end piston kit is for 1988–1992 Suzuki LT250R models and provides a 0.5 mm oversize piston assembly with the related top-end gaskets and wrist pin bearing required for service work. The kit includes a forged piston manufactured in Germany with an MOS2 coating for break-in, and the kit price includes a 10% discount compared with purchasing the items individually.

Features

  • Complete top end kit for Suzuki LT250R applications
  • Includes forged piston
  • MOS2 coated for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes cylinder cover gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTS28-0.5
  • Piston size: 67.44 mm
  • Oversize: 0.5 mm over
  • Nominal size: 67.5 mm
  • Clearance: 0.06 mm
  • Piston manufacture origin: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 11141-01C01-H17
  • Cylinder Base Gasket: 11241-01C10
  • Intake Gasket: 13156-01C10
  • Exhaust Pipe Gasket: 14181-13A01
  • Cylinder Cover Gasket: 11233-01C00

Vehicle Fitments

  • 1988 Suzuki LT250R
  • 1989 Suzuki LT250R
  • 1990 Suzuki LT250R
  • 1991 Suzuki LT250R
  • 1992 Suzuki LT250R
