TOP END PISTON KIT 88-89 HONDA CR125 54.5mm 0.5mm OVER VINTCO KTH19-0.5

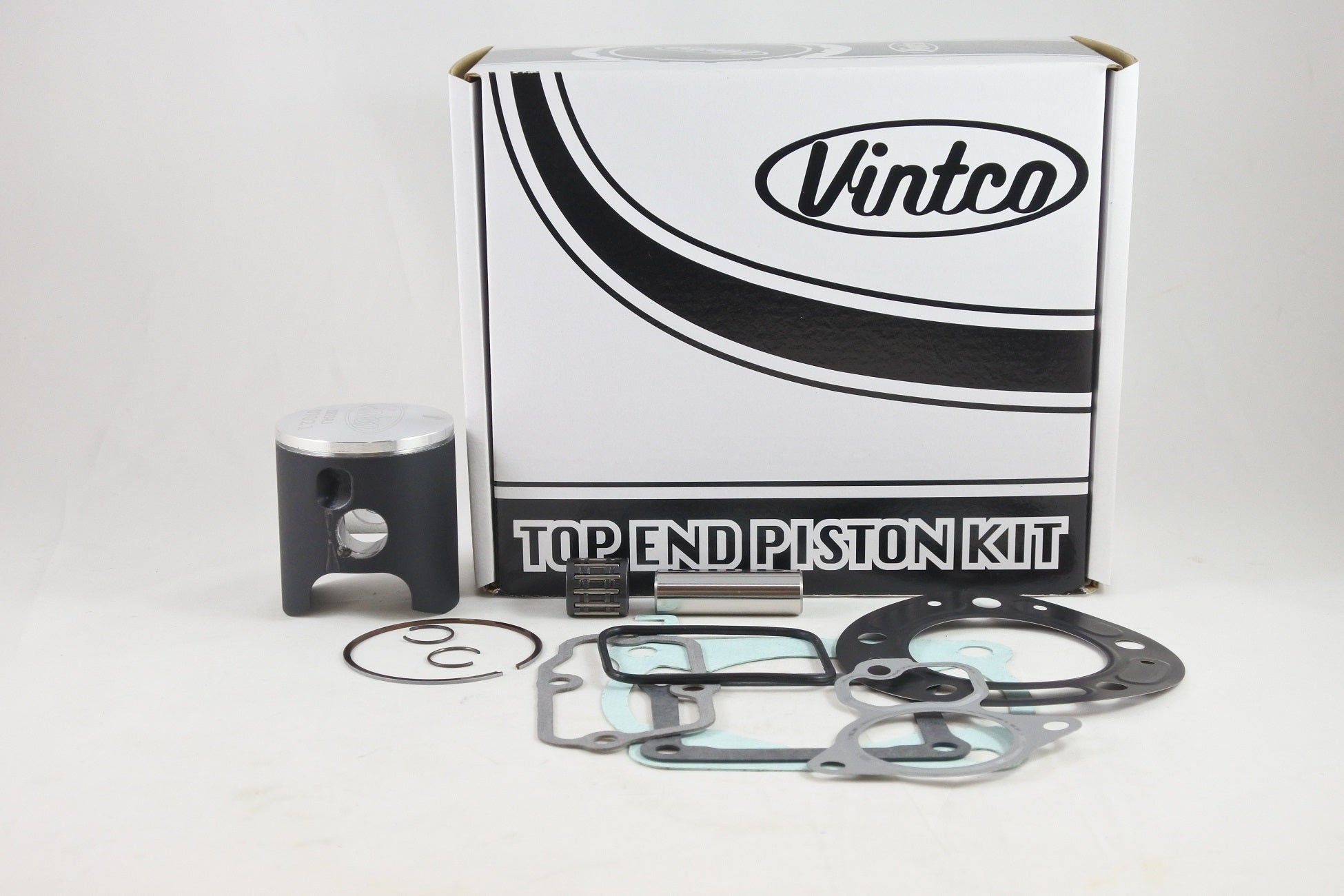

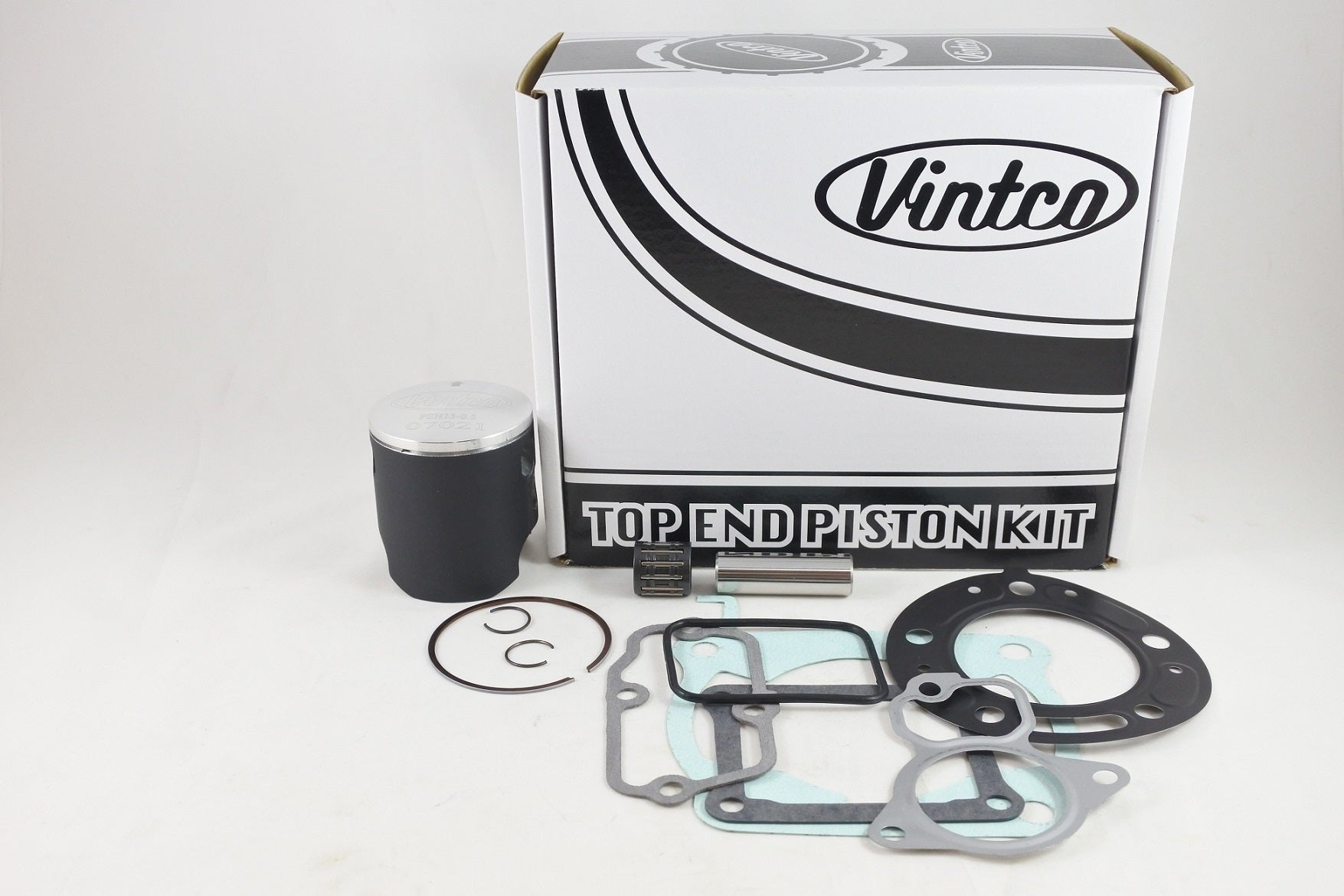

VintCo top end piston kit for the 1988-1989 Honda CR125 provides the parts required for a complete top-end rebuild in one package. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising the head gasket, base gasket, intake O-ring, exhaust pipe gasket, and sub-chamber gasket. Components are manufactured using modern materials and production techniques for OEM-equivalent or better fit and performance. This kit is the 54.5 mm, +0.5 mm over version and is priced at 10% less than purchasing the components individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Includes head gasket, base gasket, intake O-ring, exhaust pipe gasket and sub-chamber gasket
• Built for OEM-equivalent or better fit and performance
• OEM part number references provided for exact fitment
• Kit price includes a 10% saving compared with buying the parts individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH19-0.5
• Size designation: 54.5 mm
• Oversize: +0.5 mm
• Piston diameter: 54.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2 break-in coating

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KZ4-701
• Base gasket: 12191-KS6-P00
• Intake O-ring: 91301-KS6-003
• Exhaust pipe gasket: 18314-KZ4-000
• Sub-chamber gasket: 18339-KS6-701

Vehicle Fitments

• 1988 Honda CR125
• 1989 Honda CR125
