Top End Piston Kit 88-88 Yamaha YZ 125 56mm Standard Vintco KTY67-00

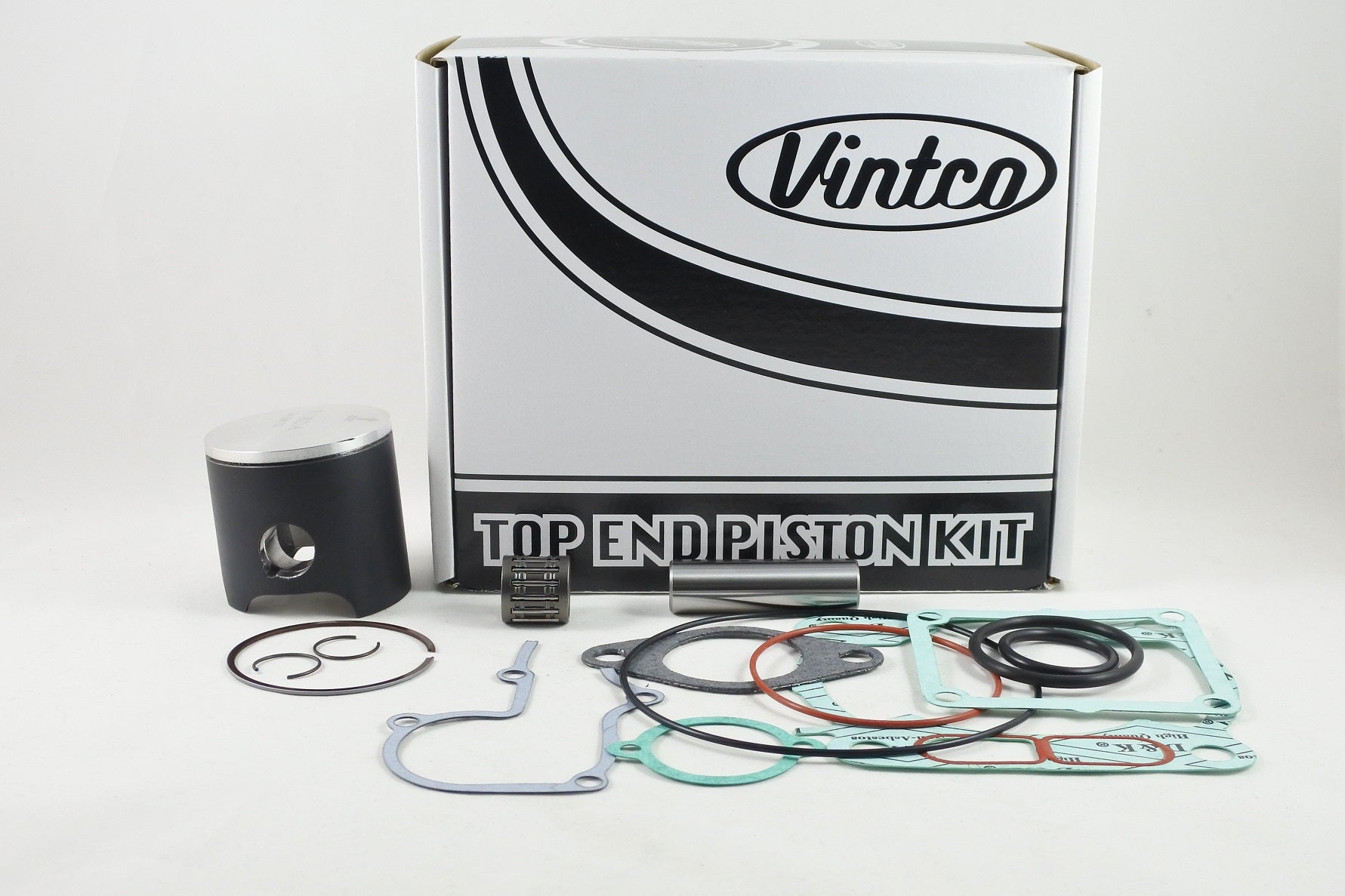

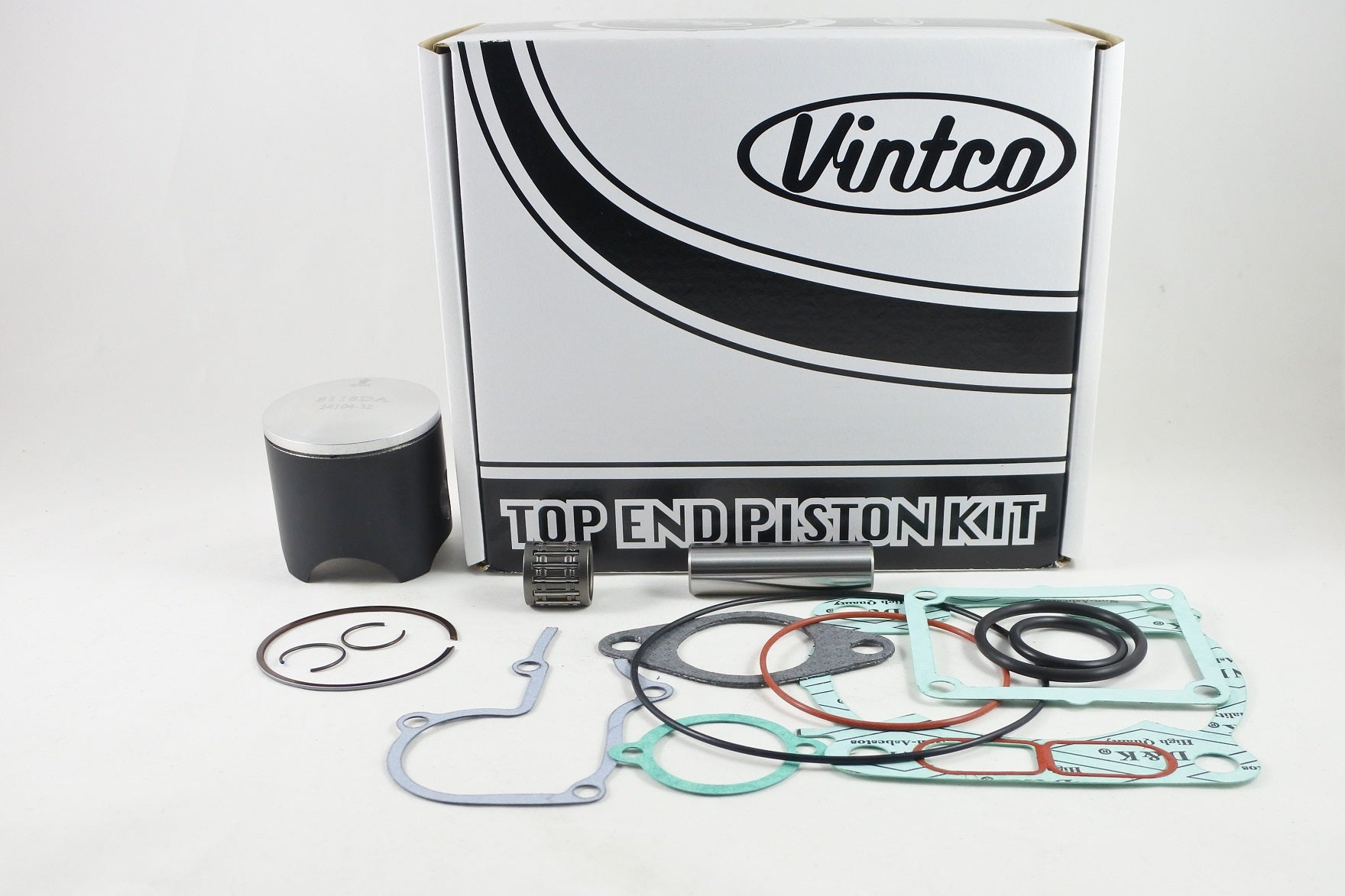

VintCo KTY67-00 is a complete top end piston kit for the 1988 Yamaha YZ125, supplied in a 56 mm standard size for top-end rebuild work. The kit includes the piston assembly, wrist pin bearing and a full top-end gasket set, and is manufactured using modern materials and production methods for OEM-comparable fitment and performance.

Features

• Complete top end rebuild kit
• Suitable for 1988 Yamaha YZ125 models
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gaskets
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gaskets
• Includes O-ring
• Includes holder gasket
• Includes power valve gasket
• Priced at 10% less than purchasing the components individually

Specifications

• VintCo Part Number: KTY67-00
• Product type: Top End Piston Kit
• Piston size: 56 mm standard
• Standard piston measurement: 55.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Head gasket: 93211-07720-00
• Head gasket: 93210-65721-00
• Base gasket: 1LX-11351-10-00
• Intake gasket: 80L-13621-01-00
• Exhaust pipe gasket: 1LX-14613-01-00
• Exhaust pipe gasket: 93210-42728-00
• O-ring: 9210-270A8-00
• Holder gasket: 5X4-1131N-10-00
• Power valve gasket: 2VN-11993-01-00

Vehicle Fitments

• 1988 Yamaha YZ125
