Top End Piston Kit 88-88 Suzuki RM 125 54.5mm 0.5mm Over Vintco KTS20-0.5

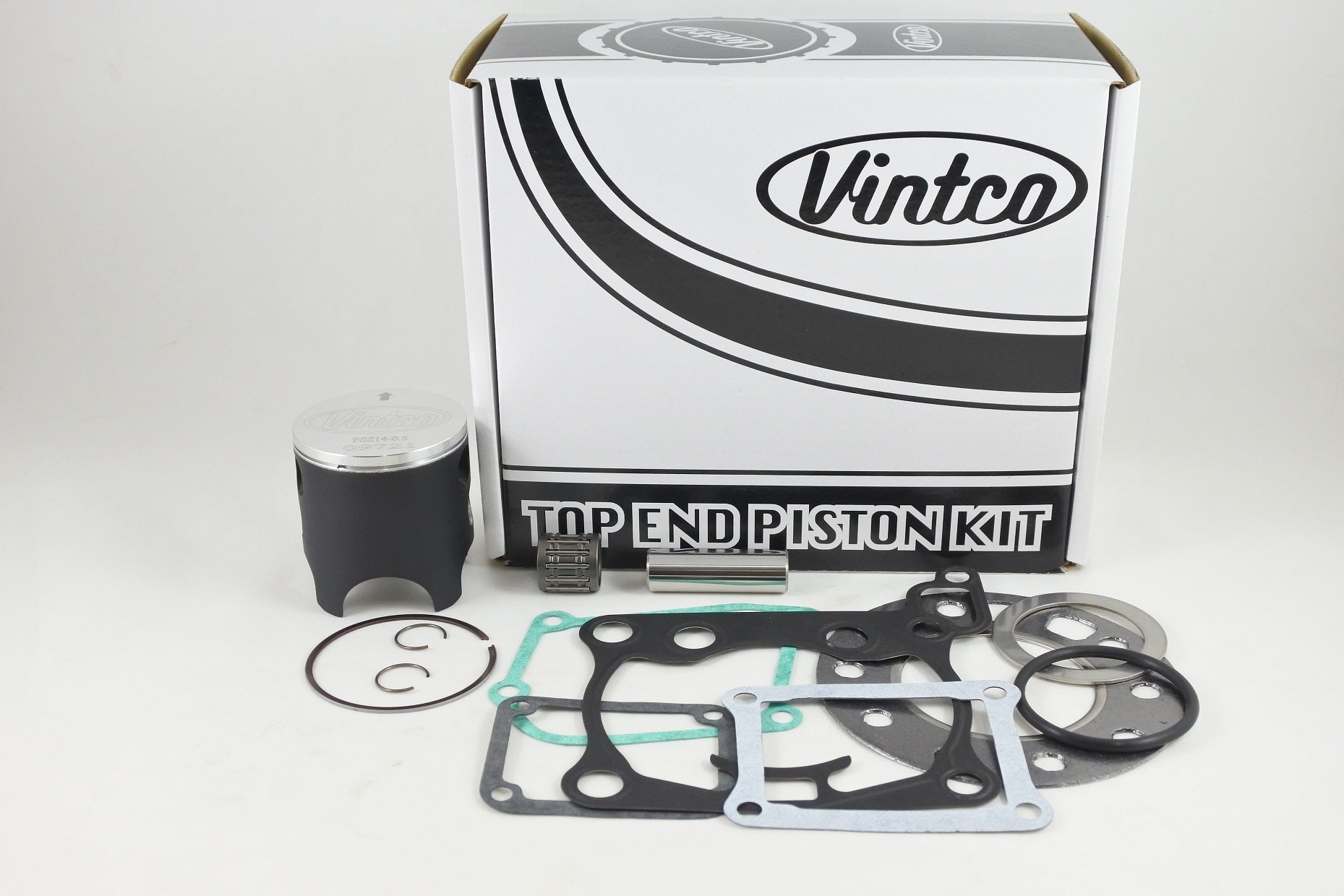

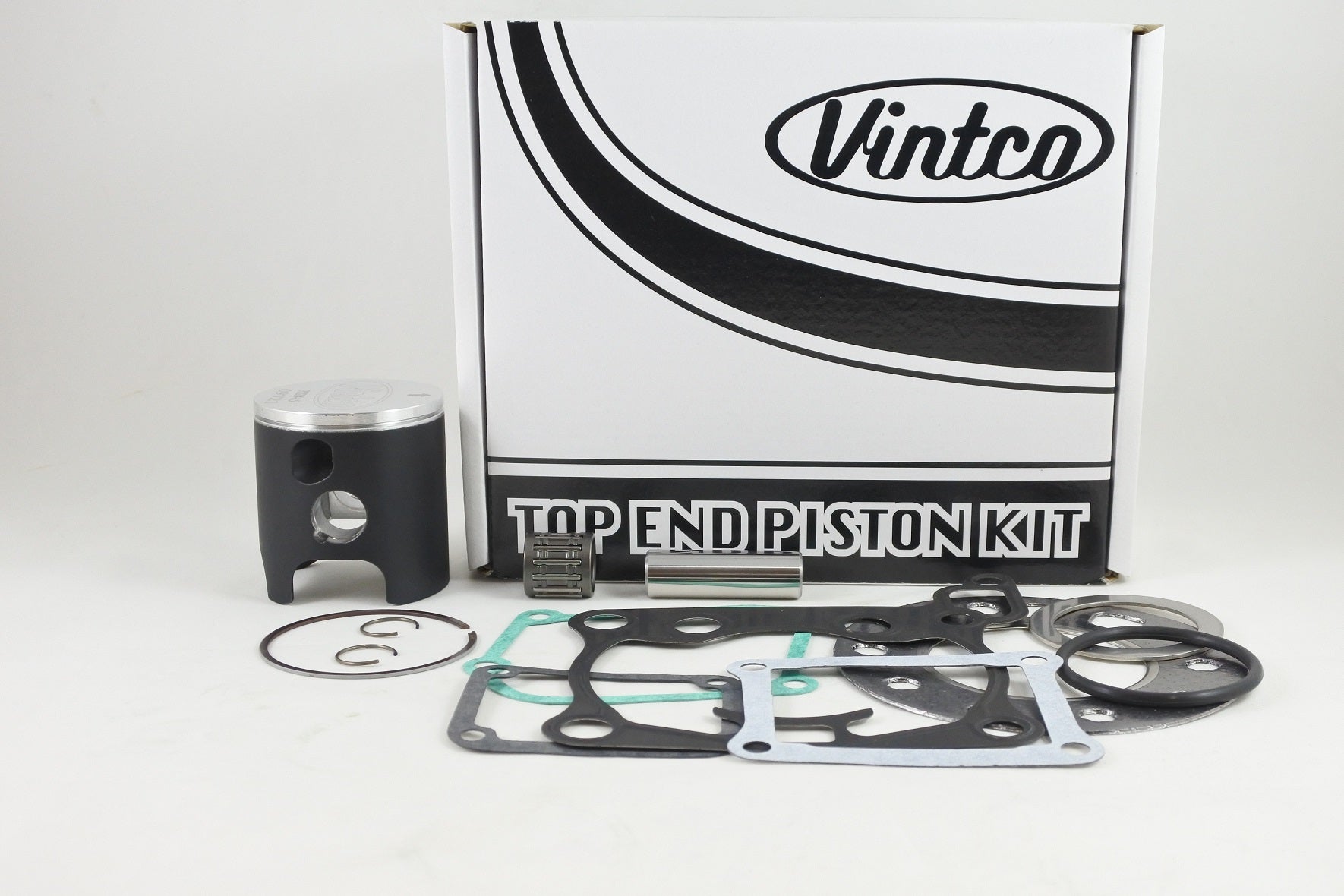

VintCo KTS20-0.5 is a complete top end piston kit for the 1988 Suzuki RM125, supplied for a nominal 54.5 mm bore application at +0.5 mm oversize. The kit includes the piston, rings, pin, clips, top end bearing and a full top-end gasket set for a straightforward rebuild, and is manufactured using modern materials and production methods for OEM-equivalent fitment and performance. Kit pricing is 10% lower than purchasing the included components separately, and additional size options are available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Suited to 1988 Suzuki RM125 applications
• OEM part numbers provided for fitment verification
• Additional size options available
• Kit pricing is 10% lower than buying the included items separately

Specifications

• VintCo Part Number: KTS20-0.5
• Product type: Top End Piston Kit
• Nominal size: 54.5 mm
• Oversize: +0.5 mm
• Piston diameter: 54.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany
• Wrist pin bearing size: 15 x 19 x 19.5 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Cover Gasket: 11141-01B32
• Cylinder Base Gasket: 11241-01B20-H17
• Reed Valve Gasket: 13156-03D10
• Cylinder Cover Gasket: 11233-01B30-H17
• Cylinder Cover Gasket: 11238-01B30-H17
• Exhaust Pipe Gasket: 14171-01B21
• Exhaust Pipe Gasket: 14172-01B21

Vehicle Fitments

• 1988 Suzuki RM125
