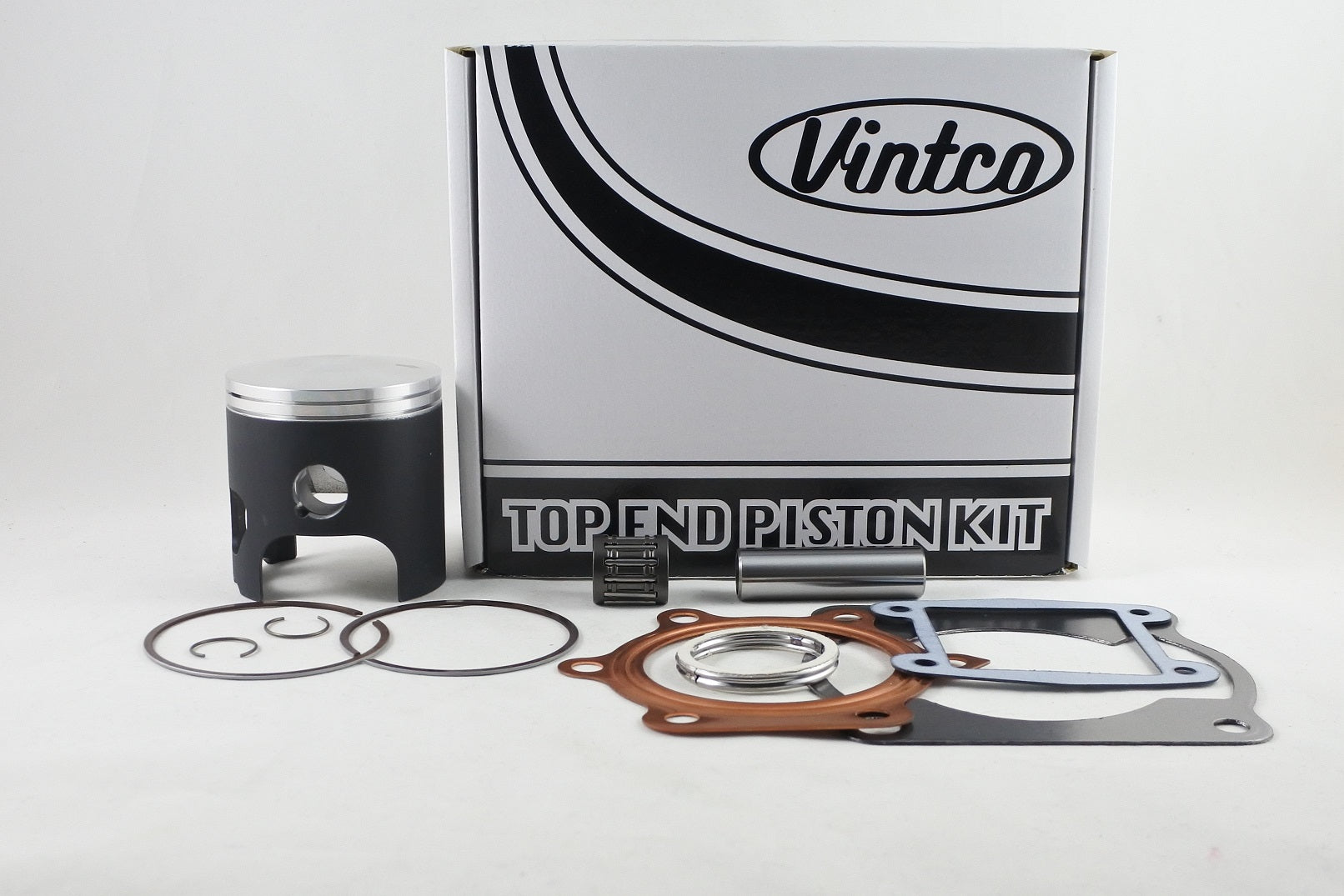

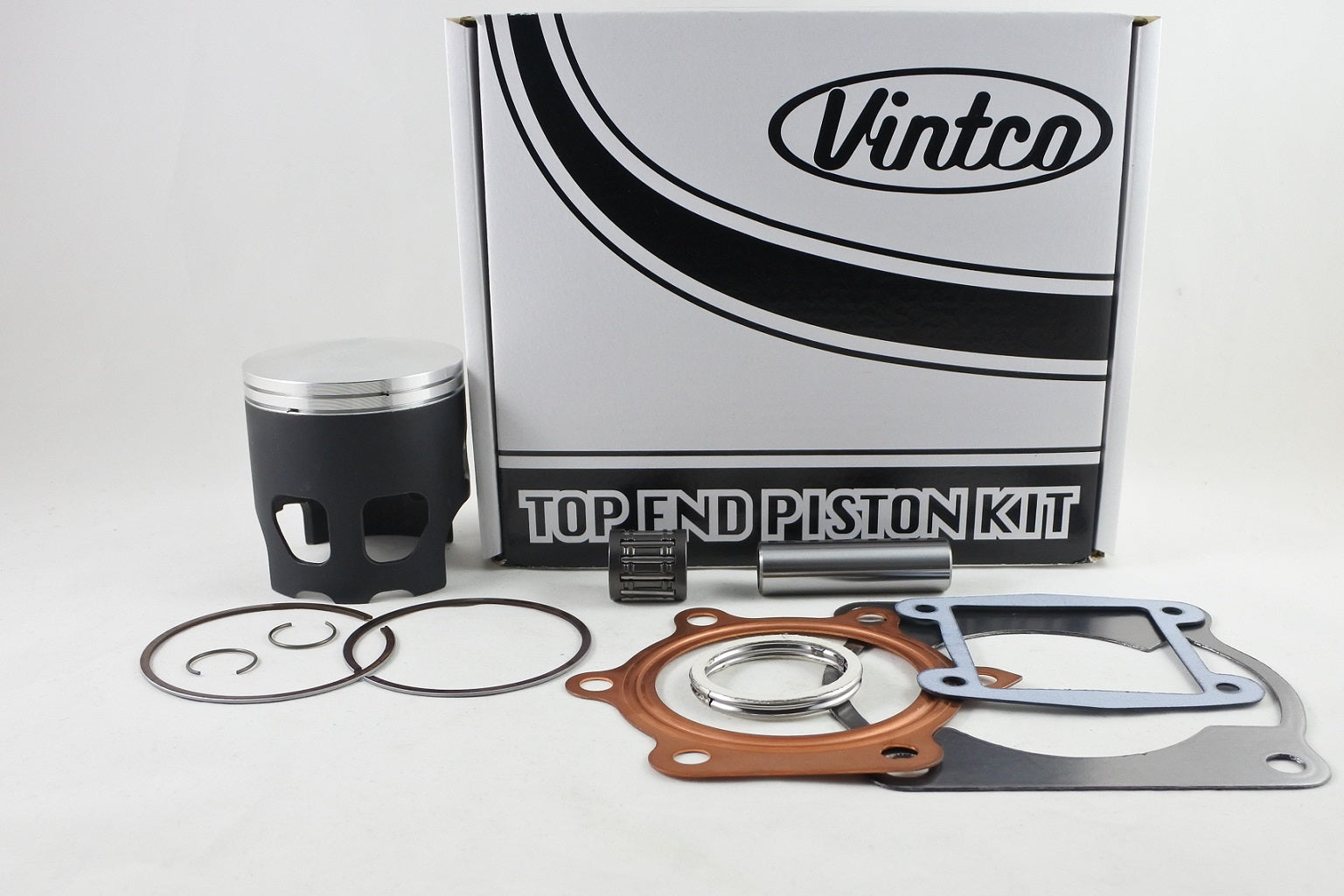

Top End Piston Kit 88-06 Yamaha Yfs Blaster 200 67mm Over Vintco KTY35-1.0

This top end piston kit is for the 1988-2006 Yamaha YFS200 Blaster and is supplied as a complete package for top-end service work. The kit price includes a 10% discount compared with purchasing the individual items separately, and it includes the piston, head gasket, base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing.

Features

• Complete top end piston kit
• Supplied with piston for top-end rebuild work
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• MOS2-coated piston for running-in

Specifications

• VintCo Part Number: KTY35-1.0
• Piston type: Forged
• Country of manufacture: Germany
• Oversize: 1.0 mm
• Piston size: 66.94 mm
• Clearance: 0.06 mm
• Nominal bore size: 67 mm

Cross-Reference OEM Part Numbers

• Head gasket: 2XJ-11181-00-00
• Base gasket: 3JM-11351-02-00
• Intake gasket: 3JM-13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

• 1988 Yamaha YFS200
• 1989 Yamaha YFS200
• 1990 Yamaha YFS200
• 1991 Yamaha YFS200
• 1992 Yamaha YFS200
• 1993 Yamaha YFS200
• 1994 Yamaha YFS200
• 1995 Yamaha YFS200
• 1996 Yamaha YFS200
• 1997 Yamaha YFS200
• 1998 Yamaha YFS200
• 1999 Yamaha YFS200
• 2000 Yamaha YFS200
• 2001 Yamaha YFS200
• 2002 Yamaha YFS200
• 2003 Yamaha YFS200
• 2004 Yamaha YFS200
• 2005 Yamaha YFS200
• 2006 Yamaha YFS200
