TOP END PISTON KIT 88-06 YAMAHA YFS BLASTER 200 67.5mm 1.5mm OVER VINTCO KTY35-1.5

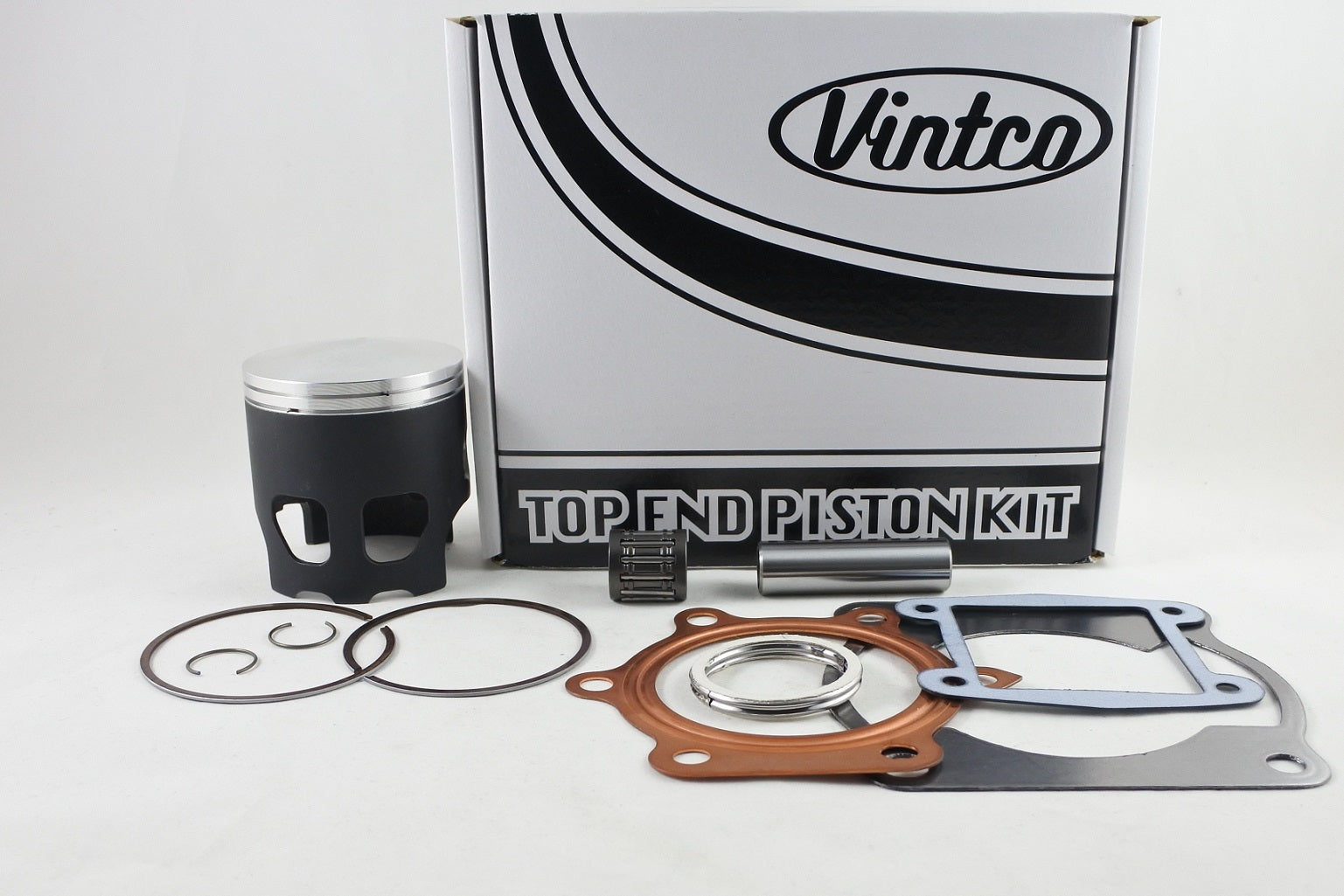

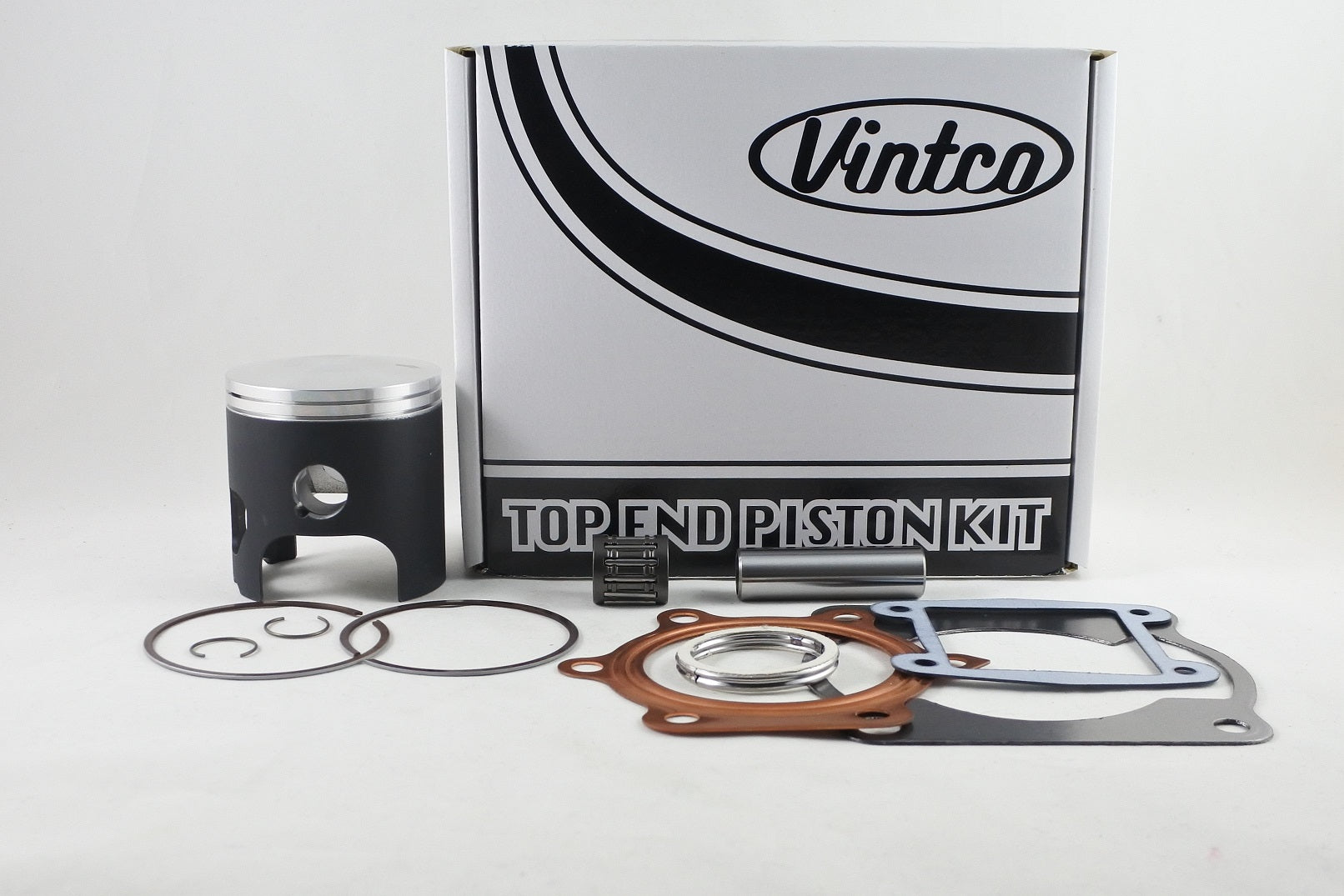

This top end piston kit is designed for 1988-2006 Yamaha YFS200 Blaster 200 models and includes the main components required for a top end rebuild. The kit contains a forged piston, head gasket, base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing, with a piston size of 67.5 mm in a 1.5 mm oversize configuration.

Features

• Complete top end piston kit for Yamaha YFS200 Blaster 200 models
• Includes forged piston
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• MOS2-coated piston for running-in
• Kit price includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTY35-1.5
• Piston size: 67.5 mm
• Oversize: 1.5 mm
• Piston measurement: 67.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 2XJ-11181-00-00
• Base gasket: 3JM-11351-02-00
• Intake gasket: 3JM-13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

• 1988 Yamaha YFS200
• 1989 Yamaha YFS200
• 1990 Yamaha YFS200
• 1991 Yamaha YFS200
• 1992 Yamaha YFS200
• 1993 Yamaha YFS200
• 1994 Yamaha YFS200
• 1995 Yamaha YFS200
• 1996 Yamaha YFS200
• 1997 Yamaha YFS200
• 1998 Yamaha YFS200
• 1999 Yamaha YFS200
• 2000 Yamaha YFS200
• 2001 Yamaha YFS200
• 2002 Yamaha YFS200
• 2003 Yamaha YFS200
• 2004 Yamaha YFS200
• 2005 Yamaha YFS200
• 2006 Yamaha YFS200
